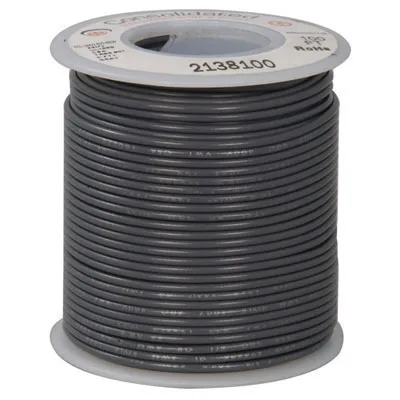

22 AWG PVC Insulated Stranded Tinned Copper Wire, Gray

Mil-W-16878/1 Type "B"

Features

  • Consolidated Electronic Wire & Cable PN: 9306-8
  • MIL Type: Type "B" MIL-W-16878/1
  • Gauge: 22 AWG
  • Strands: 19 x 34 Tin Copper Wire
  • Nominal Insulation Wall: 0.010 in.
  • Insulation Type: PVC
  • Nominal O.D.: 0.051 in.
  • Color: Gray
  • Insulation Temperature: -50° to +105 °C
  • Voltage: 600 V
  • Agency Approvals: Mil-W-16878/1, RoHS Compliant (2002/95/EC)

Product Construction

Conductor:
  • 22 AWG Annealed Stranded Tinned Copper Wire Conductor per ASTM B-33

    Insulation:
  • Mil-W-16878/1, Type "B" color coded PVC Insulation
  • Temperature -50°C to +105°C

    Voltage Rating:
  • Mil-W-16878/1, Type "B" 600 volts

    Applications:
  • Hook-Up wire
  • Pont to point wiring
  • Internal wiring of meters, panels, electrical and electronic equipment

    Packaging:
  • 1000 ft. spools

    • Product Identification

    Additional Feature:Made in USA
    Product Type:Stranded Hook-up Wire

    Compliance

    Agency Approvals:1 Type "B", MIL-W-16878

    Dimensions & Appearance

    Color:Gray
    Length:1000 ft.

    Packaging

    Package:Reel

    Features

    Number of Conductors:1
    Insulation Type:PVC
    Conductor Strand:19 x 34
    Wire Gauge (AWG):22
    Voltage Rating:600 V
    ,
