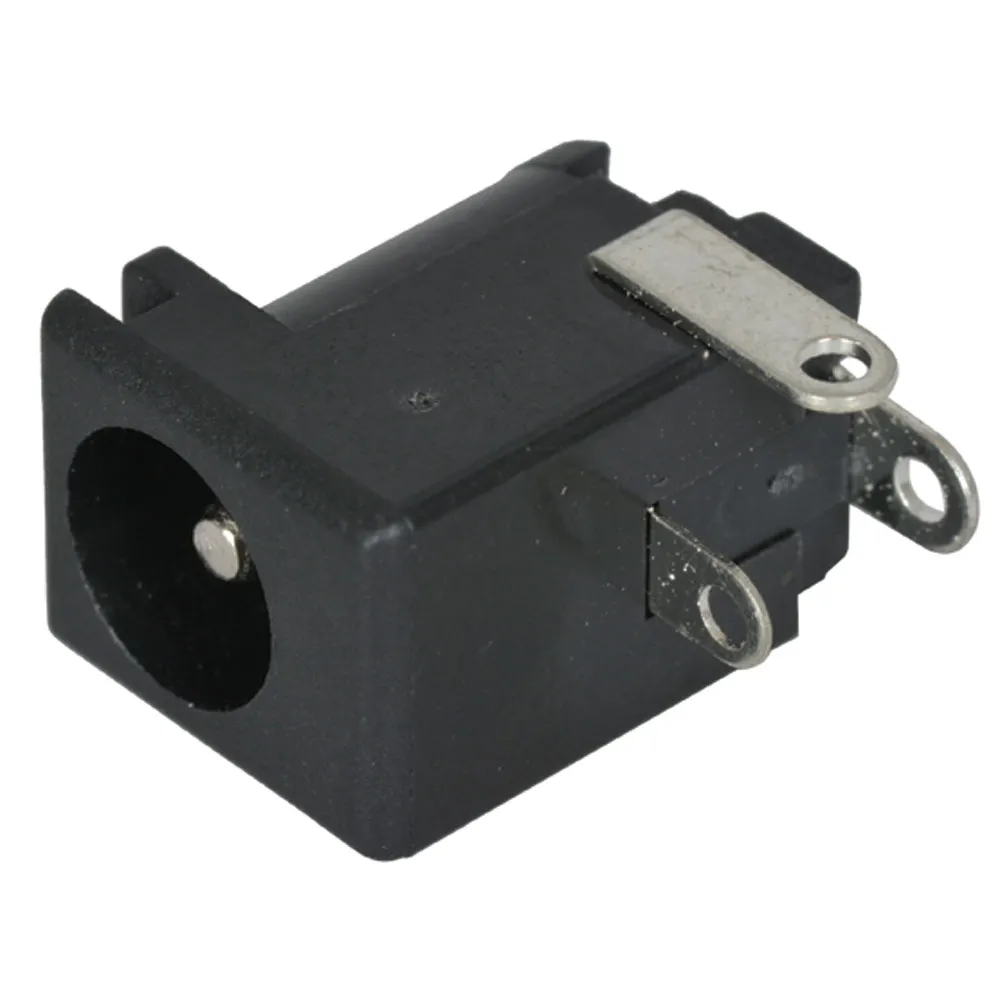

2.1mm Male DC Power Jack


Features:

  • 2.1mm size
  • PCB mount
  • Solder eyelet terminal
  • Dimensions: 10.9mm x 9mm x 14.5mm
  • Soldering heat: 255°C ± 5°C (491°F)
  • Ratings: 12VDC @ 2A max., 100VAC @ 1A max.

    • Product Identification

    Product Type:DC Power Jack
    Manufacturer Series:ValuePro

    Dimensions & Appearance

    Body Orientation:Right Angle, Square
    Mounting Type:Panel Mount
    Body/Shell Style:Jack

    Features

    Pin/Inner Diameter (mm):2.1mm
    Voltage Rating:12 VDC
    Current Rating:2 A
    Termination:Solder Lug
    Outer Diameter:5.5mm
    ,
