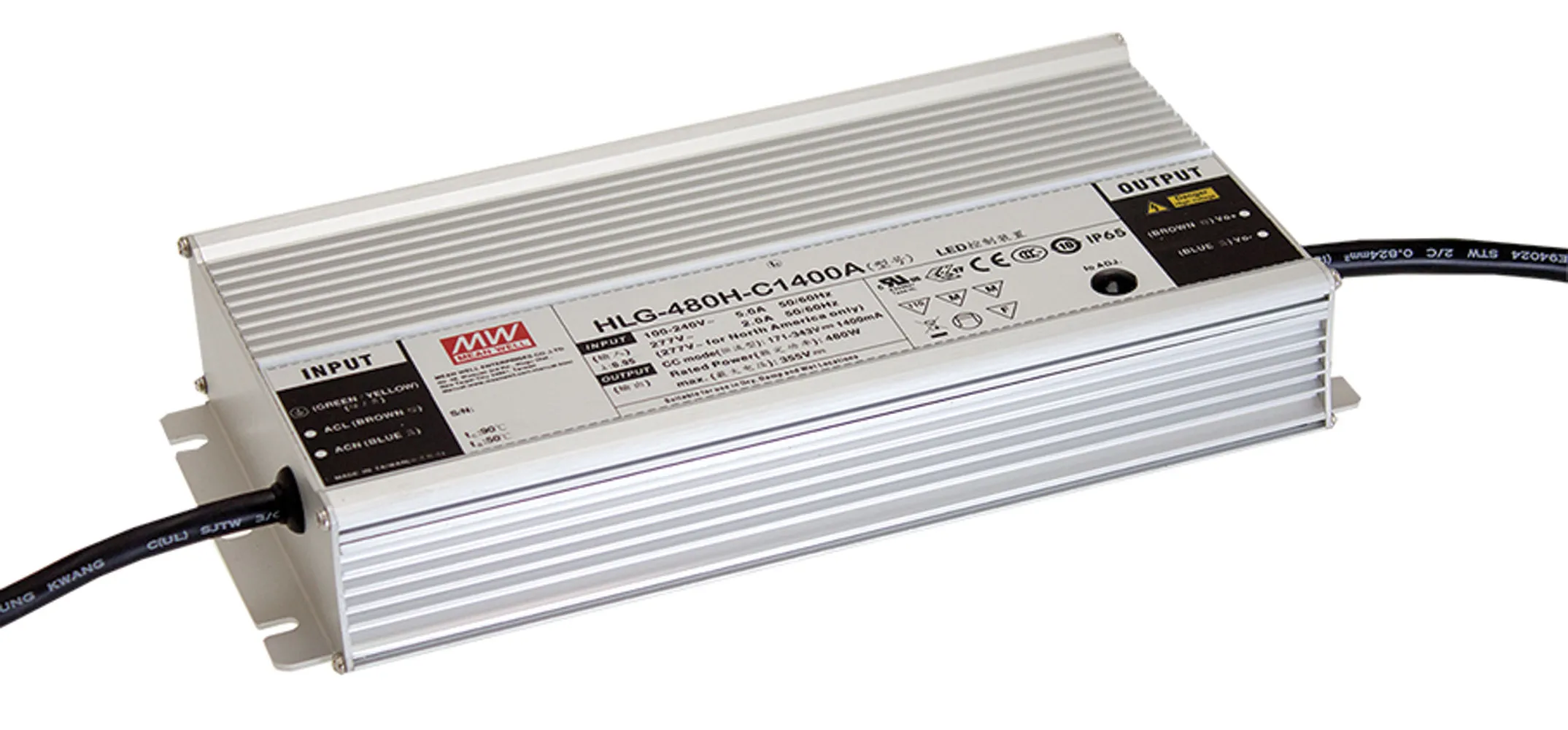

2.1A 114-229V 481W Constant Current Mode Enclosed Switching LED Driver Model A

2100 milliamps @ 114 to 229 Volts DC

Features

  • Model A - Current output is adjustable through a built-in potentiometer, and environment adaptiveness
  • Constant current mode output
  • Metal housing with Class I design
  • Built-in active PFC function
  • Environment-adaptive driving capability
  • IP65 design for indoor or outdoor installations
  • Typical lifetime: >62,000 hours
  • 7 year warranty

Specifications

  • Universal AC input range: 90 to 305 VAC @ 47 to 63 Hz
  • Rated current: 2.1 amps
  • Rated power: 481 watts
  • Constant current region: 114-229 VDC
  • Current adjustment range: 1050 to 2100 mA (via built-in potentiometer)
  • Efficiency: 95%
  • Agency approvals: UL, CUL, CCC, CB, CE

Applications

  • LED harbor lighting
  • LED greenhouse lighting
  • LED stadium lighting
  • LED mining lighting
  • Type "HL" for use in Class I, Division 2 hazardous (Classified) locations

Overview

Product Identification

Manufacturer Series:HLG-480H-C
Product Type:Auto Switching SMPS

Compliance

Agency Approvals:UL, CUL, CB, CE, EN, ENEC, EAC, CCC

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.72 in.
Length:10.31 in.
Width:4.92 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 305 VAC
Maximum Input Current:5 A

Output

Number of Outputs:1
Output Connector Type:Stripped and Tinned
Output Voltage:See Output Range
Output Current:2.10 A
Output Range:114 VDC to 229 VDC

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP65
Efficiency:95%
Power Rating:481 W
,
