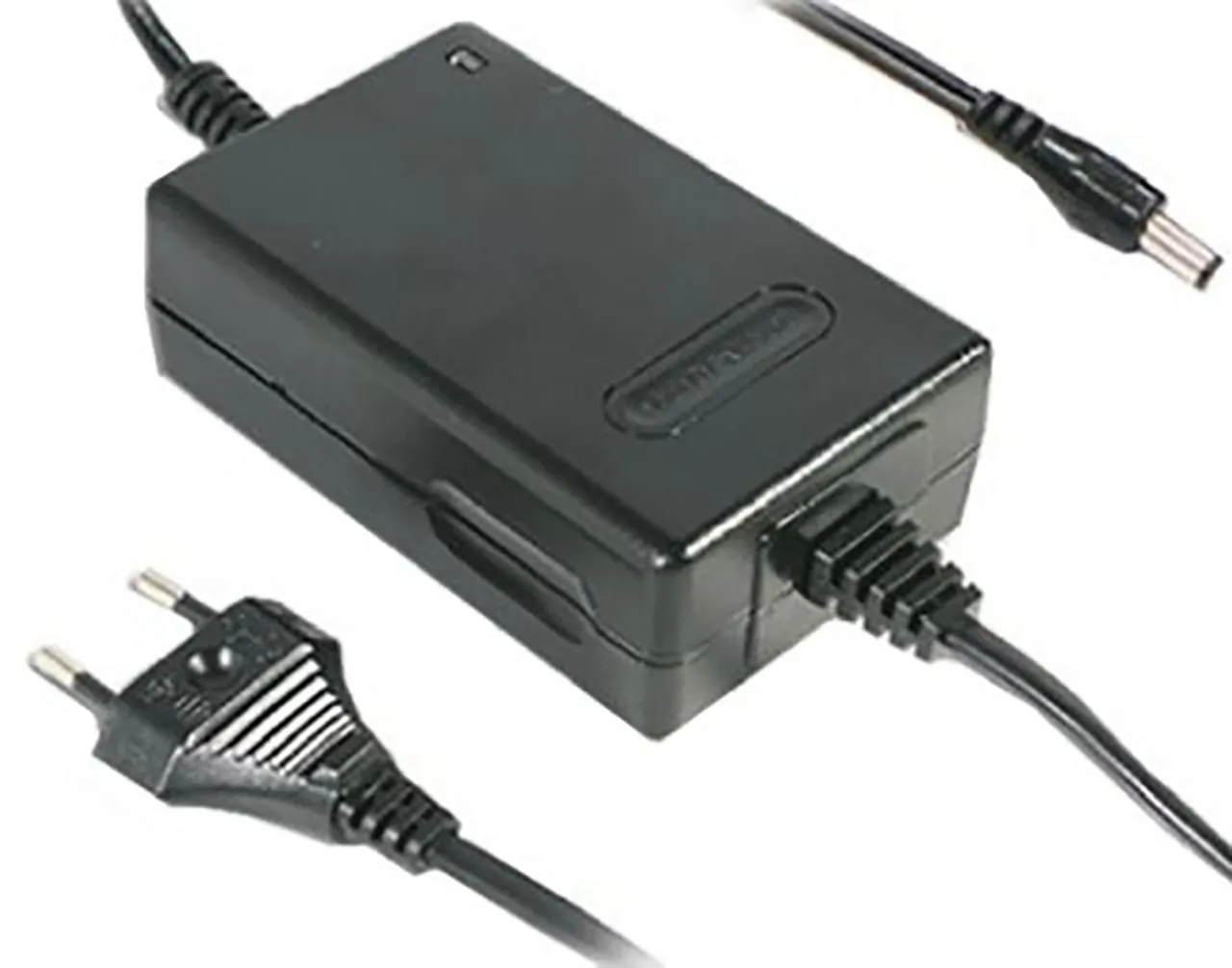

21.6W 7.2V 3A Power Adapter with Battery Charger Function Euro Plug Input

Features

  • Charger for lead-acid batteries (flooded, Gel and AGM) and Li-Ion batteries (lithium iron and lithium manganese) (see Note. 1 on datasheet)
  • Universal AC input, Full range
  • With EURO type 6 foot input power cord (2-pin)
  • Class II power (without earth pin)
  • No load power consumption <1W
  • Constant current and voltage (CC,CV mode)
  • Suitable for continuous load
  • For high surge current equipment
  • Protections: Short circuit, overload, over voltage, over temperature
  • 2 color LED indicates loading status
  • Fully enclosed plastic case
  • High reliability
  • Agency Approvals: TUV, EAC, CB, FCC, CE, UKCA
  • 2 year warranty

Output Specifications

  • Safety Model No.: GC30E-11
  • DC Voltage Set at: 7.2 V
  • Rated Current: 3 A
  • Current Range: 0 to 3 A
  • Charging Voltage Range: 6.5 VDC to 7.5 VDC
  • Output Plug: 2.1mm x 5.5mm (IDxOD) cylindrical female barrel plug

    • Product Identification

    Additional Feature:For Lead-Acid, For Li-Ion
    Product Type:Power Supply with Charger
    Manufacturer Series:GC30E

    Compliance

    Agency Approvals: CB, CE, EAC, FCC, UKCA, TUV

    Dimensions & Appearance

    Color:Black
    Height:1.42 in.
    Width:2.64 in.
    Length:4.25 in.

    Operating conditions

    Minimum Operating Temperature:0°C
    Maximum Operating Temperature:50°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:90 VAC to 264 VAC
    Maximum Input Current:0.7 A

    Output

    Output Connector Diameters:2.1mm x 5.5mm
    Output Range:6.5 VDC to 7.5 VDC
    Output Voltage:7.2 VDC
    Output Connector Type:Cylindrical Female
    Output Current:3 A

    Features

    PFC Function:No
    AC Power Cord:EURO 2-Pin Plug
    Efficiency:74%
    Power Rating:21.6 W
    ,
