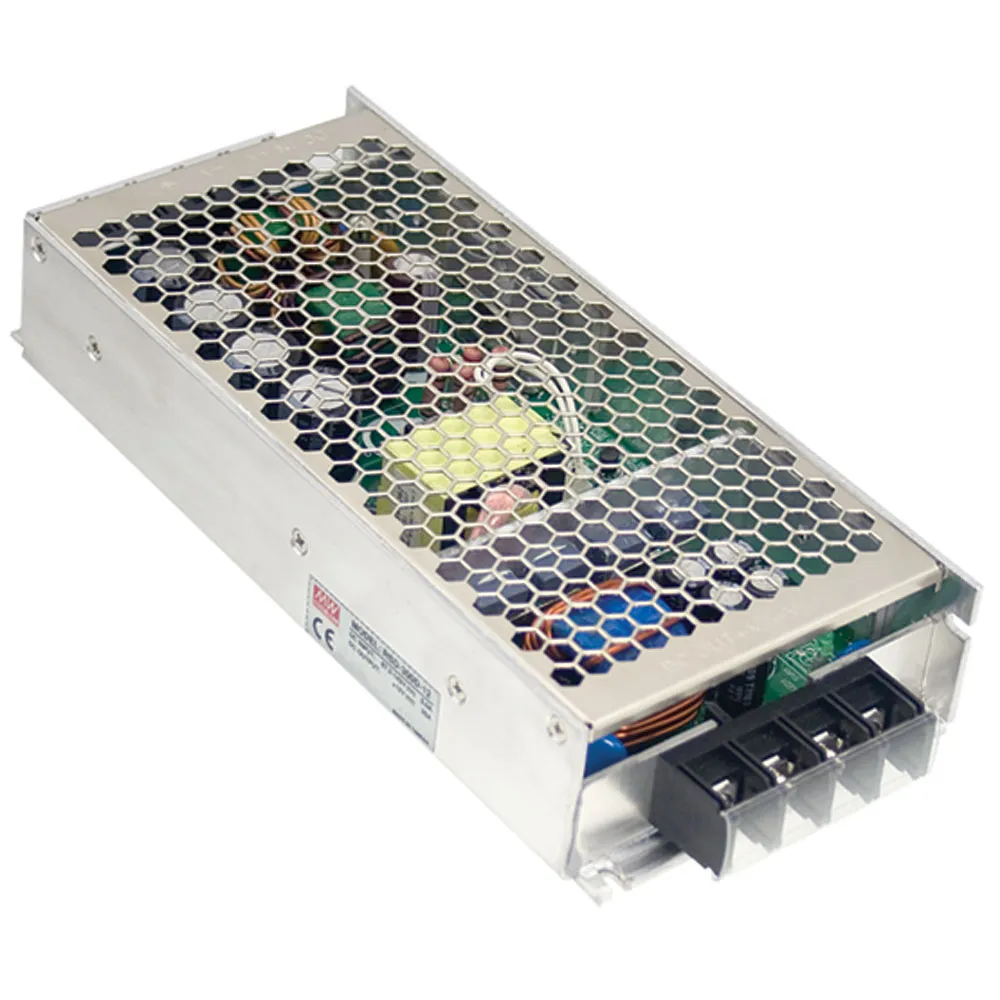

210 Watts 5V 42A Railway Single Output DC-DC Converter Time-Lag 10A 250V Fuse

Jameco Part #:

Manufacturer #:

Product Price:

$135.300

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$135.300	-	-
5+	$128.900	6.40	4.73%
10+	$123.200	12.10	8.94%
20+	$119.600	15.70	11.6%

Compliance to EN50155 and EN45545-2 railway standard
2:1 wide input range
Protections: Short circuit / Overload / Over voltage / Over temperature/ Input reverse polarity
4000 VDC I/O isolation
Half encapsulated
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile 40mm
All using 105° long life electrolytic capacitors
LED indicator for power on
100% full load burn-in test
3 year warranty

Product Identification

Product Type:Railway Single Output DC to DC Converter SMPS

Manufacturer Series:RSD-300

Agency Approvals:UL, CUL, CB, CE, EN, EAC

Color:Silver

Height:1.6 in.

Width:3.8 in.

Length:8.5 in.

Minimum Operating Temperature:-40°C

Maximum Operating Temperature:55°C

Package:Railway Enclosed

Input Voltage:72 VDC

Input Voltage Range:50.4 VDC to 93.6 VDC

Maximum Input Current:3.25 A

Number of Outputs:1

Output Voltage:5 VDC

Output Connector Type:Screw Terminal Block

Additional Output Voltages (VDC):N/A

Output Current:42 A

Efficiency:89%

Power Rating:210 W
