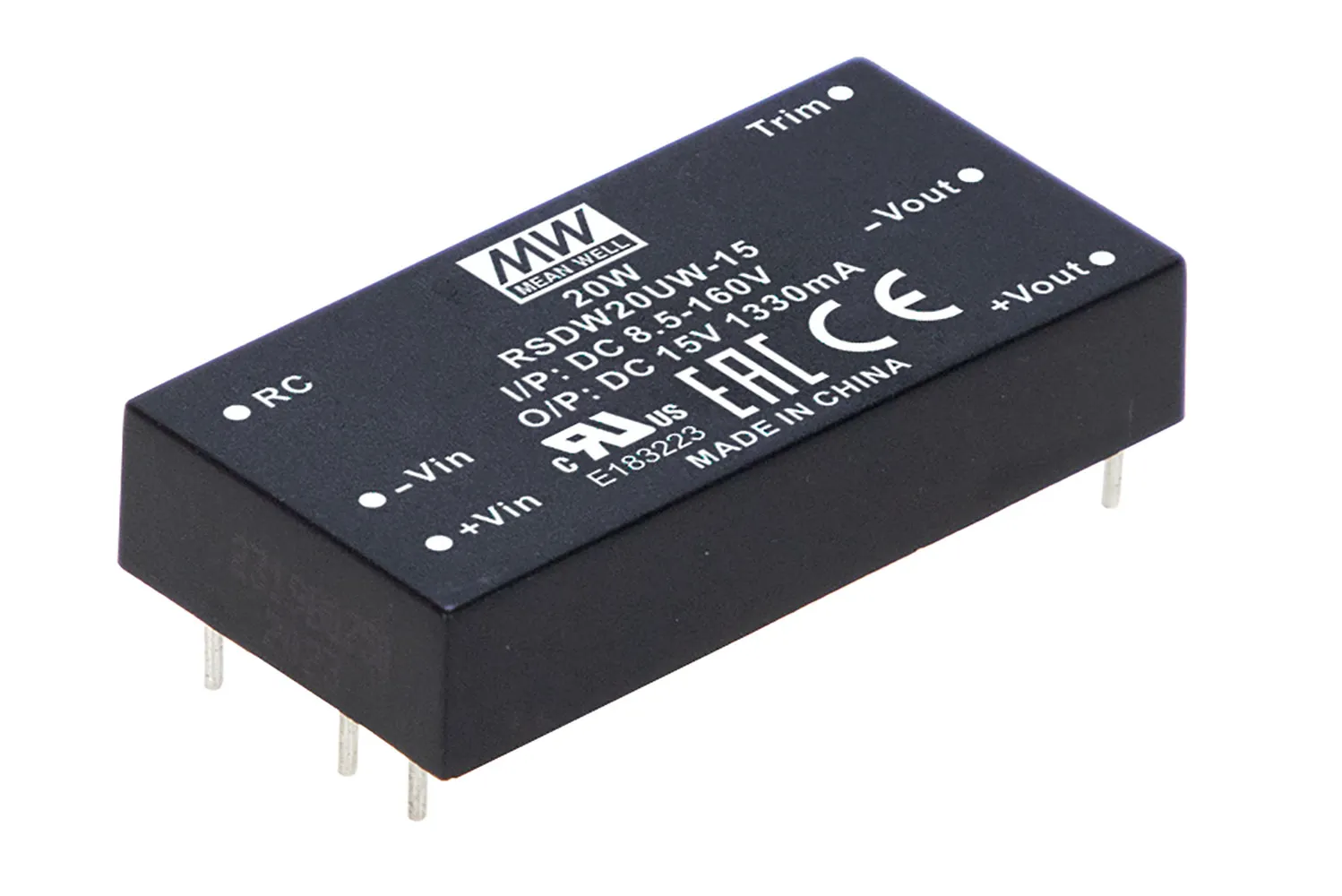

20W Ultra-Wide Input Railway DC-DC Converter DIP Package 15V 1.33A Output 8.5-160Vin

Features
  • Compliance with railway standard EN50155
  • DIP 2"x1" package with industry standard pinout
  • 18:1 (8.5 VDC to 160 VDC) ultra-wide input range
  • No minimum load required
  • Fully encapsulated
  • Wide Operating Temperature: -40deg;C to 95°C
  • Comply to EN55032 radiated Class A without additional components
  • High efficiency up to 89%
  • Protections: Short circuit (Continuous) / Overload/ Over Voltage / Input Under voltage
  • 3kVAC I/O isolation
  • Remote ON/OFF control
  • 3 year warranty

    Specifications

    • Output Voltage: 15 VDC
    • Output Current: 1330 mA
    • Input Voltage: 8.5 VDC to 160 VDC); Nominal 12V, 24V, 48V, 72V, 96V, 110V
    • Input Current: 8 mA to 312 mA
    • Capacitor Load: 2200 µF

      Applications

      • Telecom/Datacom system
      • Wireless network
      • Industrial control facility
      • Instrument
      • Analyzer
      • Bus, tram, metro or railway system
      • Highly vibrating, heavily dusty, extremely low or high temperature harsh environment

    • Product Identification

    Manufacturer Series:RSDW20
    Product Type:Railway DC-DC Converter SMPS

    Compliance

    Agency Approvals:UL, CUL, CE, EN, EAC

    Dimensions & Appearance

    Color:Black
    Mounting:PCB
    Height:0.4 in.
    Width:1 in.
    Length:2 in.

    Operating conditions

    Minimum Operating Temperature:-40°C
    Maximum Operating Temperature:95°C

    Packaging

    Package:DIP

    Input

    Input Voltage Range:8.5 VDC to 160 VDC
    Maximum Input Current:0.312 A
    Input Voltage:See Datasheet

    Output

    Number of Outputs:1
    Output Connector Type:PC Pins
    Output Voltage:15 VDC
    Additional Output Voltages (VDC):N/A
    Output Current:1.33 A

    Features

    Pins:6
    Efficiency:89%
    Power Rating:20 W
    ,
