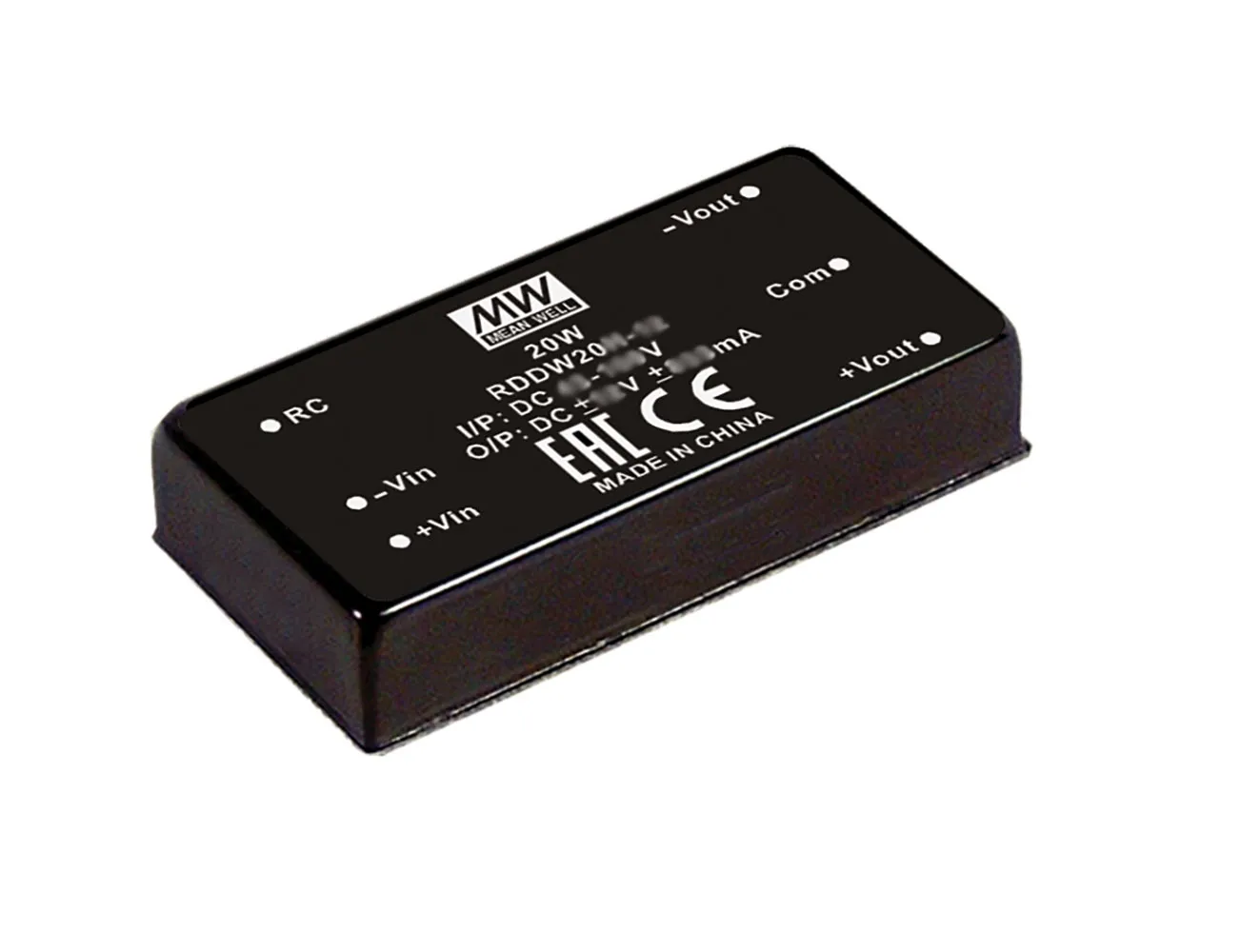

20W Reliable Railway DC-DC Regulated Converter DIP Package 48V Input +/-12V +/-835mA Dual Output

Output: ±12 Volts DC @ 0 to ±835 mA

Features:

  • DIP 2"x1" package with industry standard pinout
  • 4:1 wide input range
  • No minimum load required
  • Comply to EN55032 radiated Class A without additional components
  • High efficiency up to 87%
  • Protections: Short circuit (Continuous) / Overload
  • 1.5kVDC I/O isolation by models
  • 3 years warranty

Applications

  • Telecom/Datacom system
  • Wireless network
  • Industrial control facility
  • Instrument
  • Analyzer
  • Bus, tram, metro or railway system
  • Highly vibrating, heavily dusty, extremely low or high temperature harsh environment

Product Identification

Type:Isolated
Product Type:DC-DC Reliable Railway Dual Output SMPS
Manufacturer Series:RDDW20

Dimensions & Appearance

Height:0.40 in.
Width:1 in.
Length:2 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Voltage Range:18 VDC to 75 VDC
Input Voltage:48 VDC
Maximum Input Current:0.47 A

Output

Number of Outputs:2
Additional Output Voltages (VDC):-12 VDC
Output Voltage:12 VDC
Output Connector Type:DIP
Output Current:0.835 A

Features

Pins:6
Efficiency:88%
Power Rating:20 W
,
