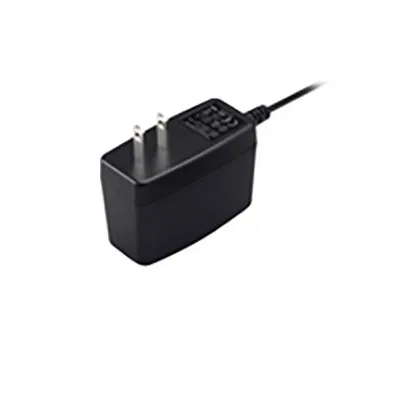

20W 5VDC 4A AC-DC ITE Switching Adapter 2.1mm Right Angle Plug

Features

  • Universal Input Range 90 to 264 Vac
  • High Efficiency up to 80%
  • Class II
  • No Load Input Power Consumption < 75mW
  • Approval IEC/EN/UL 62368-1
  • Approval EN55032 and CISPR/FCC Class B
  • Operating Altitude 3000m
  • Continuous Short Circuit Protection
  • Over Voltage Protection
  • Meets CoC Tier 2 and DOE Level VI
  • Output Cable Length approx. 4'

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:TRE25

Compliance

Agency Approvals: CE, CUL, EN, FCC, PSE, TUV, UL

Dimensions & Appearance

Color:Black
Style:Wall Mount
Depth:1.30 in.
Height:1.91 in.
Length:2.80 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C

Packaging

Packaging:Carton

Input

Input Frequency:47 Hz to 63 Hz
Input Connector:NEMA 1-15P
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:0.7 A

Output

Number of Outputs:1
Output Cord Length:4 ft.
Output Connector Diameters:2.1mm x 5.5mm right angle
Output Voltage:5 VDC
Output Connector Type:Cylindrical Female
Output Current:4 A

Features

Polarity:Center Positive
Minimum Isolation Voltage:3000V
Product Note:Level VI
AC Power Cord:N/A
Efficiency:80%
Power Rating:20 W
,
