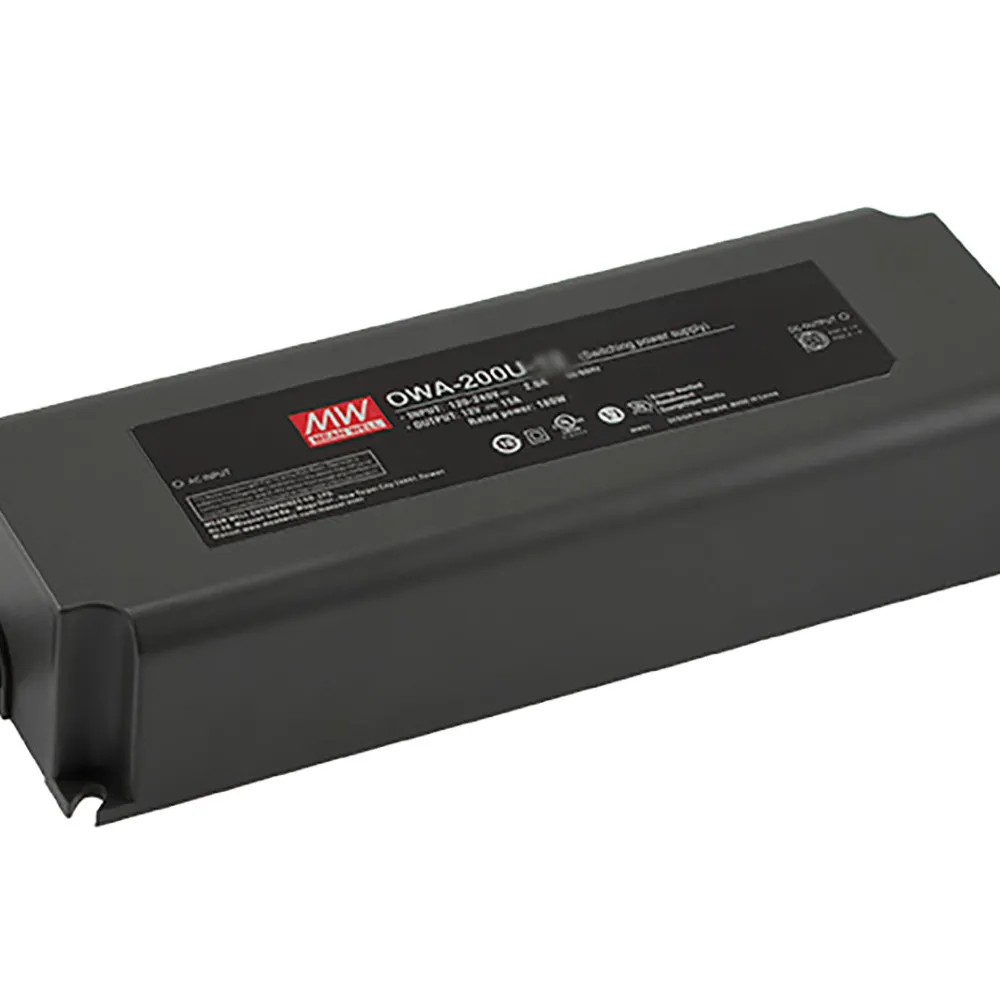

20V 10A 200W Moisture-proof Power Adaptor DIN4

Features

  • Universal AC Input Range: 100 VAC to 264 VAC
  • Output Connector: Kycon KPPX-4P or equivalent
  • Class II power unit, no FG
  • Built-in active PFC function
  • No load power consumption <0.15W
  • Energy efficiency Level VI
  • Complies with EU ErP and CoC Version 5
  • Fully isolated plastic case with IP67
  • Fanless design, cooling by free air convection
  • Protections: Short circuit, overload, over voltage, over temperature
  • UL Listed, suitable for dry and damp locations
  • 5-year warranty

Specifications

  • Voltage Rating: 20 VDC
  • Current Rating: 10 A
  • Power Rating: 200 W
  • Input Voltage: 100 VAC to 264 VAC @ 47 to 63 Hz; 2.2A (115VAC), 1.1A (230VAC)
  • Efficiency: 90% (115VAC), 92.5% (230VAC)
  • Size: 7.68"L x 2.68"W x 1.56"H (195 x 68 x 39.5mm)
  • Agency Approvals: CB, CE, DEKRA, EN, EAC

Applications

  • Industrial field PC adaptorPOS or KIOSK system
  • Portable battery charger
  • Electric lawn mower charger
  • General electronic products in dusty or humid environments
  • Household devices

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:OWA-200U

Compliance

Agency Approvals: CUL, FCC, UL

Dimensions & Appearance

Style:Desktop
Color:Silver
Height:1.56 in.
Width:2.68 in.
Length:7.68 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:100 VAC to 264 VAC
Maximum Input Current:2.2 A

Output

Number of Outputs:1
Output Connector Diameters:DIN-4 Male
Output Connector Type:DIN-4 Male
Output Voltage (Channel 1):20 VDC
Output Voltage:20 VDC
Additional Output Voltages (VDC):N/A
Output Current (Channel 1):10 A
Output Current:10 A

Features

Polarity:N/A
Product Note:Level VI
AC Power Cord:Included
Minimum Isolation Voltage:4200V
IP Rating:IP67
Efficiency:90%
Power Rating:200 W
,
