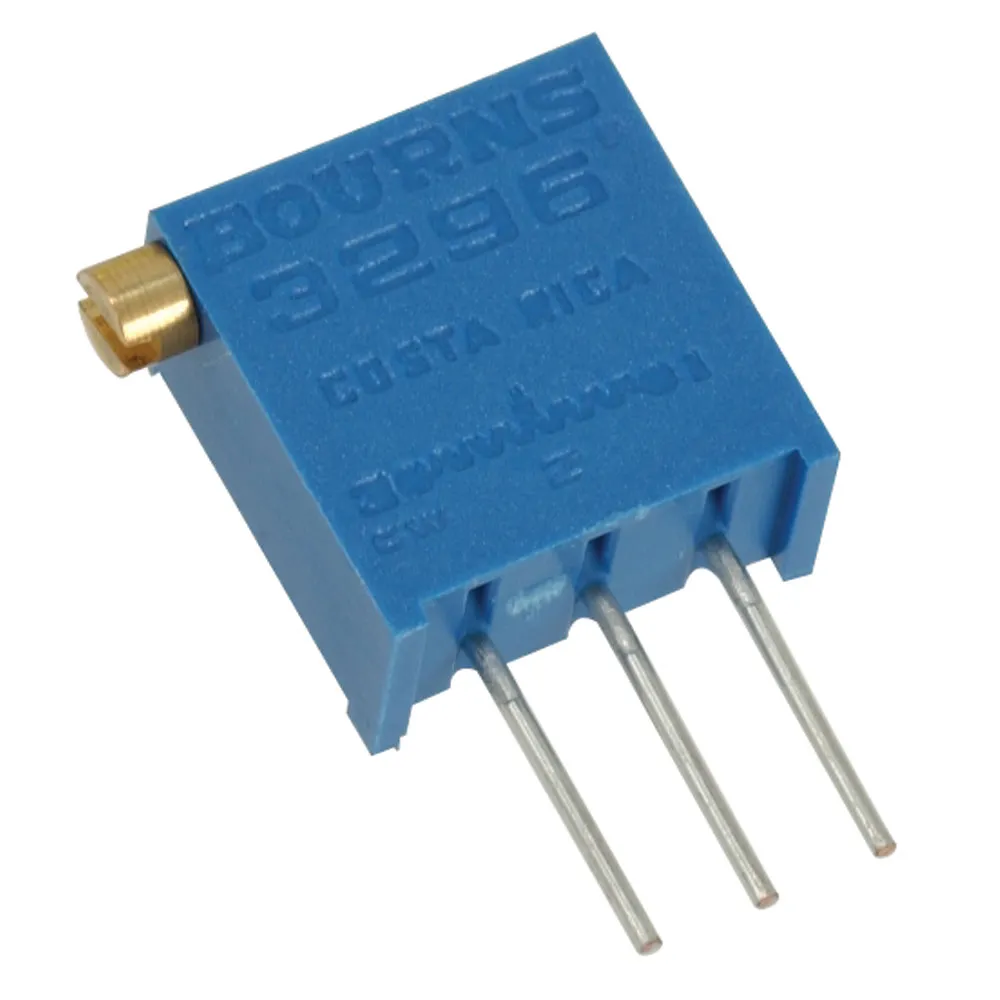

20kΩ Square Cermet Trimmer Potentiometer


Features:

  • Resistance range: 10Ω to 20kΩ
  • Tolerance: 10%
  • Power rating: 0.5W @ 70°C
  • Number of turns: 25 nominal
  • Insulation resistance: 1000MΩ
  • Operating temperature range: -55°C to +125°C
  • Size: 0.395"L x 0.375"W x 0.19"D
  • Side adjustment
  • Connection: In-line PC pins

    • Product Identification

    Manufacturer Series:3296
    Family:X
    Product Type:Trimmer

    Dimensions & Appearance

    Shaft Diameter:2.19 mm
    Mounting:Through Hole
    Height:10.03 mm
    Length:11.05 mm
    Width:4.83 mm

    Operating conditions

    Maximum Operating Temperature:150°C
    Minimum Operating Temperature:-55°C

    Features

    Resistance (Ohm):20000
    Taper:Linear
    Resistive Element Material:Cermet
    Actuator Orientation:Side
    Number of Turns:25
    Tolerance:10%
    Temperature Coefficient:100 ppm/°C
    Technology:Sealed
    Power Rating:0.50 W
    Termination Style:Pins
    Resistance:20 KOhm
    Actuator Type:Side Slot
    ,
