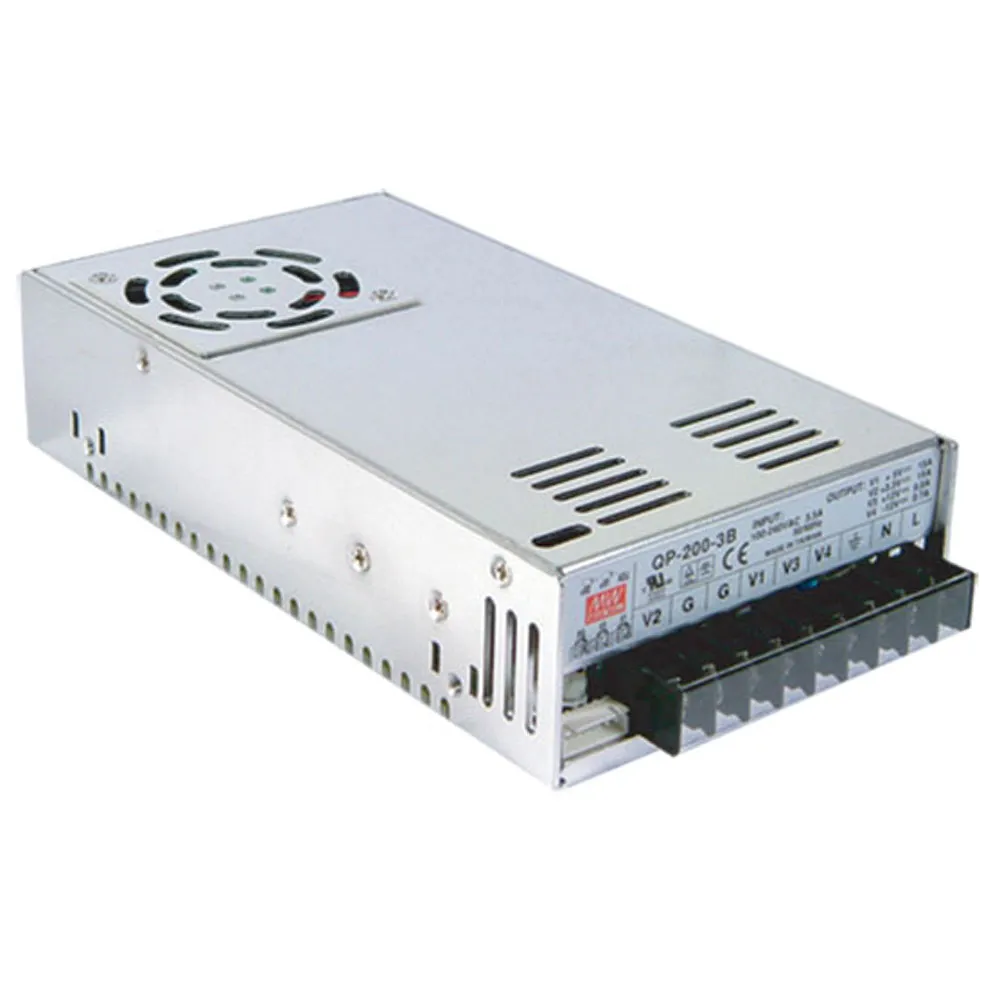

200W Quad Output Regulated Switching Power Supply

Channel 1: 5 Volts @ 10 Amps
Channel 2: 3.3 Volts @ 15 Amps
Channel 3: 24 Volts @ 4 Amps
Channel 4: -12 Volts @ 0.7 Amps

Features:

  • Input voltage range: 90-264VAC @ 47-63Hz, or 127-370VDC
  • Efficiency: 74%
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Built-in active PFC function, PF>0.95
  • Forced air cooling by built-in DC fan
  • Built-in remote sense function for Channels 1 and 2
  • 100% full load burn-in test
  • Size: 9.1"L x 4.5"W x 2.0"H
  • Weight: 2.6 lbs.

Product Identification

Type:Auto Switching SMPS
Product Type:AC to DC Power Supply
Manufacturer Series:QP-200

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Multiple Output
Color:Silver
Height:2 in.
Width:4.5 in.
Length:8.5 in.

Operating conditions

Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:3.5 A

Output

Output Voltage (Channel 4):-12 VDC
Output Voltage (Channel 2):3.3 VDC
Output Current (Channel 4):0.7 A
Number of Outputs:4
Output Voltage (Channel 3):24 VDC
Additional Output Voltages (VDC):3.3, -12, 24
Output Voltage (Channel 1):5 VDC
Output Current (Channel 3):4 A
Output Current (Channel 2):15 A
Output Voltage:5 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):10 A
Output Current:15 A

Features

Minimum Isolation Voltage:3000V
Efficiency:72%
Power Rating:203.9 W
,
