200W DC Switching Power Supply 150V/5A

Features

  • Channels: 1Ch
  • Warranty: 3 years
  • Interface: USB, LAN, RS232, RS485
  • Prop65: No
  • Reach: No

Overview

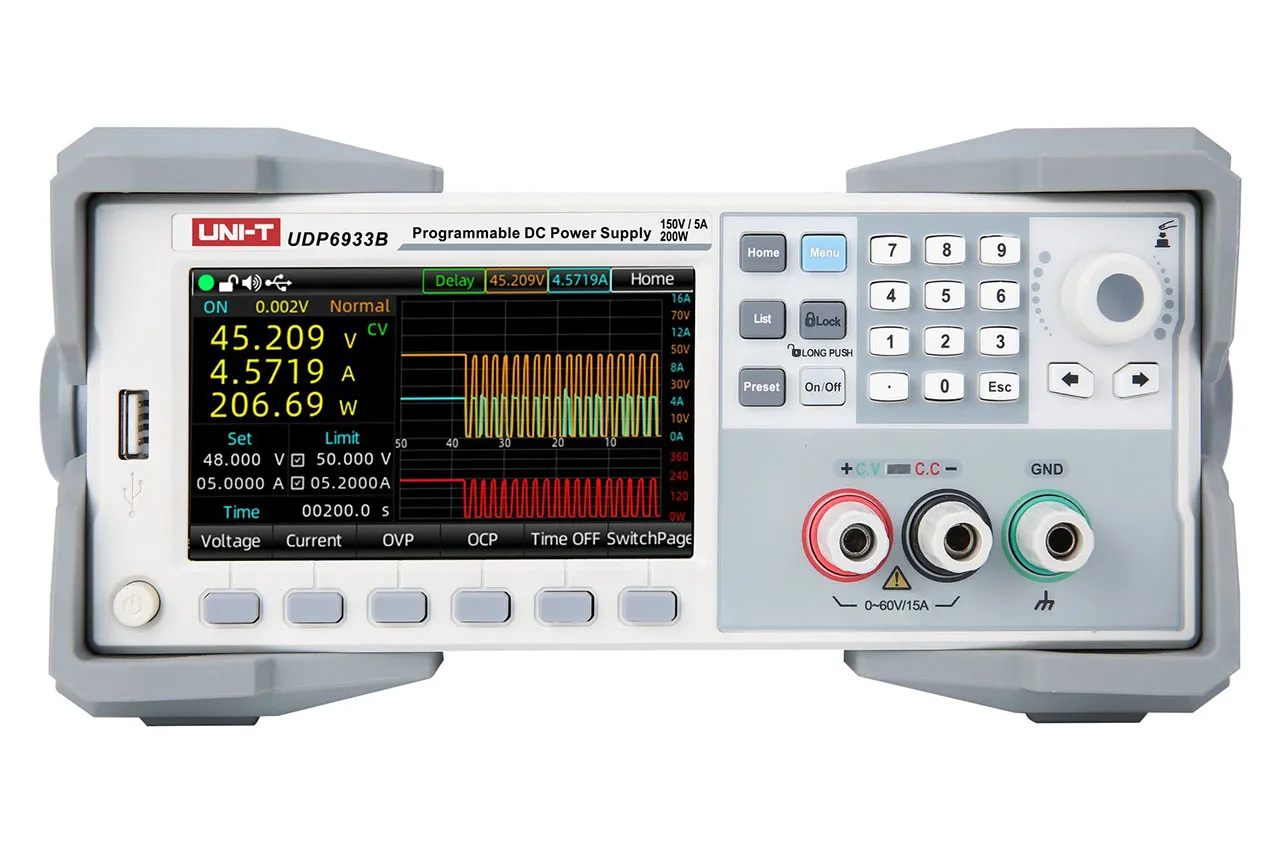

The UNI-Trend UDP6933B is a High-Performance programmable DC power supply is a diverse and cost-effective unit for teaching, scientific research, and measuring in the industrial field.

Technical Specifications

  • Other Accessories: USB2.0 printing cable, Digital IO plug
  • Accessories Universal Accessories: Power Cord
  • Packing List: English download guide, multi-language safety manual, calibration report (COC)
  • Software Downloads
  • T Screen: No
  • Max V DC: 150V
  • Max A DC: 5A
  • Watts: 200W
  • Max V Res: 1mV
  • Max A Res: 0.1mA
  • Programmable?: Yes
  • Power Supply Type: DC Switching

Product Identification

Product Type:Switching DC Power Supply

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Depth:15 in.
Height:3.5 in.
Width:8.5 in.

Input

Input Frequency:50Hz, 60Hz
Input Voltage:120 VAC, 220 VAC

Output

Number of Outputs:1
Output Current:0 A to 5 A
Output Voltage:0 VDC to 150 VDC
Output Connector Type:Banana Jacks

Features

Type of Displays:Digital LCD
Power Rating:200 W
,
