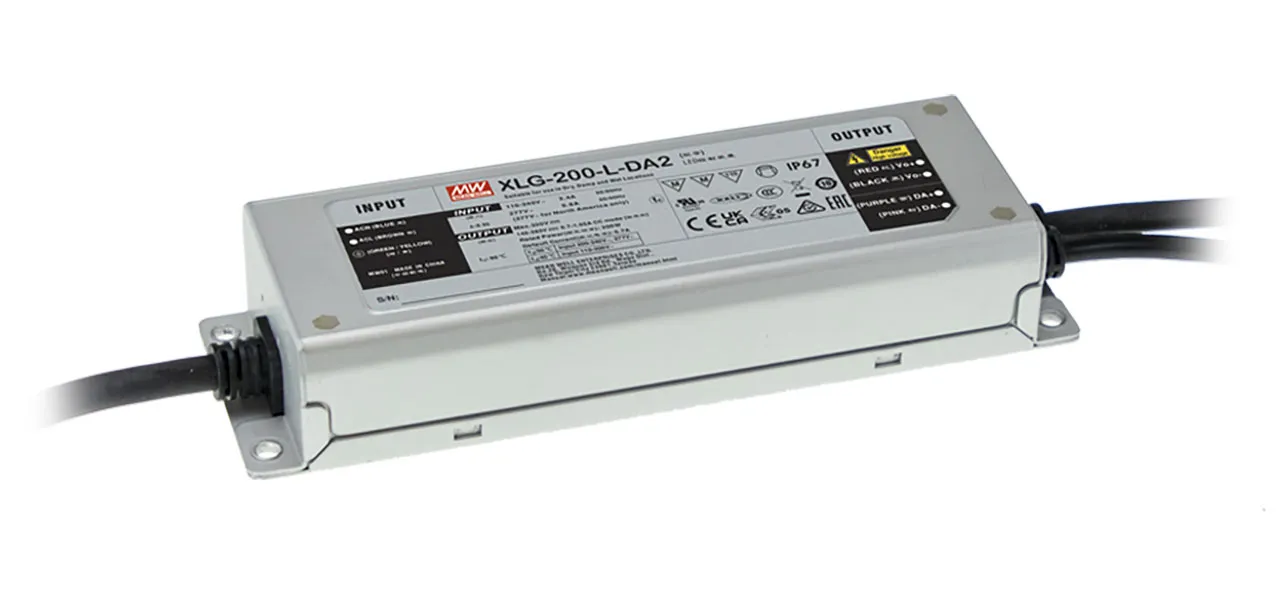

200W Constant Power Mode LED Driver with DALI-2 Dimming 700mA 142-285VDC

Features

  • Wide input range 100-305 VAC (Class I)
  • Full power output at 70-100% Constant power mode operation
  • Metal housing design with functional ground
  • Built-in active PFC function
  • IP67 rating for indoor or outdoor installations
  • Surge protection with 6KV/4KV
  • DALI-2 dimming with minimum level 8%
  • Typical lifetime > 50,000 hours
  • Protections: Short circuit, over temperature
  • 5-year warranty

Overview

The XLG-200-DA2 series is a 200 watt AC/DC LED driver featuring the constant power mode output with DALI-2 dimming. It operates from 100 to 305 VAC. Thanks to the high efficiency with the fanless design, the entire series is able to operate between -40C and 90C wide case temperature range with air convection. The metal housing design and IP67 ingress protection level allows this series to fit both indoor and outdoor applications.

The XLG-200-DA2 has an innovative environment-adaptive capability allowing this series to reliably light on the LEDs for all kinds of application environments in almost any place that might install LED luminaires in the world. This series also complies with the latest version of IEC61347/GB19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.

Technical Specifications

  • Rated Output Current: 700 mA
  • Rated Output Power: 200 W
  • Constant Current Region: 142 VDC to 285 VDC
  • Full Power Current Range: 700 mA to 1050 mA
  • Open Circuit Voltage: 320 VDC
  • Current Adjustment Range (via built-in pot): 350 mA to 1050 mA

Applications

  • Street lighting
  • Stage lighting
  • Horticulture lighting
  • Fishing lighting
  • Floodlight lighting
  • Bay lighting
  • Type "HL" for use in Class I, Division 2 hazardous (classified) location

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:XLG-200

Compliance

Agency Approvals: CB, CCC, CE, C-TICK, CUL, EAC, EN, ENEC, UKCA, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.40 in.
Width:2.48 in.
Length:7.83 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:100 VAC to 305 VAC
Maximum Input Current:2.20 A

Output

Number of Outputs:1
Output Current (Channel 1):0.35 A to 1.05 A
Output Connector Type:Stripped and Tinned
Output Voltage (Channel 1):142 VDC to 285 VDC
Output Current:0.70 A
Output Voltage:See Output Range
Output Range:142 VDC to 285 VDC

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:94%
Power Rating:200 W
,
