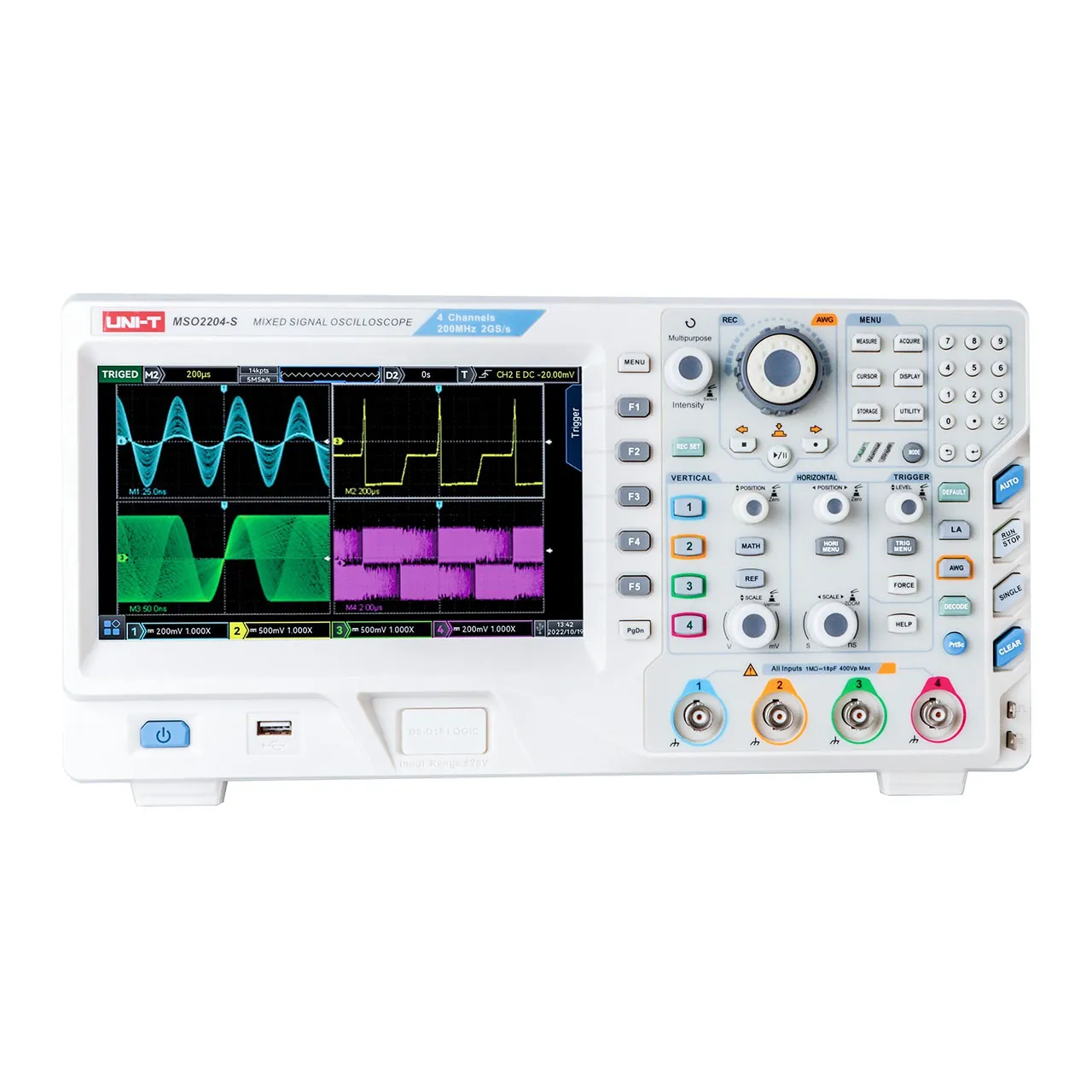

200MHz 4+16Ch MSO with Signal Generator

Features

• Bandwidth: 200MHz
• Channels: 4Ch
• Scope Type: MSO
• Scope Sample Rate: 2.0GSa/s
• Memory Depth: 56Mpts
• Refresh Rate: 1,000,000wfms/s
• Display Size: 8 in.
• Warranty: 3 years
• Interface: USB, LAN, VGA, EXT, AUX
• Prop65: No
• Reach: No

Overview

Automate your Bode Plot analysis with this option for the UNI-T -S models oscilloscopes. Add the UNI-T UT-ISOT Isolation Transformer to inject and measure the signal from the scope source output back into the scope.

Technical Specifications

• Other Accessories: Oscilloscope probe (UT-P05)*4, logic probe (UT-M15), BNC straight-through cable, BNC to alligator clip cable
• Accessories Universal Accessories: Power cord, USB2.0 printing cable
• Packing List: English download guide, multi-language safety manual, calibration report (COC)
• Software Downloads
• Logic Probes: Included
• Signal Generator: Included
• Auto Measurements: 36
• Vertical Scale 1M : 500uV/div to 20V/div
• Included Bus Protocols: None
• Frequency Meter: 7-bit
• T Screen: Yes
