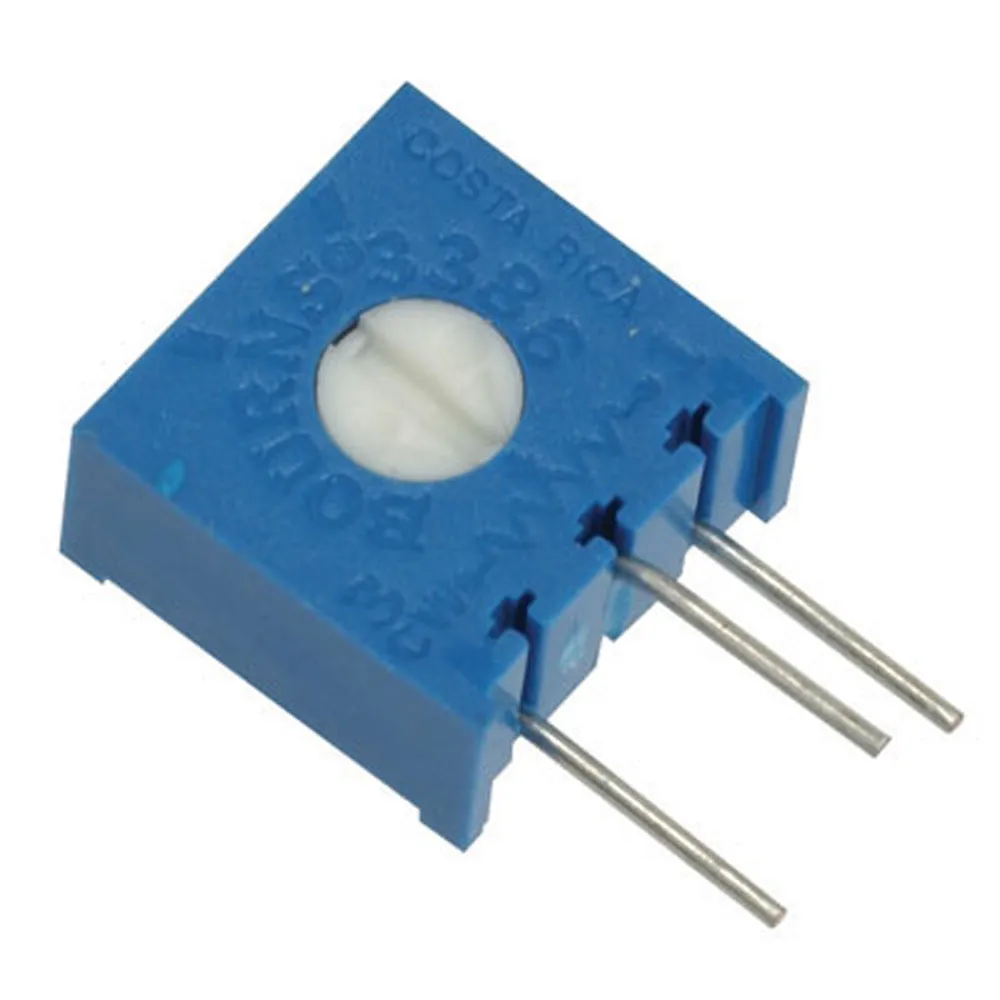

1/2-Watt, 3/8" Square, Trimming Potentiometer (±10%)
3386X - Side Adjust, Rev. Y-Layout Pins

  • Resistance tolerance: ±10%
  • Insulation resistance (500VDC): 1,000MΩ min.
  • Absolute min. resistance: 2Ω max.
  • Adjustment angle: 280° nominal
  • Power rating: 0.5W @ 85°C (300V max.)
  • Temperature range: -55°C to 125°C
  • 200kΩ

    • Product Identification

    Manufacturer Series:3386
    Family:X
    Product Type:Trimmer

    Dimensions & Appearance

    Shaft Diameter:3.15 mm
    Mounting:Through Hole
    Width:4.83 mm
    Height:9.53 mm
    Length:9.53 mm

    Operating conditions

    Maximum Operating Temperature:125°C
    Minimum Operating Temperature:-55°C

    Features

    Number of Turns:1
    Taper:Linear
    Resistive Element Material:Cermet
    Actuator Orientation:Side
    Tolerance:10%
    Temperature Coefficient:100 ppm/°C
    Technology:Sealed
    Power Rating:0.50 W
    Termination Style:Pins
    Resistance (Ohm):200000
    Actuator Type:Side Slot
    Resistance:200 KOhm
    ,
