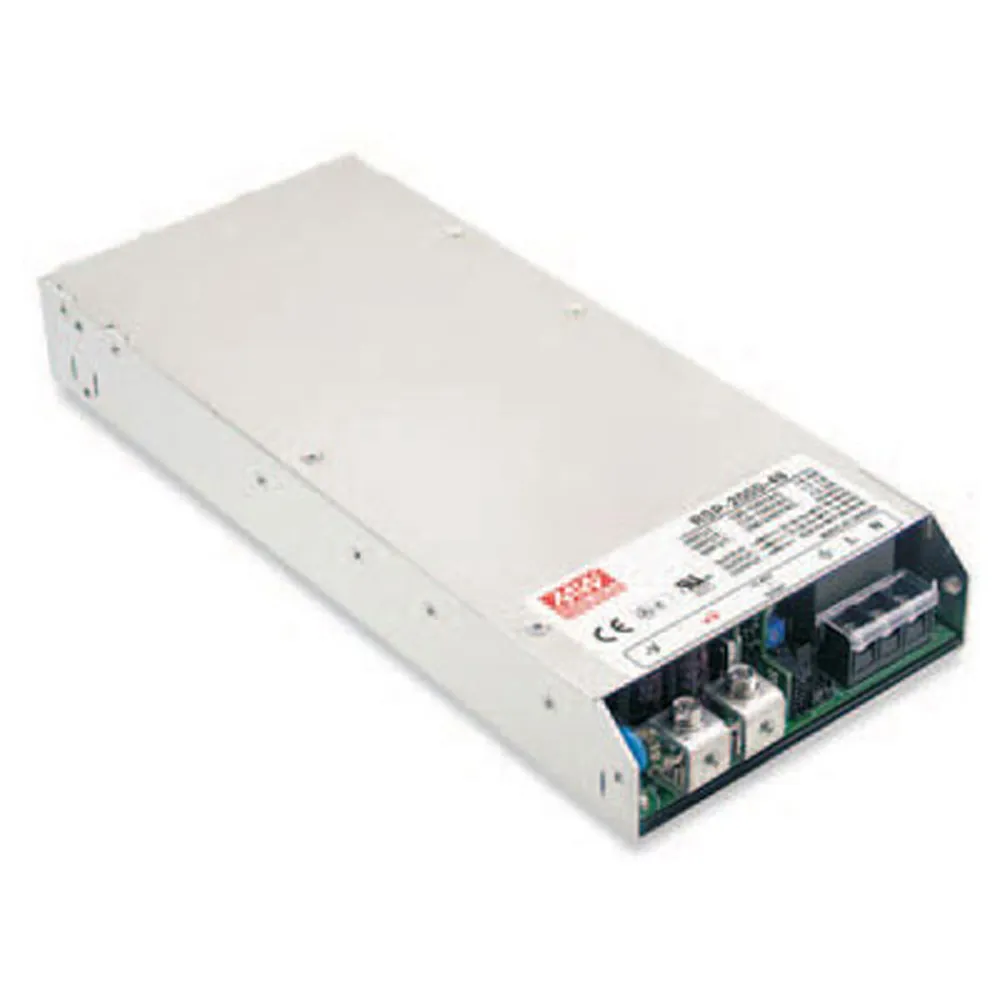

2000W Single Output Power Supply
12 Volts @ 100 AmpsFeatures
- Universal AC input / Full range
- Built-in 5V/0.3A, 12V/0.8A auxiliary power
- Built-in active PFC function, PF>0.97
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Forced air cooling by built-in DC fan with fan speed control
- Output voltage can be trimmed between 40~115% of the rated output voltage
- 1U low profile 41mm
- Active current sharing up to 8000W(3+1)
- Built-in remote sense function
- DC OK signal, OTP alarm signal
- 3 years warranty
- High Power density 21.4W/inch³
- Built-in remote ON-OFF control
Overview
Product Identification
Type:Auto Switching SMPS
Manufacturer Series:RSP-2000
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:1.6 in.
Length:11.6 in.
Width:5 in.
Operating conditions
Minimum Operating Temperature:-35°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:13 A
Output
Number of Outputs:1
Output Voltage (Channel 1):12 VDC
Output Voltage:12 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):100 A
Output Current:100 A
Features
PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:87%
Power Rating:1200 W
