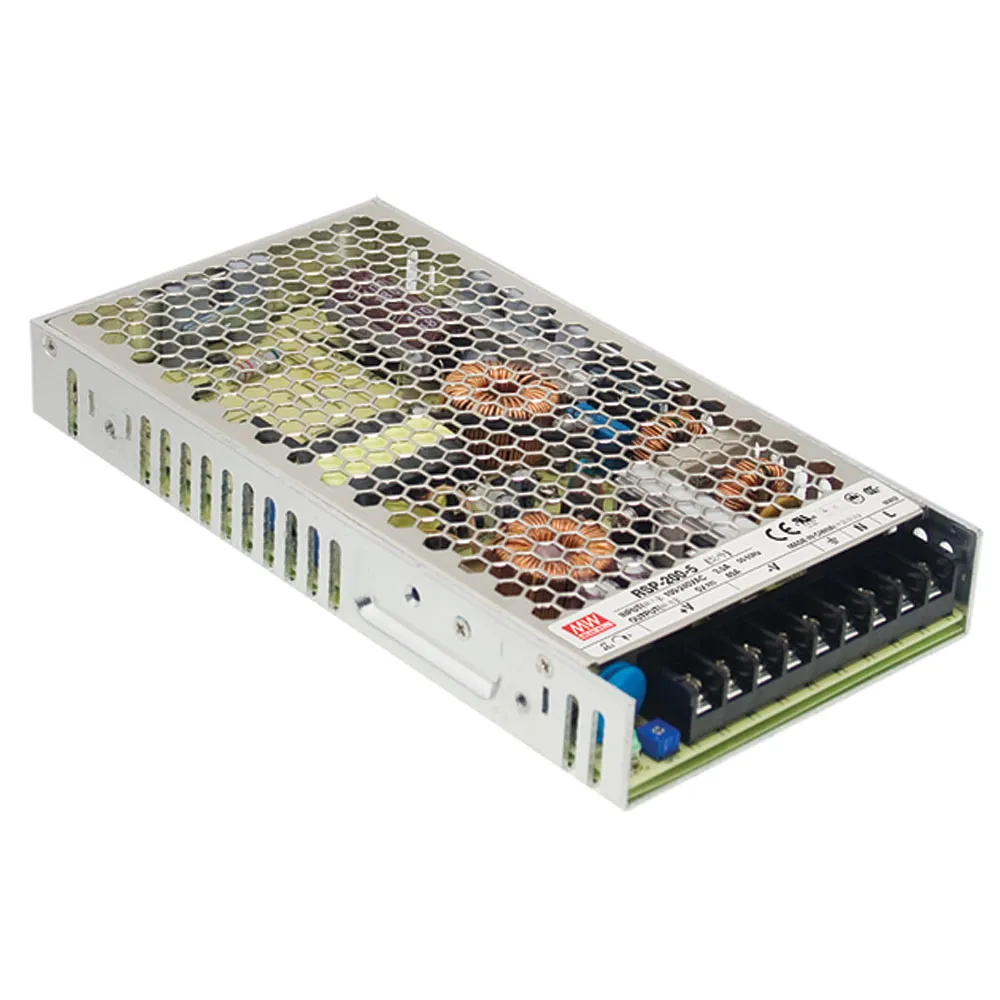

200 Watt Single Output Power Supply with PFC Function

7.5 Volts @ 26.7 Amps

Features

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • Efficiency: 89%
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • 1U low profile 30mm
  • LED indicator for power on
  • 3 years warranty
  • Agency Approvals: UL, cULus, TUV, CB, CE
  • Safety Standards: UL60950-1, TUV EN60950-1,
  • Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
  • Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A

      • Overview

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:RSP-200

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, TUV, UL, IEC/EN 61558-1

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.2 in.
Width:4.5 in.
Length:8.5 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 264 VAC
Maximum Input Current:3.5 A

Output

Number of Outputs:1
Output Voltage (Channel 1):7.5 VDC
Output Voltage:7.5 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):26.7 A
Output Current:26.70 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:89%
Power Rating:200.2 W
,
