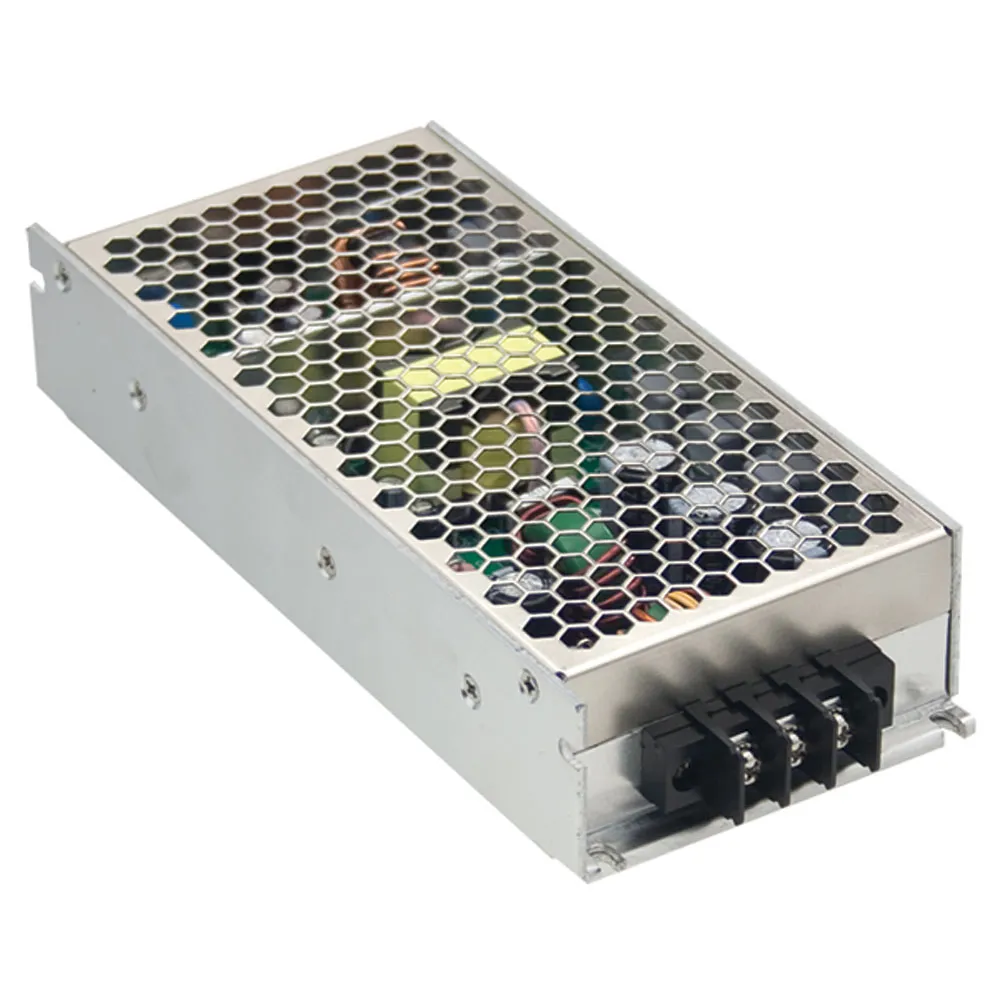

200 Watt Railway Single Output DC-DC Converter
48 Volts @ 4.2 Amps
Features:
- Compliance to EN50155 railway standard
- 2:1 wide input range
- Protections: Short circuit / Overload / Over voltage / Over temperature/ Input reverse polarity
- 4000VDC I/O isolation
- Cooling by free air convection
- Built-in constant current limiting circuit
- 1U low profile 39mm
- All using 105º long life electrolytic capacitors
- LED indicator for power on
- 100% full load burn-in test
- 3 years warranty
Product Identification
Product Type:Railway Single Output DC to DC Converter SMPS
Manufacturer Series:RSD-200
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, UL, UL, CUL, CB, CE, EN, EAC
Dimensions & Appearance
Height:1.6 in.
Width:3.4 in.
Length:7.5 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C
Packaging
Package:Railway Enclosed
Input
Input Voltage:48 VDC
Input Voltage Range:33.6 VDC to 62.4 VDC
Maximum Input Current:4.8 A
Output
Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:48 VDC
Additional Output Voltages (VDC):N/A
Output Current:4.20 A
Features
Efficiency:91%
Power Rating:201.6 W
