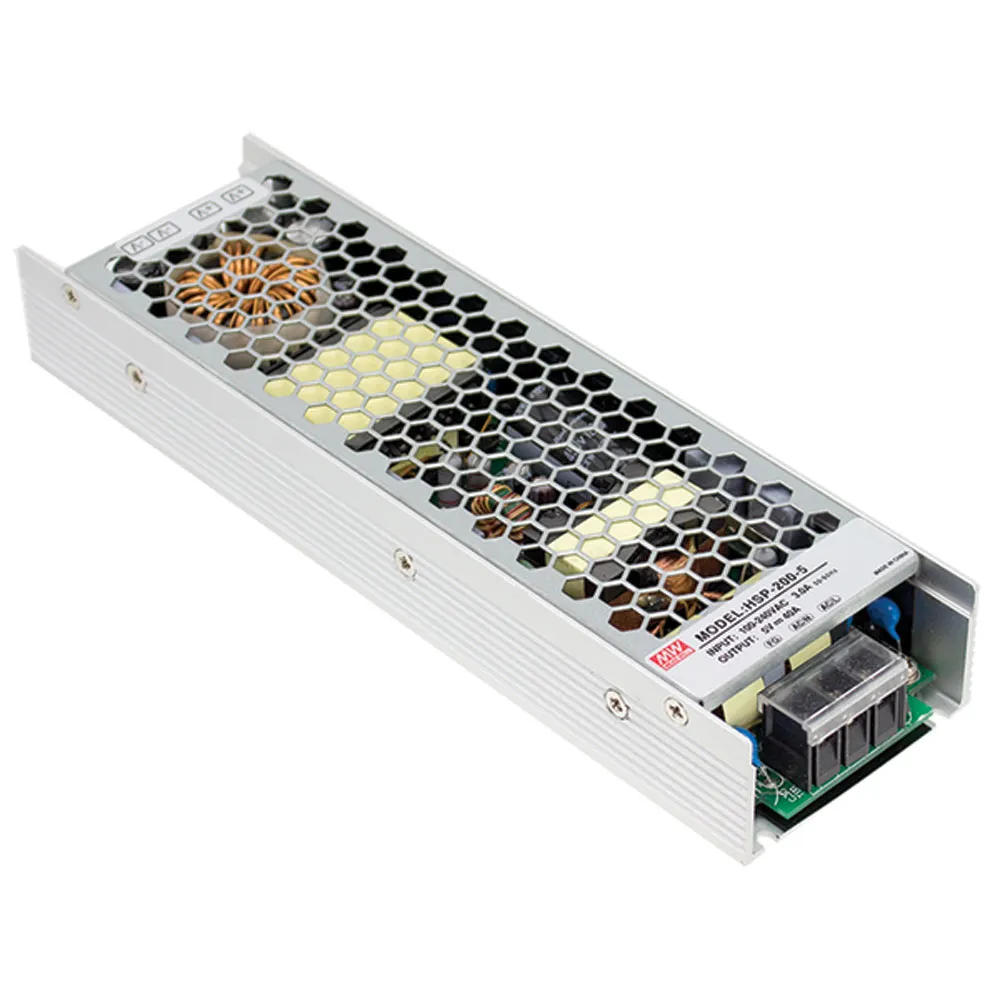

200 Watt 5 Volt 40 Amp Enclosed Switching Power Supply with PFC

5 Volts @ 0-40 Amps

  • Universal AC input / Full range
  • Screw terminal output
  • Built-in active PFC function
  • Low leakage current <1.0mA
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Low profile: 31mm
  • Conformal coated
  • LED indicator for power on
  • 3 year warranty

    • Product Identification

    Type:Auto Switching SMPS
    Manufacturer Series:HSP-200

    Compliance

    Agency Approvals: CB, CCC, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Style:Enclosed
    Color:Silver
    Height:1.22 in.
    Width:2.44 in.
    Length:8.27 in.

    Operating conditions

    Minimum Operating Temperature:-30°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:90 VAC to 264 VAC
    Maximum Input Current:2.5 A

    Output

    Number of Outputs:1
    Output Voltage (Channel 1):5 VDC
    Output Voltage:5 VDC
    Output Connector Type:Screw Terminal Block
    Output Current (Channel 1):40 A
    Output Current:40 A

    Features

    PFC Function:Yes
    Minimum Isolation Voltage:3000V
    Efficiency:88.5%
    Power Rating:200 W
    ,
