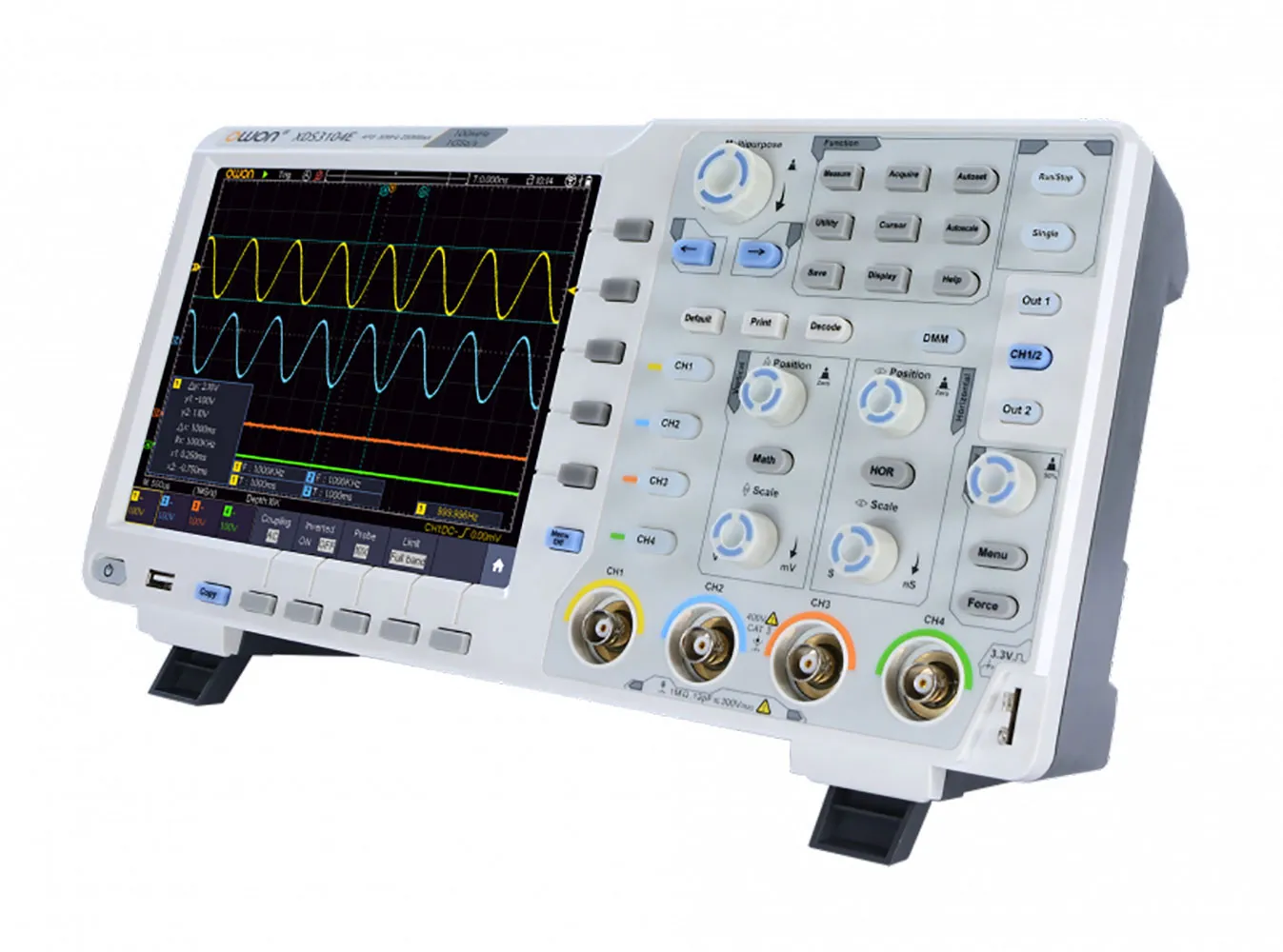

200 MHz 4 Channel 14-bit Digital Oscilloscope 1GS/s 8" Touchscreen LCD

Specifications

• Channels: 4
• Bandwidth: 200 MHz
• Sample Rate: 1 GSa/s (single channel) **see datasheet for full rate chart
• Record Length: 40 M
• Waveform Refresh Rate: 70,000 wfms/s
• Display: 8" Color LCD, 800x600 pixels
• Sample Rate / Relay Time Accuracy: ±2.5 ppm
• Input Coupling: DC, AC, GND
• Input Impedance: 1MΩ ±2%, in parallel with 15pF ±5pF
• Horizontal Scale (s/div)): 1ns/div - 1000s/div, step by 1 - 2 - 5
• Vertical Resolution: 14 bits
• Vertical Sensitivity: 1mV/div - 10V/div (at input)
• Trigger Type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232
• Trigger Mode: Auto, Normal, and Single
• Vertical Range: ±2V (1mV/div to 50mV/div); ±20V (100mV/div to 1V/div); ±200V (2V/div to 10V/div)
• Waveform Math: +, -, *, /, FFT, Intg, Diff, Sqrt, and user defined function
• Communication Interface: USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, WiFi (option) and VGA (option)
• Power Supply: 100V - 240V AC, 50/60Hz, CAT II
• Fuse: 2A, T class, 250V
• Battery (Optional): 3.7V, 13200mA
• Dimensions: 340 x 177 x 90 mm

Resources & Downloads

• SCPI Protocol for XDS3000 series 2channels DSO (.pdf)
• USB driver for XDS3000 Series Digital Oscilloscope (.zip)
• USB driver for all series OWON DSO and AWG (.zip)
• PC software for OWON XDS Series n-in-1 DSO (.zip)
• app for OWON XDS Series n-in-1 DSO (.zip)
• LabVIEW development case for XDS Series DSO (.zip)
