20 GHz 4 Channel Coherent Microwave RF Source

Features

• Multi-channel with up to 8 channels, support multi-device rack mount
• Channel-to-channel phase stability <1°@10GHz resolution of phase pffset setting adjustable in 0.01° steps
• Fast switching speed 3ms
• Output max. available power up to 25 dBm
• Low phase noise below -133 dBc/Hz@ 1GHz, 10kHz offset

Overview

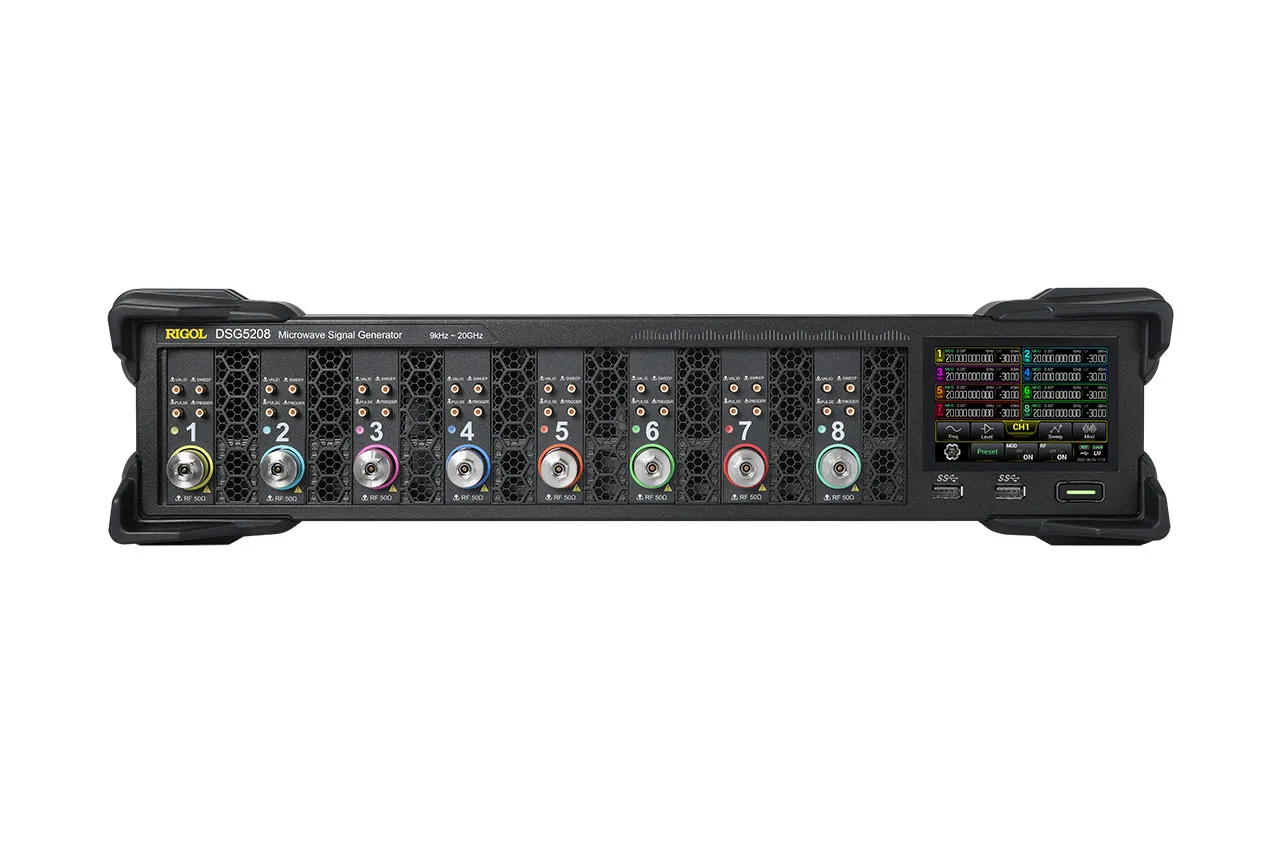

The DSG5000 Series RF Source combines up to 8 channels in a single system. All channels can be controlled from touch screen interface. Channels generate up to 20 GHz signals with amplitude, frequency, phase, and pulse modulation capabilities. The DSG5000 has excellent long term channel to channel phase stability at +/- 1%. Combine multiple channels of accurate, phase stable RF carriers for demanding research applications with the new DSG5000.
