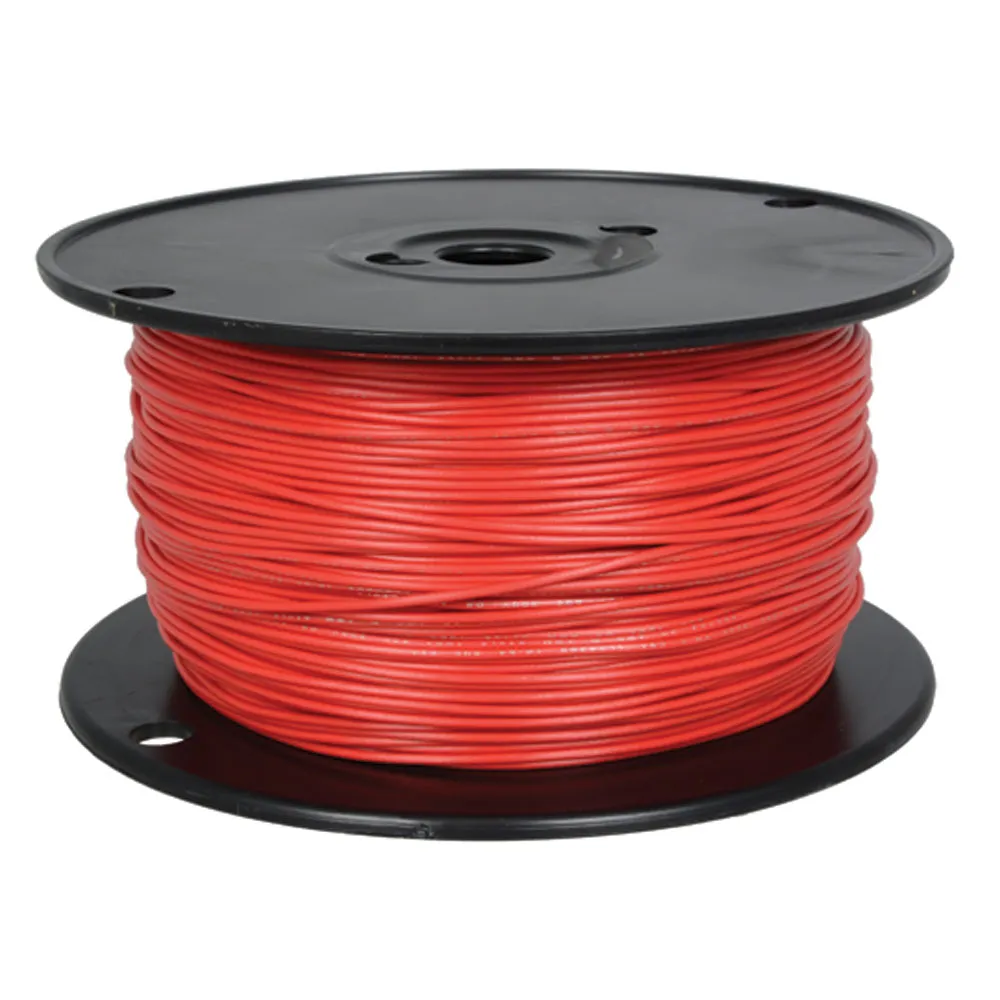

UL1007/1569 20 AWG Stranded Hook-up Wire, 1000', Red
Features
- Consolidated Electronic Wire & Cable PN: 820-2-1000
- Dual rated: UL1007 (-40°C to +80°C) and UL1569: -40°C to 105°C, 300V peak
- Single conductor
- Tin-plated copper
- PVC insulation
- Stranded wire
- Color: Red
- 20 AWG wire gauge
- Nominal Insulation Wall: 0.016"
- Nominal O.D.: 0.07"
- 10 strands of wire @ 30 AWG each (tinned copper wire per ASTM B-33)
- Approvals: UL1007, UL1569, VW-1, CSA-TR-64 90°C, OSHA acceptable, RoHS
Overview
Appliance Wiring Material (AWM) is UL recognized covering of insulated wire and cable intended for internal wiring of appliances, meters, panels, electrical and electronic equipment, hook-up wire, and point to point wiring.
Similar Products
Product Identification
Additional Feature:Made in USA
Product Type:Stranded Hook-up Wire
Compliance
Agency Approvals: CSA VW-1 AWM I A/B FT-1, UL 1007, UL 1569
Dimensions & Appearance
Color:Red
Length:1000 ft.
Packaging
Package:Reel
Features
Number of Conductors:1
Insulation Type:PVC
Conductor Strand:10 x 30
Wire Gauge (AWG):20
Voltage Rating:300 V
