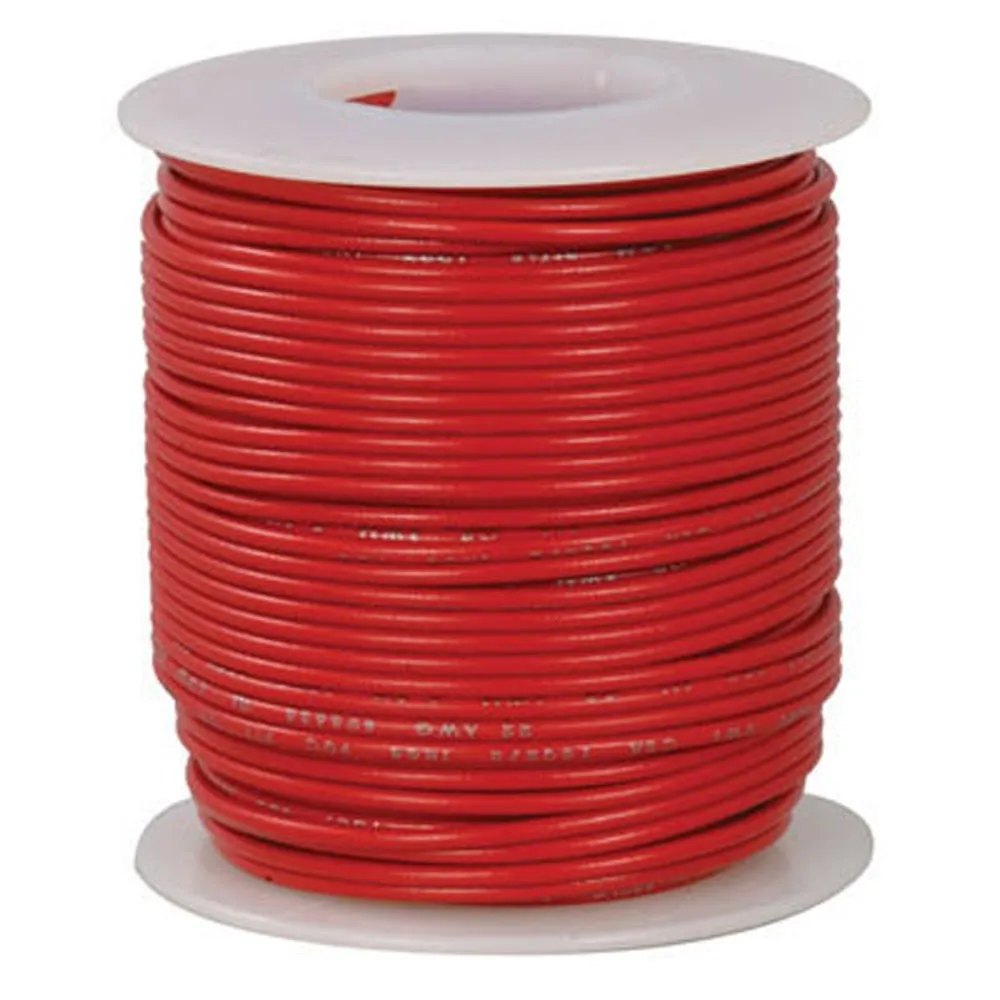

20 AWG Dual Rated Stranded Hook-up Wire 100' Red

Features

  • Consolidated Electronic Wire & Cable PN: 820-2-100
  • NOTICE: The single rated wire has been upgraded to dual rated wire to support a wider temperature range up to 105°C.
  • Dual rated: UL1007: -40°C to 80°C, UL1569: -40°C to 105°C; 300V peak
  • Tin-plated copper
  • PVC insulation
  • Stranded wire for flexibility
  • Color: Red
  • 20 AWG wire gauge
  • Nominal O.D.: 0.07"
  • 10 strands of wire @ 30 AWG each
  • Approvals: UL1007, UL1569, VW-1, CSA-TR-64 90°C, OSHA acceptable, RoHS

Overview

Appliance Wiring Material (AWM) is UL recognized covering of insulated wire and cable intended for internal wiring of appliances, meters, panels, electrical and electronic equipment.

Product Identification

Additional Feature:Made in USA
Product Type:Stranded Hook-up Wire

Compliance

Agency Approvals: CSA VW-1 AWM I A/B FT-1, UL 1007, UL 1569

Dimensions & Appearance

Color:Red
Length:100 ft.

Packaging

Package:Reel

Features

Number of Conductors:1
Insulation Type:PVC
Conductor Strand:10 x 30
Wire Gauge (AWG):20
Voltage Rating:300 V
,
