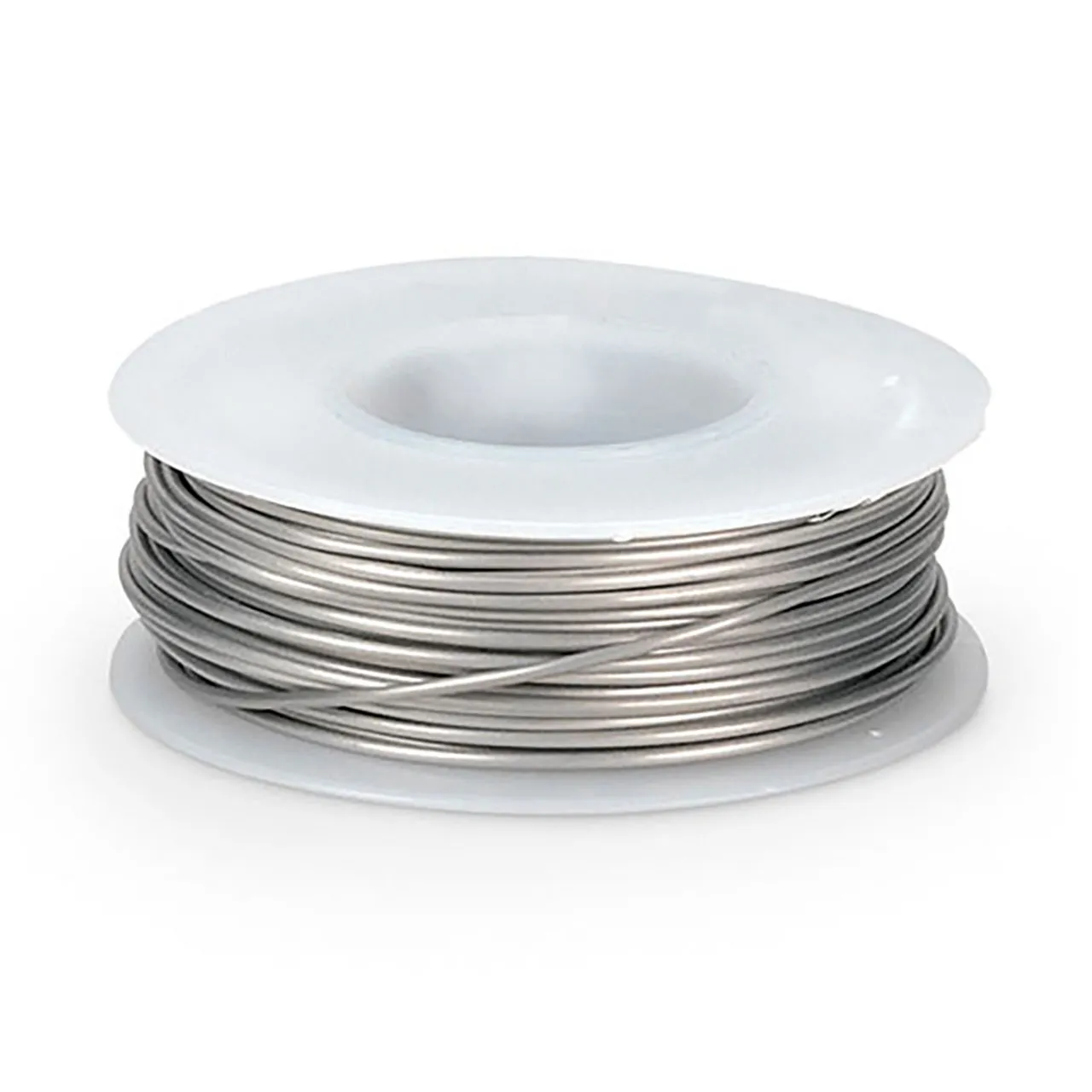

20 AWG Bare Nickel Chromium Resistance Wire (BNC) 1/4 lb Roll (approx. 81 Feet)

Features:

  • Solid soft drawn and annealed
  • Temperature: to +982°C (1800°F)
  • Excellent resistance characteristics
  • ASTM B267 class 3b

Overview

Solid bare nickel chromium resistance wire composition is 60% nickel, 16% chromium, and 24% iron. It comes in a 1/4 lb. roll (approx. 81 feet) for the 20 AWG.

Specifications:

  • ¼ lb. spools
  • Conductor Size: 20 AWG
  • Nominal O.D.: 0.032 in. (0.8128mm)
  • Ohms per ft. at 68°F: 0.663Ω
  • Temperature: Up to +982°C

Product Identification

Additional Feature:ASTM B267 class 3b, ASTM E112
Product Type:BNC Resistance Wire

Dimensions & Appearance

Color:Nickel
Length:81 ft.

Packaging

Package:Spool

Features

Number of Conductors:1
Insulation Type:N/A
Conductor Strand:Solid
Wire Gauge (AWG):20
Voltage Rating:N/A
,
