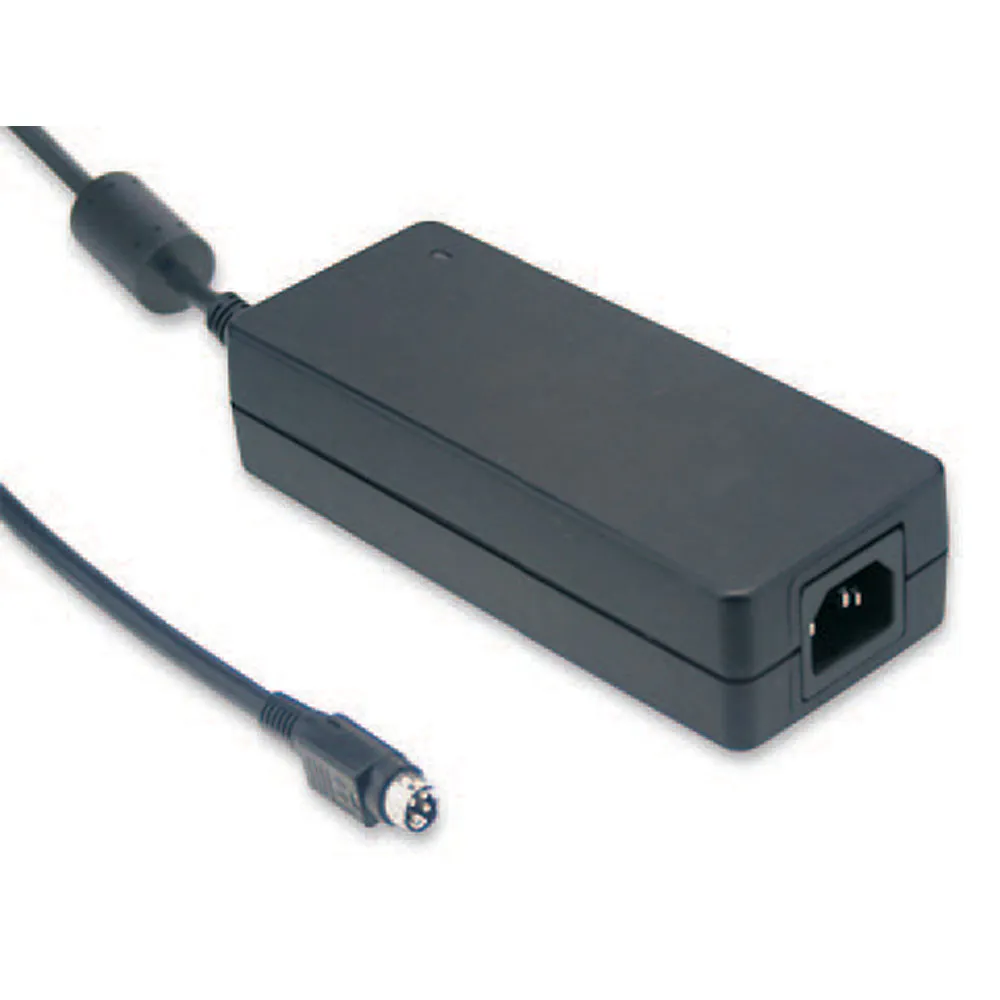

120 WAC-DC Power Adaptor with Charger Function

27.2 Volts @ 4.42 Amps

Features:
  • 4 pin power din connector
  • 2 stage charging characteristic
  • Universal AC input / Full range
  • No load power consumption<0.5W
  • 3 pole AC inlet IEC320-C14
  • Class I power ( with earth pin)
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Fully enclosed plastic case
  • 2 color LED indicator for charging status
  • Approvals: TUV / UL / CB / FCC / CE
  • 2 years warranty
  • Built-in active PFC function, PF>0.97

    • Product Identification

    Additional Feature:For Lead-Acid, For Li-Ion
    Product Type:Battery Charger
    Manufacturer Series:GC120

    Compliance

    Agency Approvals: BC, CB, CE, EAC, FCC, UKCA, TUV

    Dimensions & Appearance

    Color:Black
    Height:1.38 in.
    Width:2.64 in.
    Length:6.57 in.

    Operating conditions

    Minimum Operating Temperature:-30°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:85 VAC to 264 VAC
    Maximum Input Current:1.4 A

    Output

    Output Connector Type:DIN-4 Male
    Output Voltage:27.2 VDC
    Output Current:4.40 A

    Features

    PFC Function:Yes
    AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
    Efficiency:90%
    Power Rating:120 W
    ,
