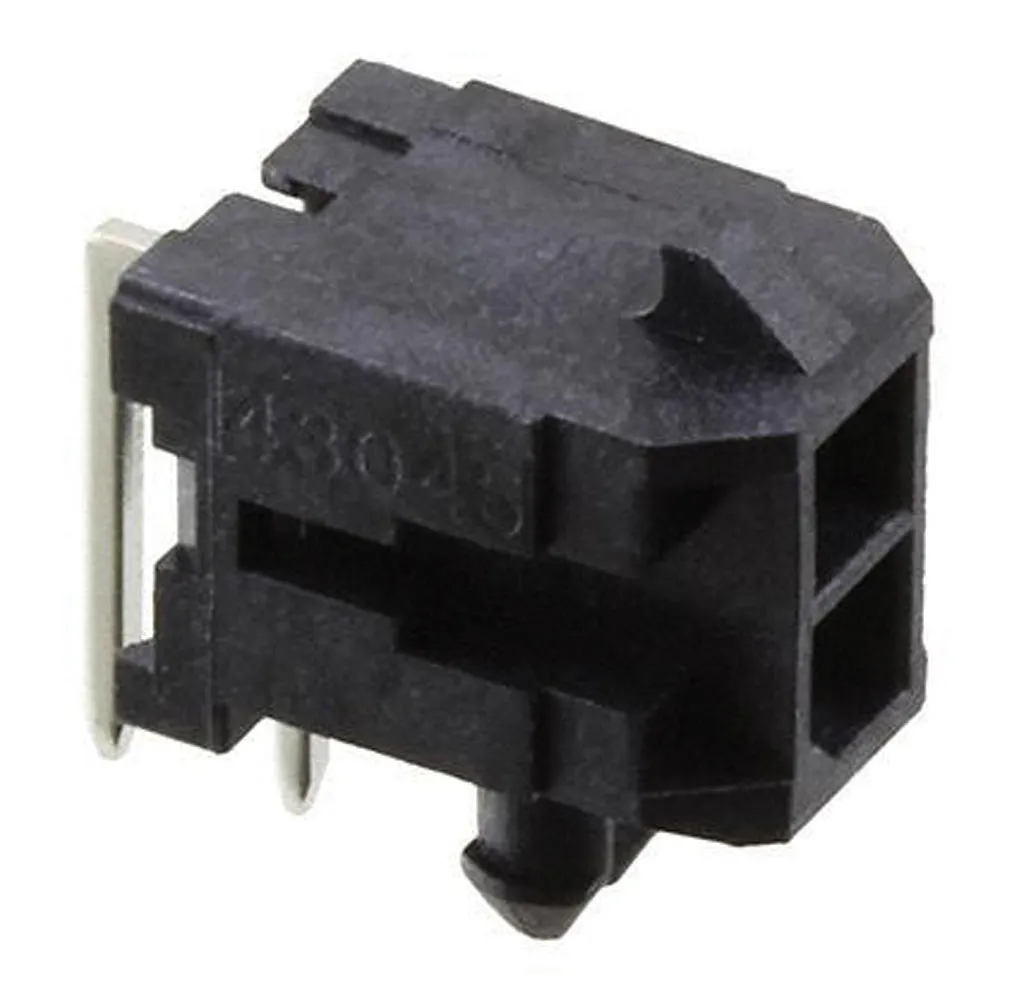

2 Positions Right Angle Through Hole Header Connector Tin

Specifications

• Series: Micro-Fit 3.0™ 43045
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.118" (3.00mm)
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Number of Positions: 2
• Number of Positions Loaded: All
• Number of Rows: 2
• Row Spacing - Mating: 0.118" (3.00mm)
• Mounting Type: Through Hole, Right Angle
• Termination: Solder
• Fastening Type: Locking Ramp
• Contact Length - Post: 0.125" (3.18mm)
• Insulation Height: 0.290" (7.37mm)
• Contact Shape: Square
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: 100µin (2.54µm)
• Contact Finish - Post: Tin
• Contact Material: Brass
• Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
• Features: Board Lock
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Applications: General Purpose, Medical, Military, Telecommunications
