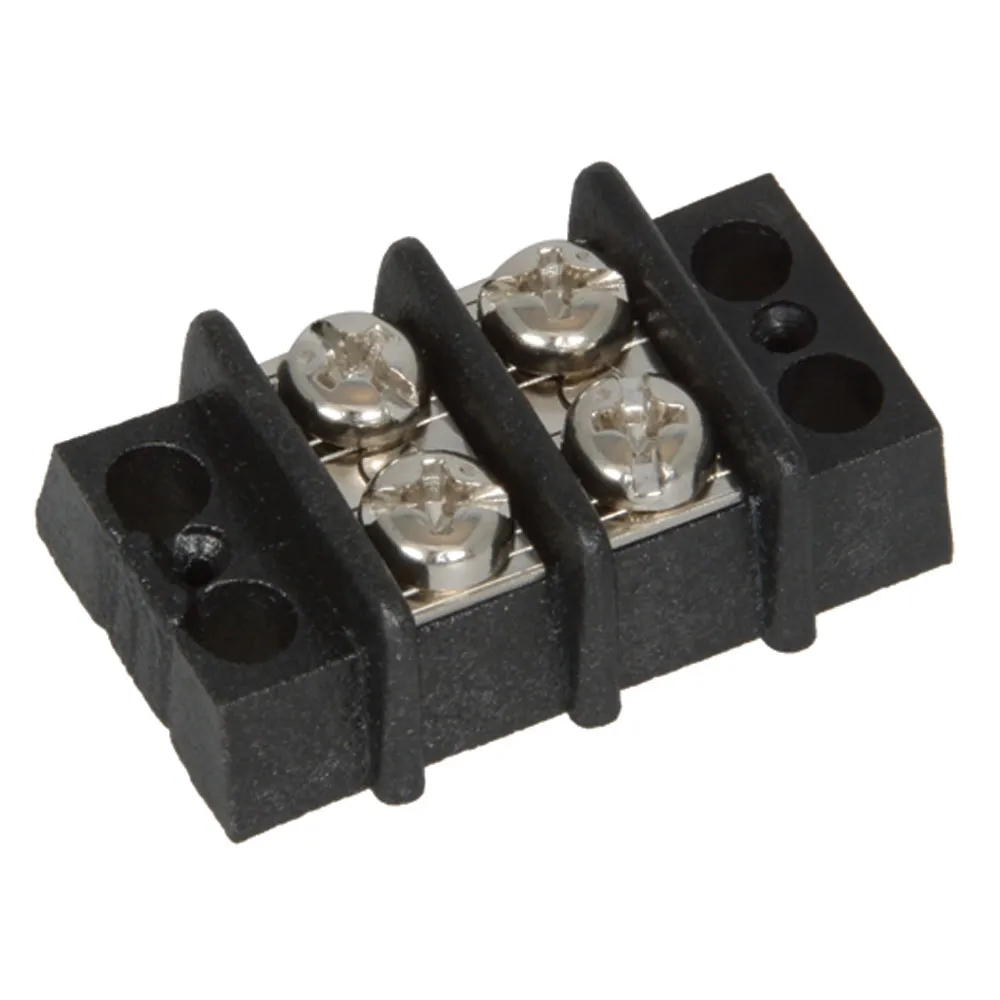

2 Position Standard Double Row Terminal Block

These are most commonly used to terminate wires and eliminating splicing.

Specifications

  • Series indicator: 0.433" Centerline Dual flow
  • Pitch: 0.375"
  • Open bottom
  • No. of positions: 2
  • Material: Phenolic, glass reinforced, rated UL94V-0
  • Contacts: Brass, nickel plated
  • Screws: Steel, nickel plated (Slotted 5-40 x 3/16" BH screws)
  • Operation voltage: 300V AC max.
  • Operating temperature: -40°C to 105°C
  • Spade tongue terminal stud size: #4, #5, or #6

Product Identification

Product Type:Dual Row Barrier Strip
Manufacturer Series:TDA

Dimensions & Appearance

Body Orientation:Straight
Mounting:Chassis, Panel
Depth:19.5 mm
Length:36 mm

Operating conditions

Maximum Operating Temperature:105°C
Minimum Operating Temperature:-40°C

Features

Number of Positions:2
Number of Rows:2
Housing Color:Black
Contact Material:Brass
Top Termination:Screw, M3.5
Bottom Termination:Open Bottom
Housing Material:PheNolic
Pitch:0.375 in., 9.53 mm
Contact Plating:Tin
Wire Gauge (AWG):18-12
Voltage Rating:300 VAC
Current Rating:10 A
,
