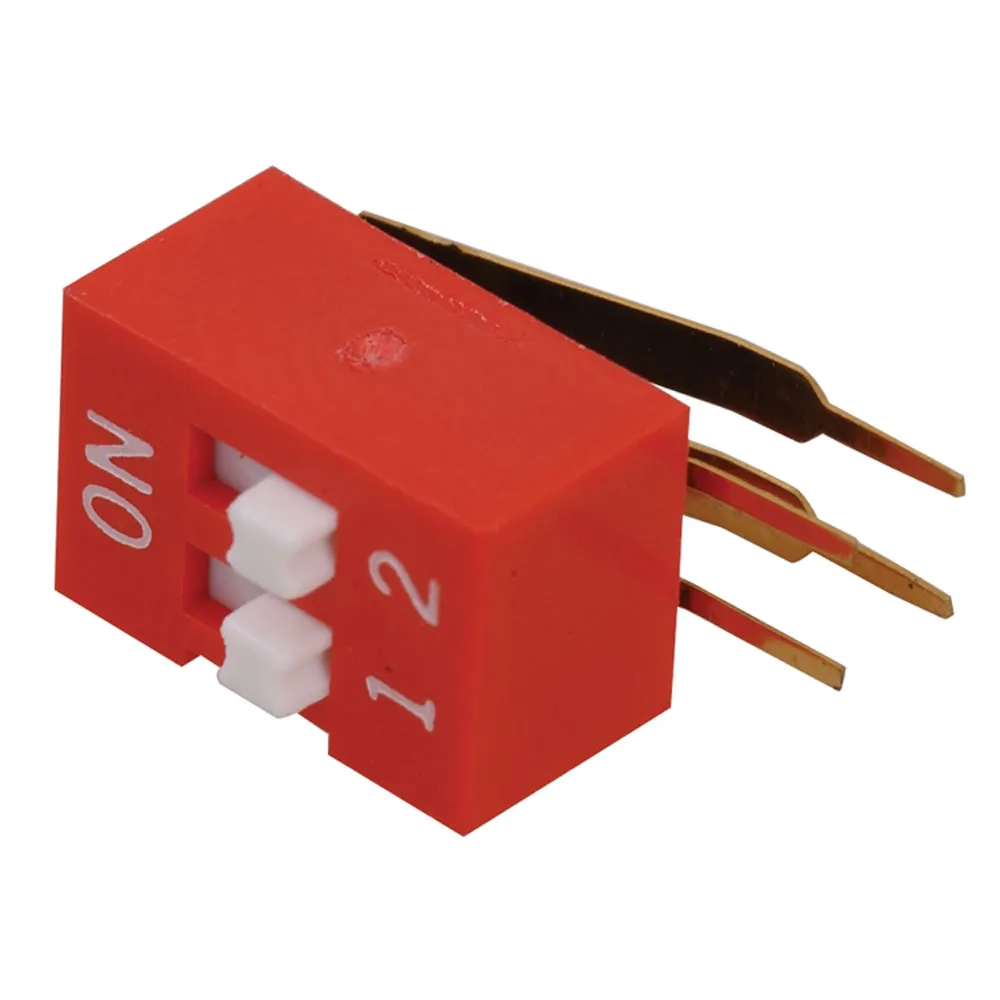

Right-Angle Slide-Raised DIP Switch
Switch Contacts: SPSTFeatures:
- 4-pin, 2-position
- Compatible socket: 112193
Product Identification
Family:SDA
Product Type:DIP Switch
Dimensions & Appearance
Body Orientation:Right Angle
Mounting:Through Hole, Right Angle
Depth:9.82 mm
Height:9.9 mm
Length:6.44 mm
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C
Packaging
Packaging:Tube
Features
Maximum Non Switching Current:100mA
Number of Positions:2
Total Pitch:2.54 mm
Minimum Insulation Resistance:100MOhm
Actuator Material:Glass Fiber/Polybutylene Terephthalate
Current Rating:0.025A@24VDC
Dielectric Strength:500VDC
Terminal Type:PC Pins
Contact Plating:Gold/Nickel
Contact Material:Phosphor Bronze
Pitch:2.54 mm
Contact Form:SPST
Voltage Rating:24 VDC
Actuator Type:Slide Raised (Standard)
