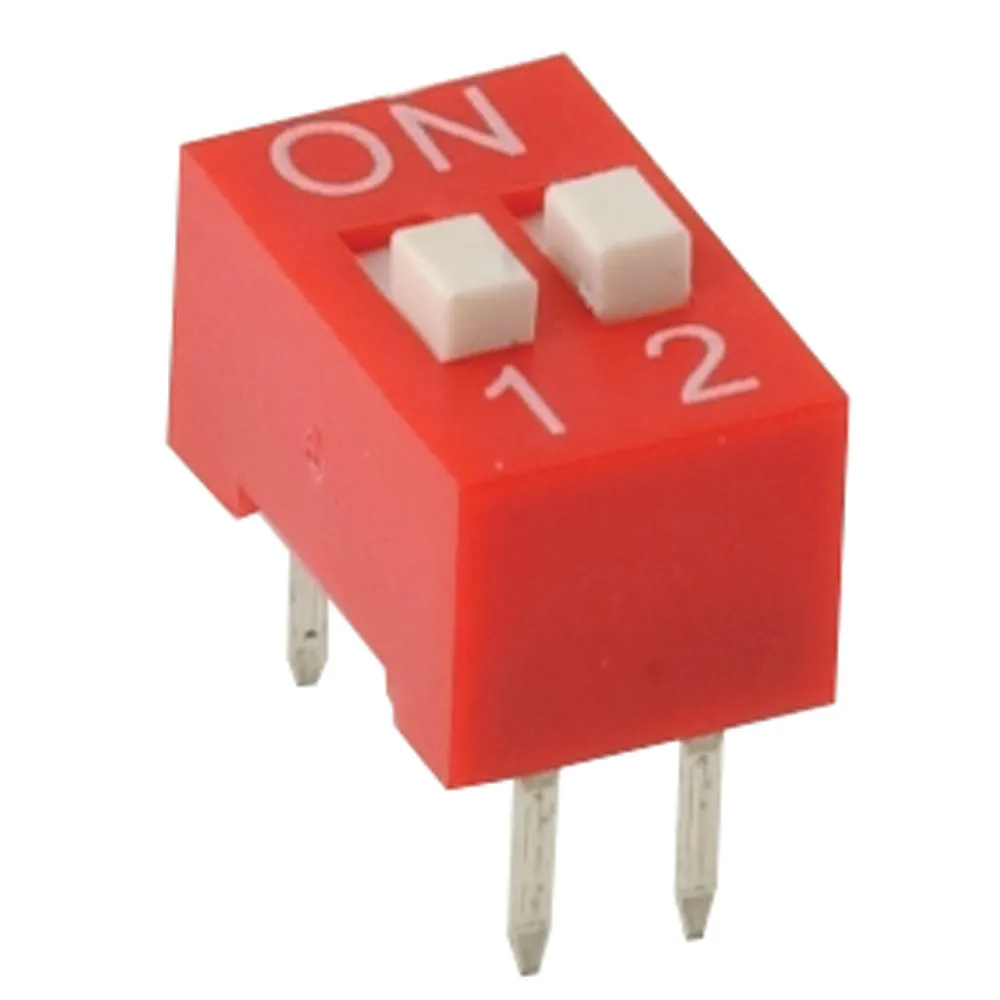

Standard Slide-Raised DIP Switch

Switch Contacts: SPST

Features:

  • 4-pin, 2-position
  • Gold-plated contacts
  • Compatible socket: 112193

Product Identification

Family:ValuePro
Product Type:DIP Switch

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Body Orientation:Straight
Mounting:Through Hole
Depth:9.6 mm
Length:8.08 mm

Features

Number of Positions:2
Total Pitch:2.54 mm
Contact Material:Brass
Actuator Material:Polyamide
Contact Plating:Gold
Terminal Type:PC Pins
Pitch:2.54 mm
Contact Form:SPST
Actuator Type:Slide Raised (Standard)
,
