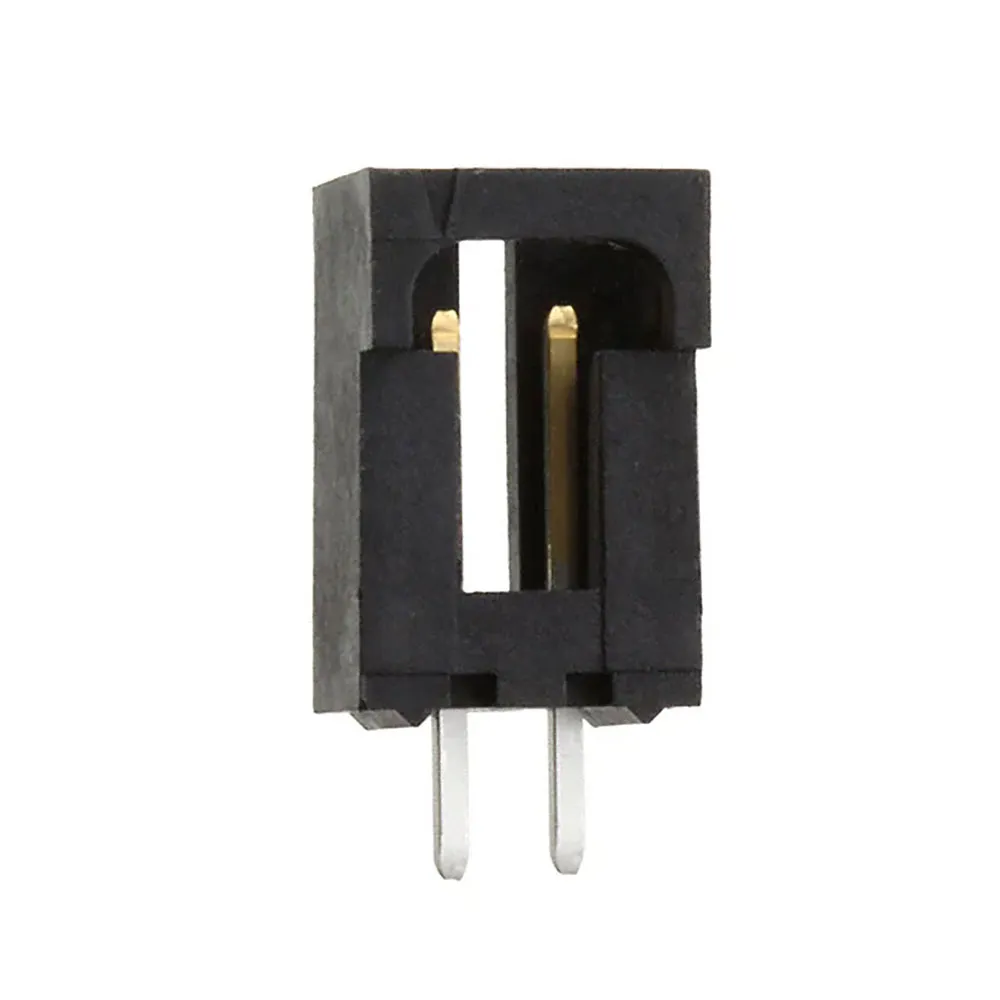

2 Position Header Connector Through Hole 0.1" (2.54mm)

Specifications

  • Series: SL 70543
  • Connector Type: Header
  • Contact Type: Male Pin
  • Number of Positions: 2
  • Number of Rows: 1
  • Pitch - Mating: 0.1" (2.54 mm)
  • Row Spacing - Mating: n/a
  • Number of Positions Loaded: All
  • Style: Board to Cable/Wire
  • Shrouding: Shrouded - 4 Wall
  • Mounting Type: Through Hole
  • Termination: Solder
  • Fastening Type: Latch Holder
  • Contact Length - Mating: 0.24" (6.1 mm)
  • Contact Length - Post: 0.13" (3.3 mm)
  • Overall Contact Length: 0.47" (11.94 mm)
  • Insulation Height: 0.465" (11.8 mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 15.0µin (0.38µm)
  • Contact Finish - Post: Tin
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polyester, Glass Filled
  • Operating Temperature: -40°C to 105°C
  • Ingress Protection: n/a
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Current Rating: n/a
  • Voltage Rating: 250 V
  • Mated Stacking Heights: n/a
  • Contact Finish Thickness - Post: 74.8µin (1.90µm)
  • Applications: Automotive, General Purpose, Industrial, Medical
  • Base Number: 070543

,
