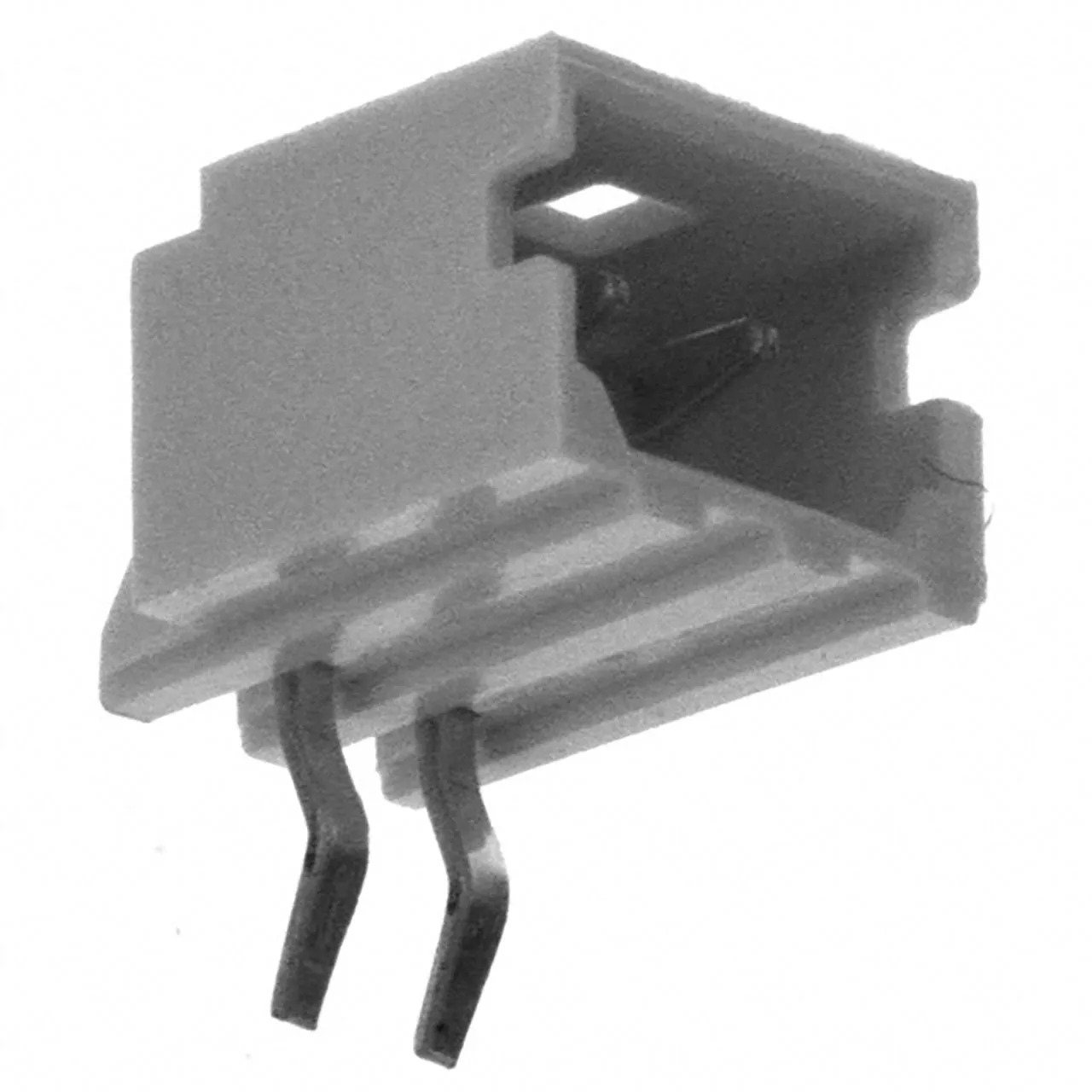

2 Position 1 Row Through Hole Right Angle Connector Header 0.079" (2.00mm)

Features

  • Connector Type: Header
  • Contact Type: Male Blade
  • Pitch - Mating: 0.079" (2.00mm)
  • Number of Positions: 2
  • Number of Rows: 1
  • Number of Positions Loaded: All
  • Style: Board to Cable/Wire
  • Shrouding: Shrouded - 4 Wall
  • Mounting Type: Through Hole, Right Angle
  • Termination: Press-Fit, Solder
  • Fastening Type: Detent Lock
  • Contact Length - Mating: 0.122" (3.10mm)
  • Contact Length - Post: 0.138" (3.50mm)
  • Insulation Height: 0.183" (4.65mm)
  • Contact Shape: Rectangular
  • Contact Finish - Mating: Tin
  • Contact Finish - Post: Tin
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: White
