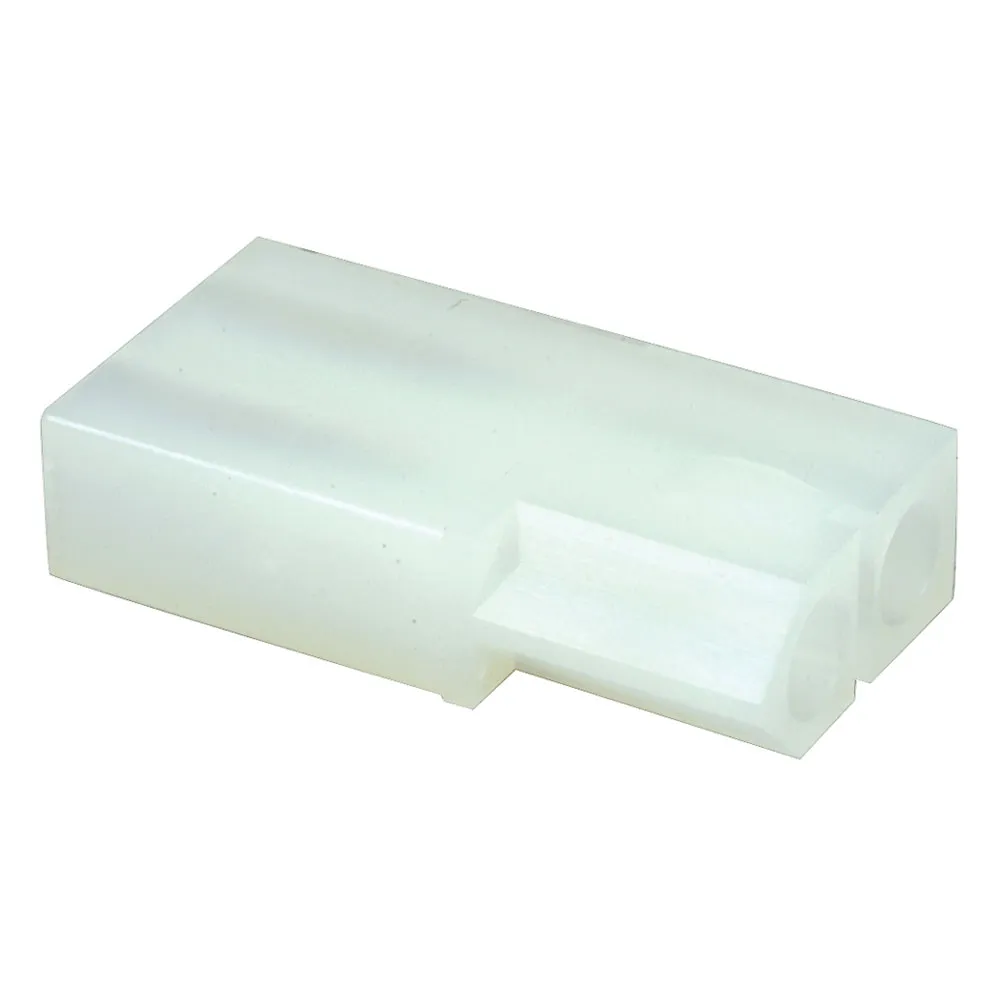

0.093" (2.36mm) Power Connector Receptacle

Features:

  • Diameter size: 0.093 inches (2.36mm)
  • Pitch: 0.248 inches (6.30mm)
  • Current rating: 14.0A
  • Number of circuits: 2
  • Plug type: Free-hanging
  • Pattern: In-line
  • Passive friction lock
  • Housing material: Nylon; UL94V-2
  • Temperature range: -40°C to +105°C
  • Contact retention to housing: 20 lbs. minimum

    Compatible Mating Information:
  • Crimp pin Male: 224207
  • Crimp pin Female: 224215
  • Connector Plug: 224071
  • Crimp tool: 308030

    • ,
