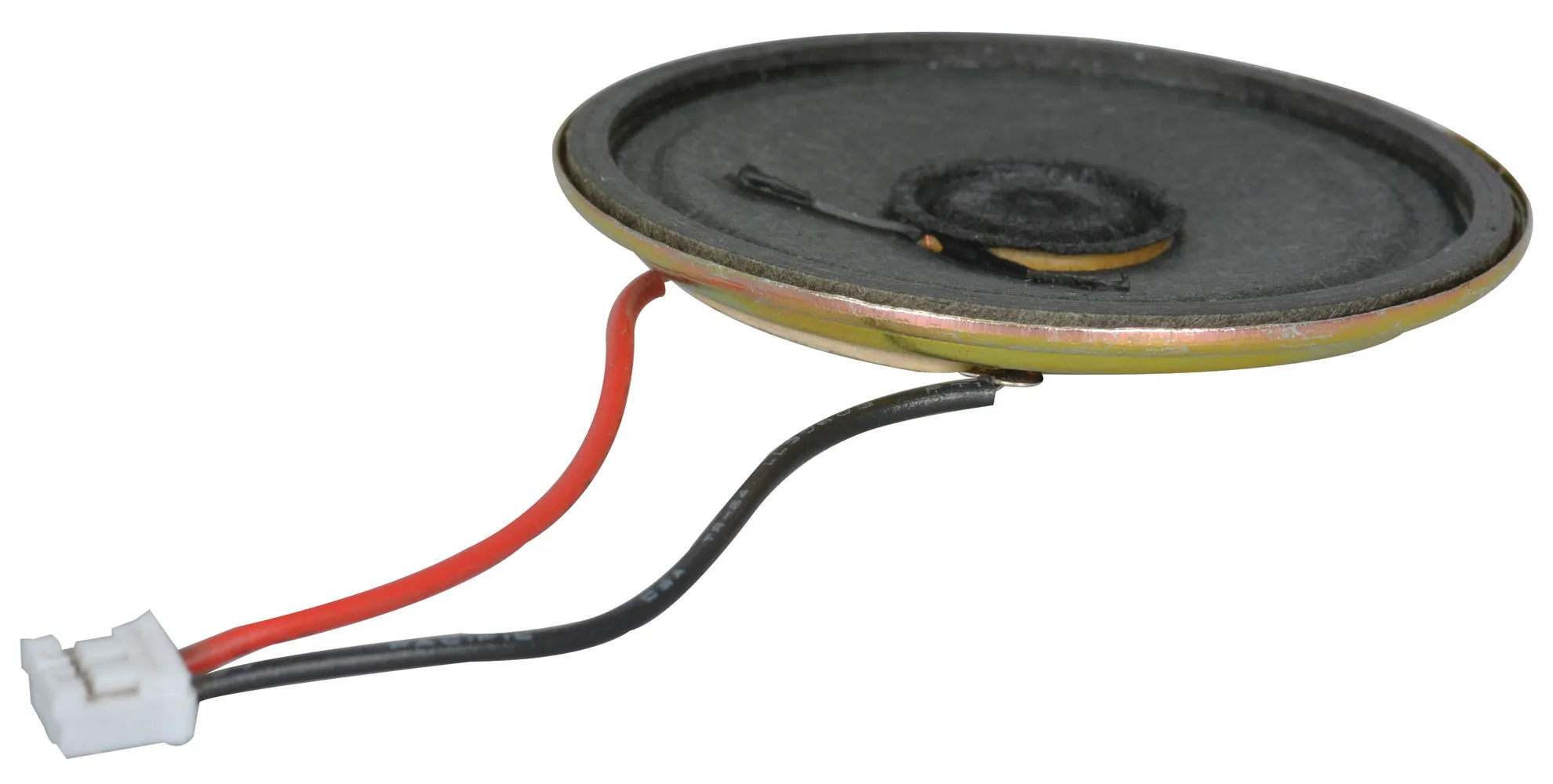

2 Inch Round Paper Ferrite Speaker with 2 Inch Leads and 2-Pin Female Connector

Features:

  • Paper diaphragm
  • Large magnet
  • Anodized metal surfaces
  • Braided copper voice coil leads
  • Pre-tinned speaker lugs with wires attached
  • Input Power: 0.1 W nominal / 0.2W maximum
  • Sound output: 83dB
  • Frequency: 500 - 8000Hz
  • Impedance: 8Ω
  • Magnet size: 1.3"Dia. x 0.4"H
  • Speaker size: 2.0"Dia. x 0.7"D
  • 2" wire leads with 2-pin female connector

Dimensions & Appearance

Depth:0.7 in.
Diameter:2 in.
Width:N/A
Length:N/A

Input

Input Power (max) (W):2
Nominal Input Power (W):0.7

Output

Output:83 dB

Features

Termination Method:Wires with conn.
Impedance:8 Ohm
Magnet Size (Diameter x H) (inches):1.30 x 0.40
Frequency Range:500 Hz to 8000 Hz
,
