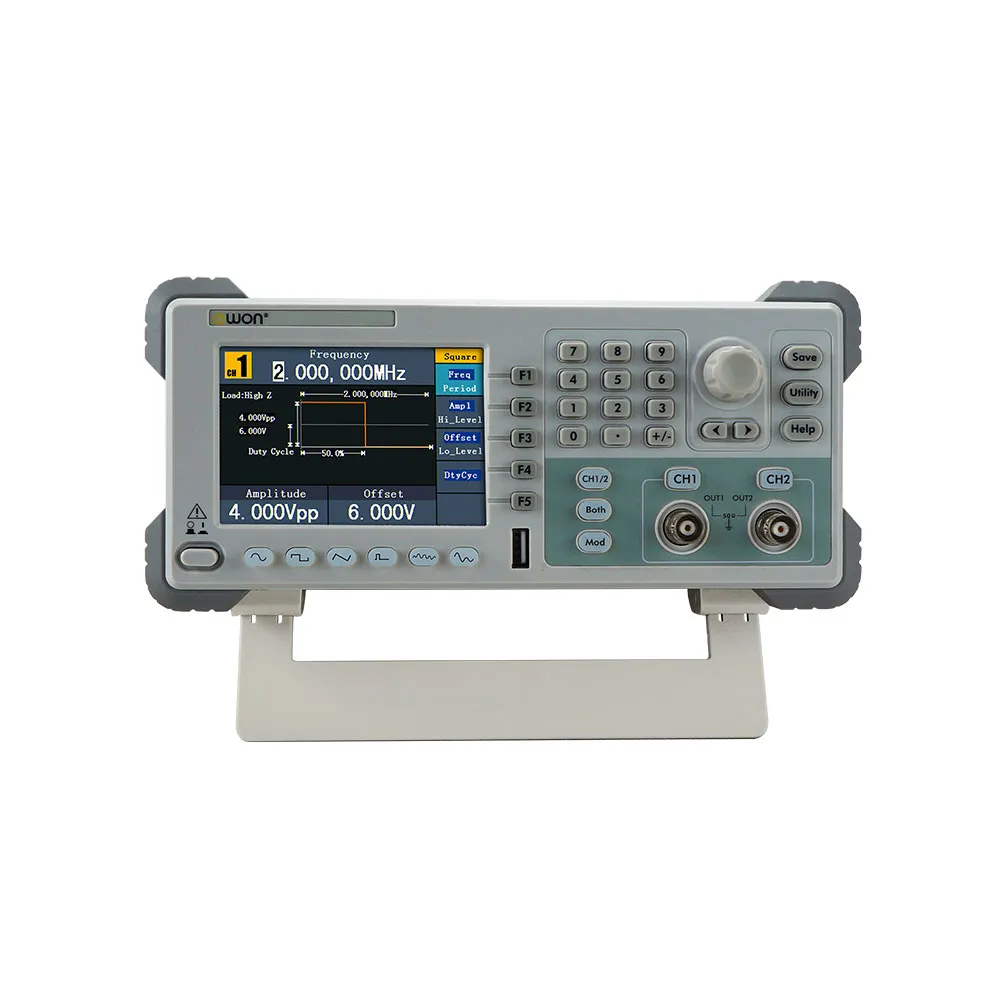

2 Channel Arbitrary Waveform Generator with Counter 10 MHz 125 MS/s 14 bits 4" LCD

Specifications

• High-accuracy frequency counter integrated, supports range of 100 mHz to 200 MHz
• Advanced DDS technology
• Frequency Output: 10 MHz
• Frequency Resolution: 6 digits/s
• Channel: Single + trigger
• 125 MS/s sample rate and 1 µHz frequency resolution
• Vertical Resolution: 14-bits, and up to 8K arb waveform length
• Comprehensive Waveform Output: 5 basic waveforms, and 45 built-in arbitrary waveforms
• Standard Waveforms: Sine, Square, Pulse, Ramp, and Noise
• Comprehensive Modulation Functions: AM, FM, PM, FSK, ASK, PSK, Sweep, and Burst
• SCPI and LabVIEW supported
• 4" high-resolution LCD (480x320 pixels)
• Input/Output Type: External reference clock input/output
• Communication Interface: USB host, USB device, RS232 (option)
• Size: 235 x 110 x 295 mm (WxHxD)

Resources & Downloads

• SCPI protocol for AG Series AWG (.pdf)
• USB driver for all series OWON DSO and AWG (.zip)
• PC software for AG Series arbitrary waveform generator (.zip)
• AWG's USB Driver installation guide (.zip)
