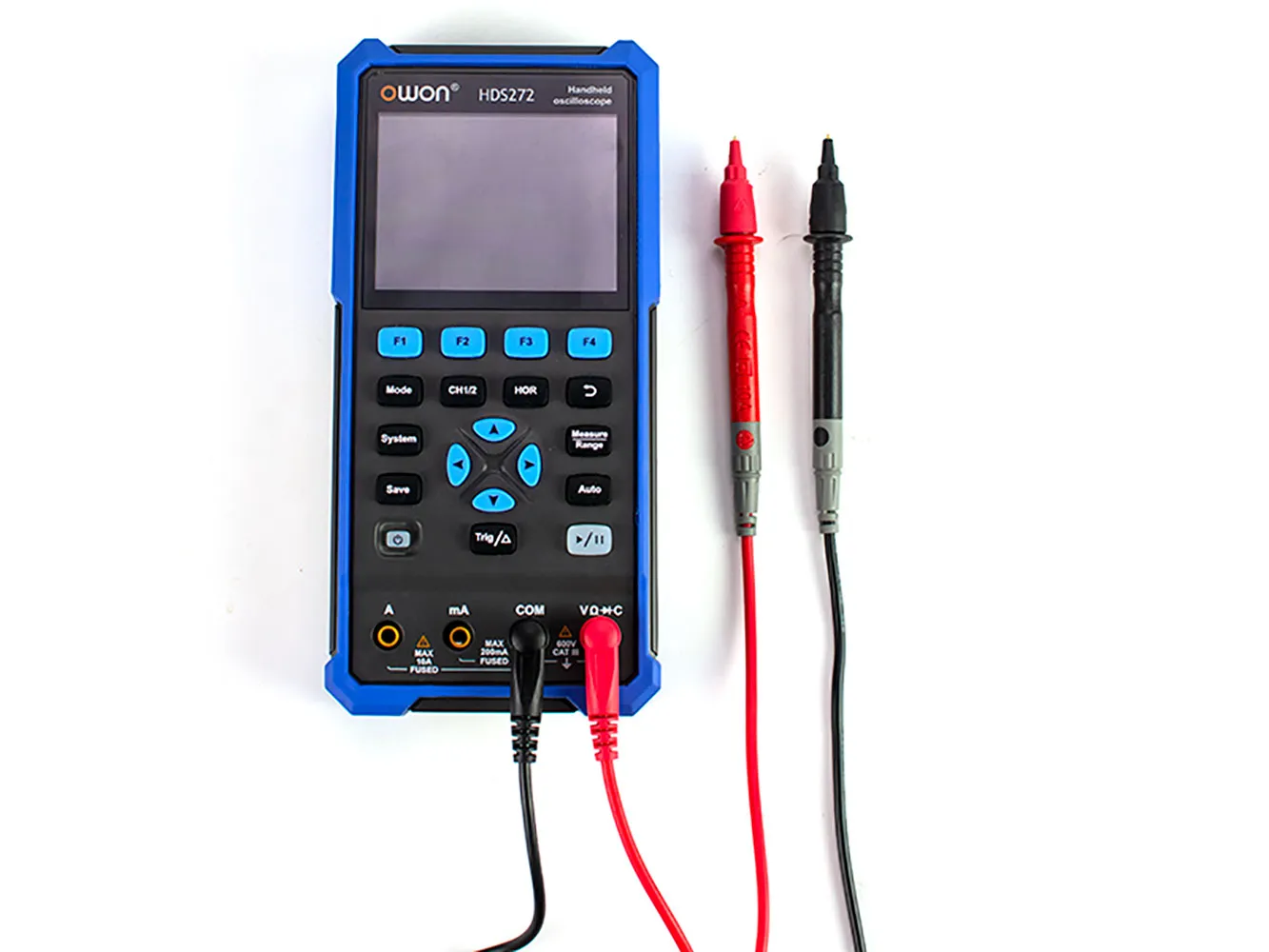

2 Channel 70 MHz Handheld Oscilloscope Waveform Generator & DMM 250 MS/s 8-bits 3.5" LCD

Specifications

• Oscilloscope, waveform generator and multimeter in one
• 3.5" high resolution high-contrast color LCD, suitable for outdoor use
• 18650 lithium battery, comprehensive power consumption <3W, can work continuously for about 6 hours
• USB Type-C interface, supports power bank and PC software connection
• Self-calibration function
• SCPI supported to facilitate secondary development
• Bandwidth: 70 MHz
• 2 channel oscilloscope + 1-channel generator
• Record Length: 8K
• Waveform Refresh Rate: 10,000 wfms/s
• Vertical Resolution: 8 bits
• Automatic Measurement: Period, Frequency, Mean, PK-PK, Max, Min
• DMM Resolution: 20,000 count
• DMM Functions: Voltage, Current, Resistance, Capacitance, Diode and Continuity Test
• DMM Max Input Voltage: AC 750V, DC 1000V
• DMM Max Input Current: AC 10A, DC 10A
• Diode: 0 to 2V

Wafeform Generator

• Sampling Rate: 125 MSa/s
• Single channel
• Frequency Output: Sine, Square, Ramp, Pulse, Arbitrary
• Frequency Resolution: 0.1 Hz
• Vertical Resolution: 14 bits
• Amplitude Range: 20 mVpp to 5 Vpp
• waveform Length: 8K
