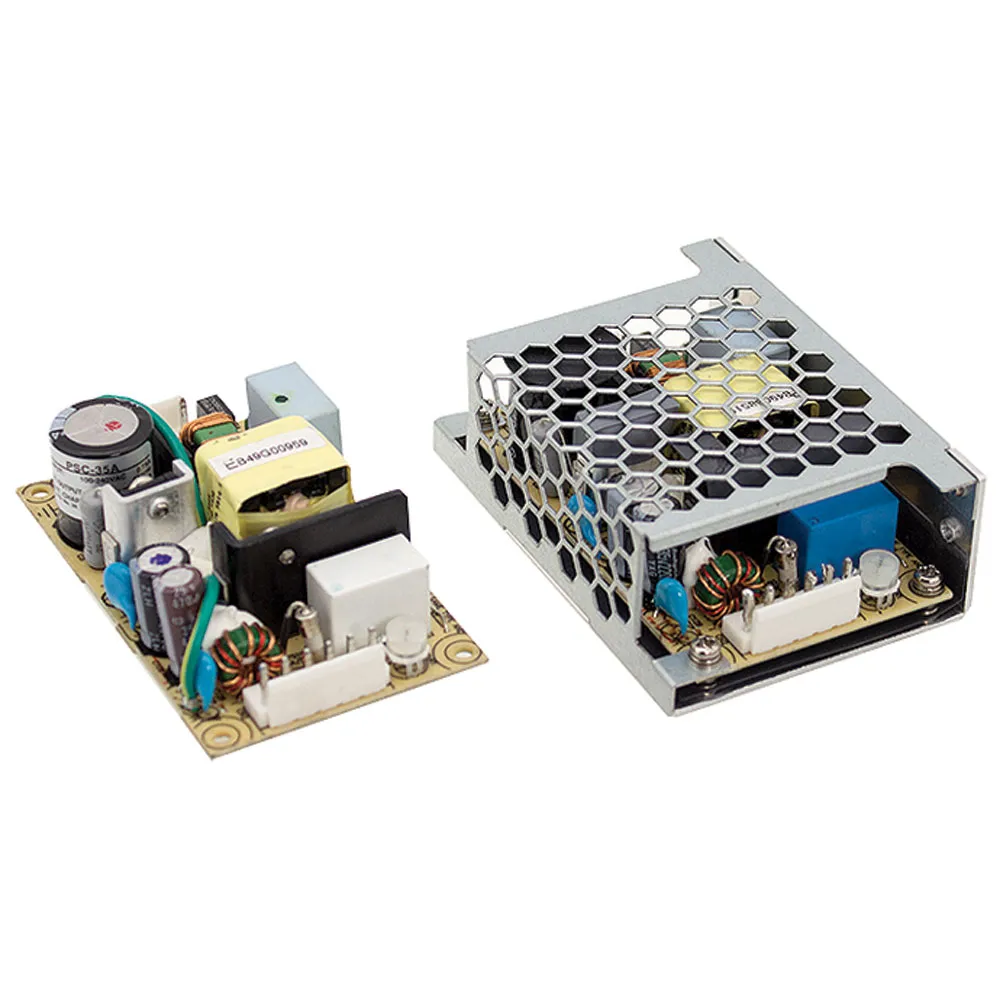

2 Channel 35 W Single Output w/ Battery Charger Power Supply

Find out more about MEAN WELL Security Power Solutions.

Specifications

  • Output Voltage (V): 27.6
  • Rated Current (A): 0.85 (Ch1), 0.45 (Ch2)
  • Rated Power (W): 35.88
  • Ripple & Noise (mV p-p): 240
  • Efficiency (%): 86
  • Line Regulation (%): ±0.5
  • Load Regulation (%): ±0.5
  • Frequency range (Hz): 47 - 63
  • Dimensions(L x W x H): 3.33" x 2" x 0.94"

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:PSC-35

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:PCB
Color:Silver
Height:1 in.
Width:2 in.
Length:3.3 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:0.75 A

Output

Number of Outputs:1
Output Current (Channel 1):0.85 A
Output Voltage (Channel 1):27.6 VDC
Output Connector Type:Screw Terminal Block
Output Voltage:27.6 VDC
Output Current:0.85 A

Features

PFC Function:No
Minimum Isolation Voltage:3000V
Efficiency:86%
Power Rating:35.88 W
,
