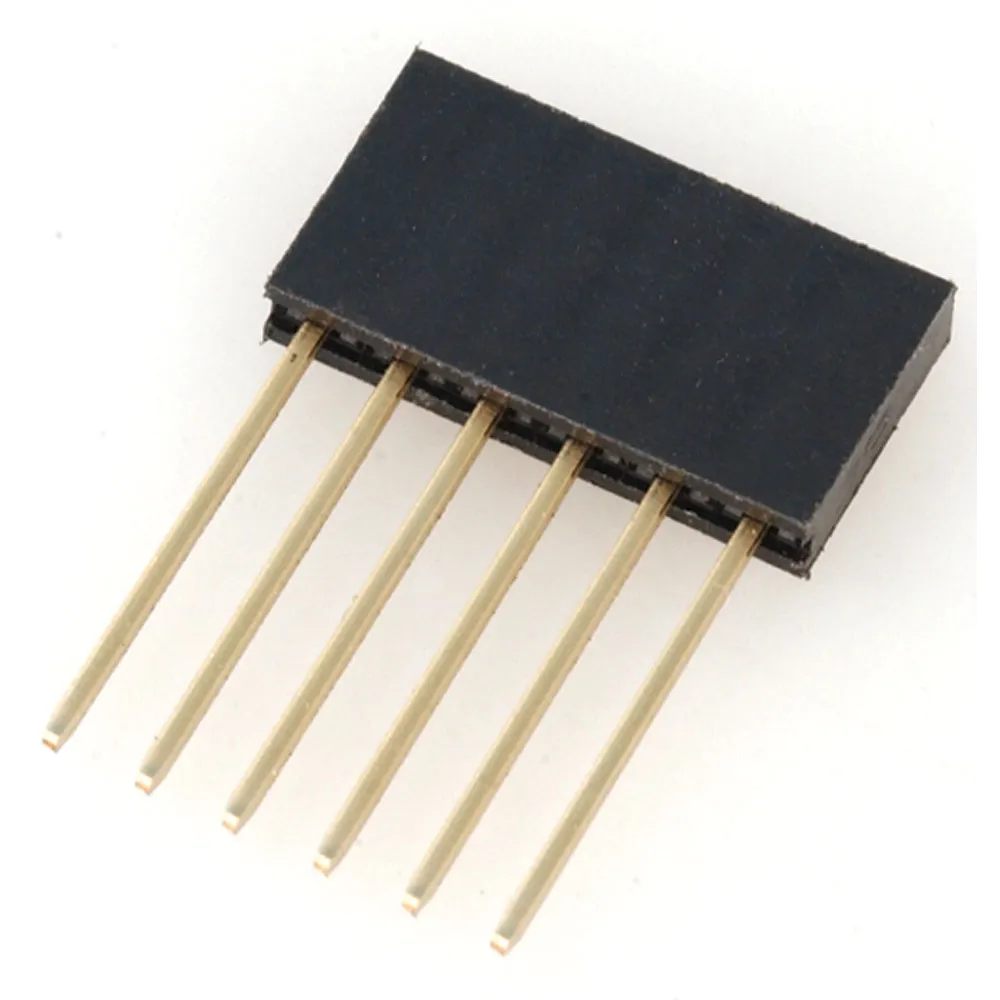

1x6 Position Pass-Through Style Header for Arduino Shields

Features:

  • Single row, 6-position header
  • 0.100" pitch
  • Pin length: 15mm (0.6")
  • Insulator: PBT, glass reinforced, rated UL94V-0
  • Contacts: Phosphor bronze
  • Operating voltage: 250 VAC max.
  • Current rating: 3A max.
  • Contact resistance: 20mΩ max.
  • Insulation resistance: 5000 MΩ
  • Operating temperature: -40°C to +105°C
  • Also available in the Pass-Through Header Pack for Arduino Shields (P/N: 2137756)

    • Dimensions & Appearance

    Depth:8.5 mm
    Length:15.74 mm
    Body Orientation:Straight

    Features

    Number of Rows:1
    Housing Color:Black
    Maximum Contact Resistance:20 mOhm
    Number of Contacts:6
    Contact Plating:Gold
    Gender:Female
    Contact Material:Phosphor Bronze
    Housing Material:Polybutylene Terephthalate
    Pitch:2.54 mm
    Voltage Rating:250 VAC
    Current Rating:3 A
    ,
