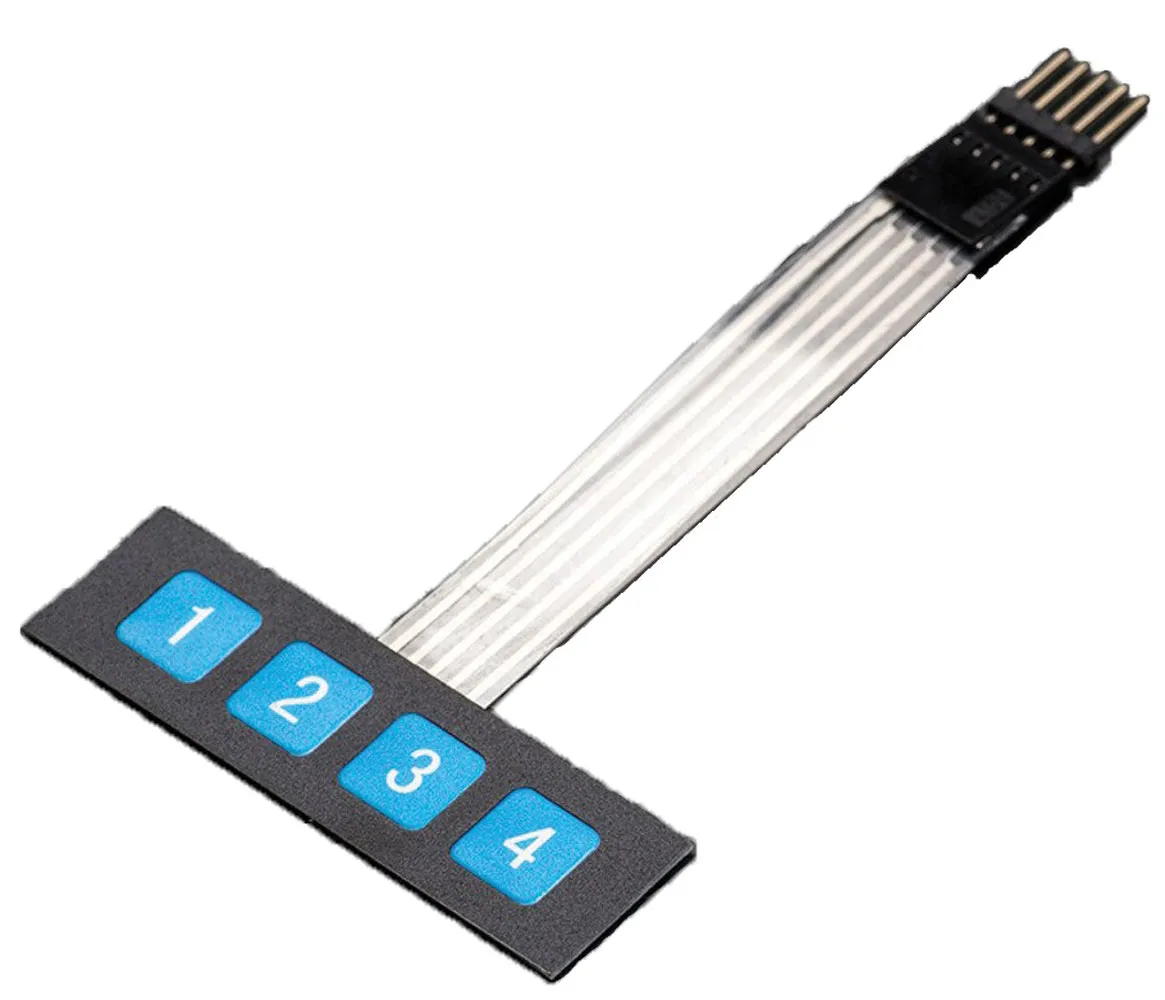

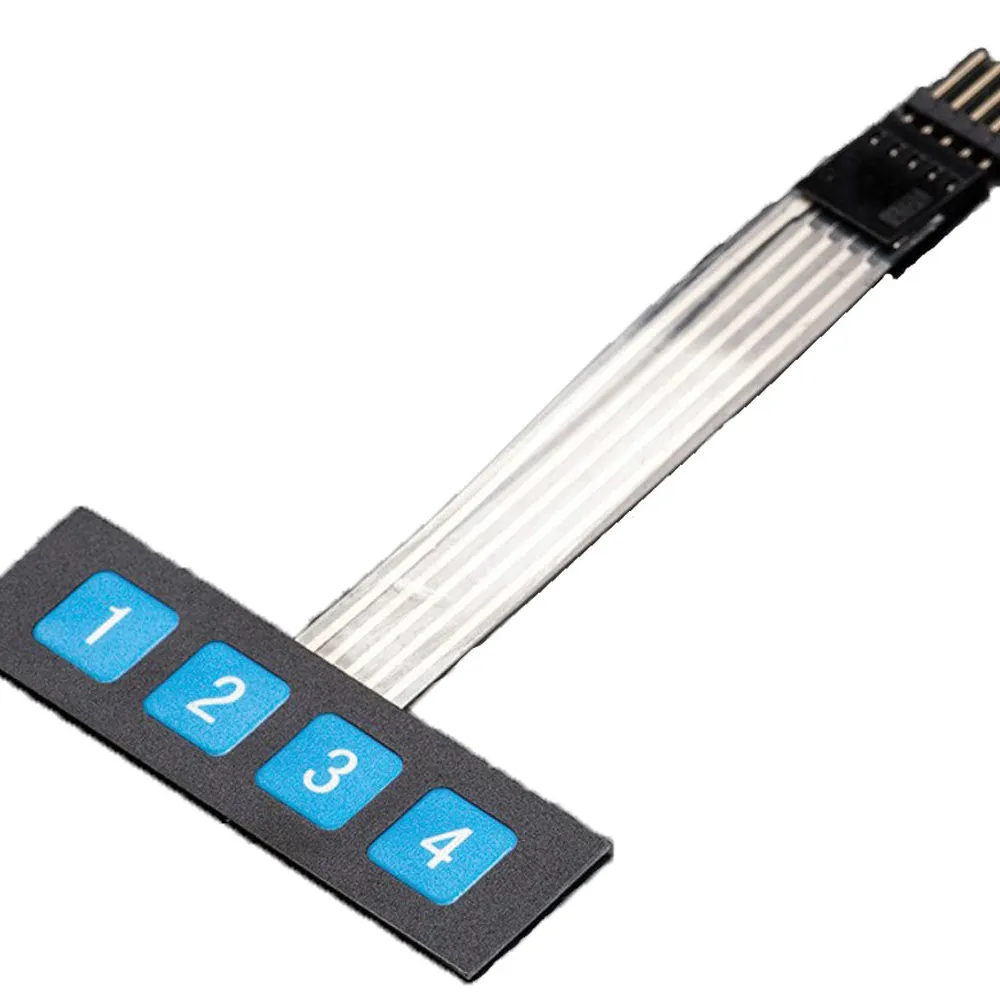

1x4 Membrane Keypad

Enter your secret key into this numeric membrane keypad. This keypad has 4 buttons, and since every key has its own wire line, no matrix code is required; just treat these like every day switches. The membrane is soft and has a removable paper backing to expose a strong adhesive, so you can stick this on an enclosure and feed the cable through a slot. It's a simple keypad, but that's why everyone likes it.

It comes with a 5-pin extra-long header strip so you can plug this into a breadboard with ease.

Specifications

• 5-pin 0.1" pitch connector
• Weight: 2.83g
• Keypad dimensions: 69.14mm / 2.72" x 20.07mm / 0.79"
• Length of cable and connector: 87.31mm / 3.43" x 14.28mm / 0.56"
