1X and 10X Oscilloscope Probe 200MHz

Specifications

  • Bandwidth: 200 MHz
  • Rise Time: 1.75 ns
  • Input Capacitance: 85 pF to 120 pF (1X); 18.5 pF to 22.5 pF (10X)
  • Compensation Range: 10 pF to 35 pF
  • Input Resistance: 1M Ohm/ 10M Ohm ±2%
  • Max Rated Voltage: 300 Vrms CAT II (10X)
  • Cable Length: ~51"

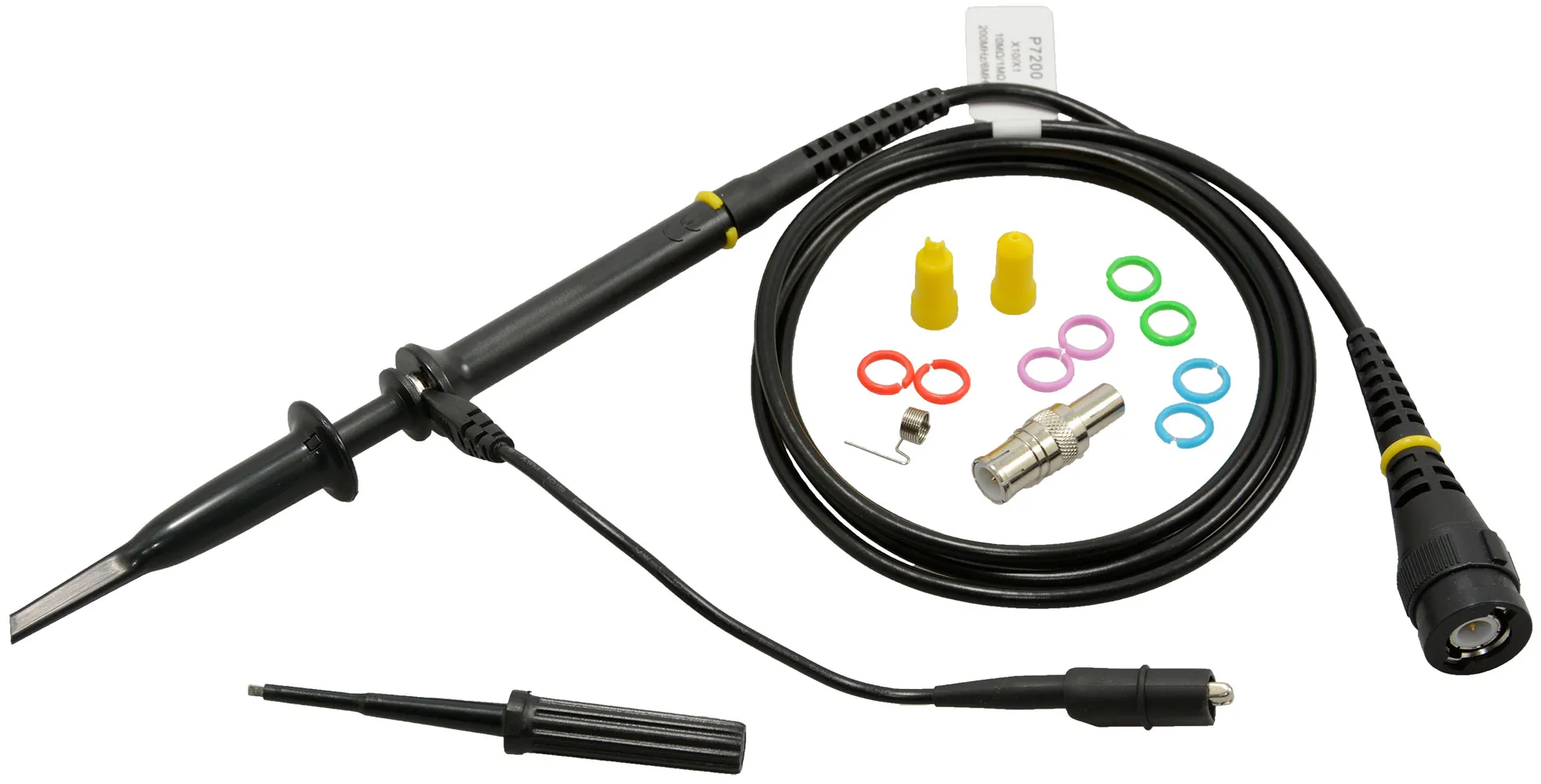

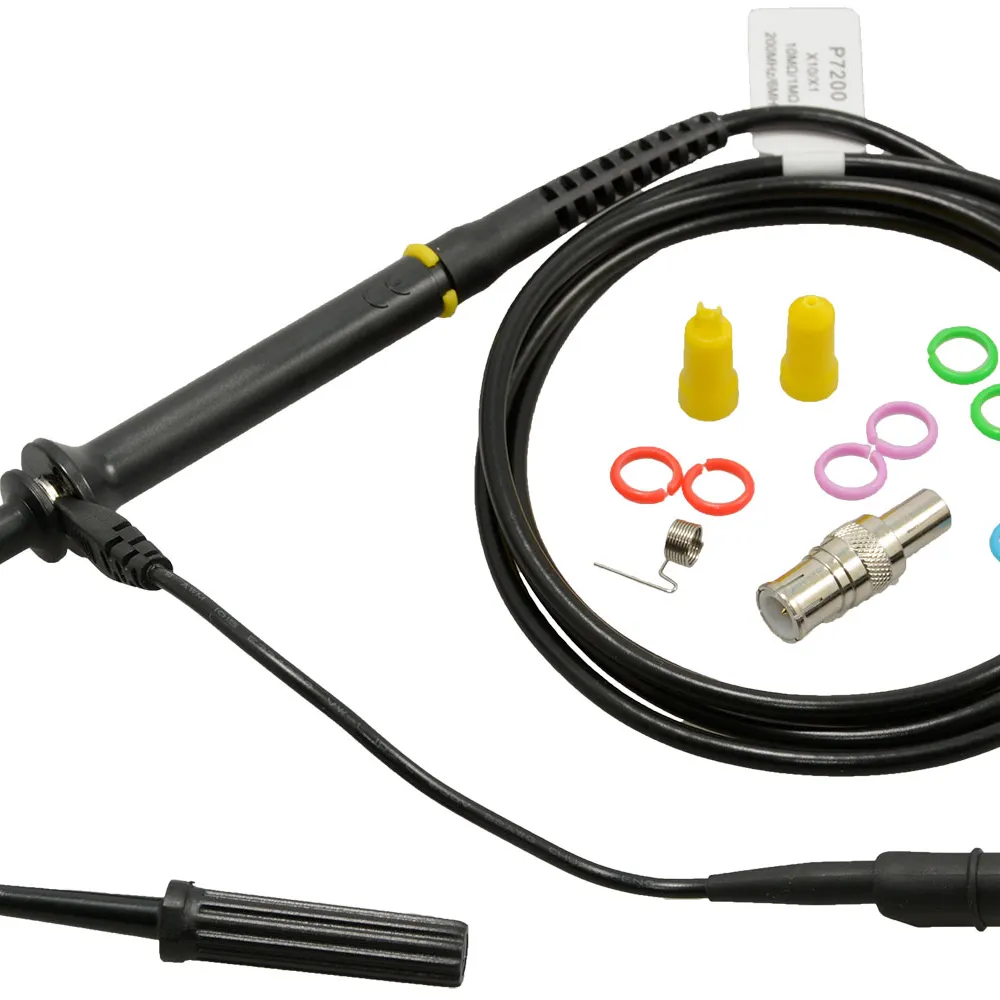

Contains

  • (1) Retractable Hook Tip
  • (1) Adjustment Tool
  • (2) Locating Sleeve
  • (1) Ground Spring
  • (1) Ground Lead
  • (8) Maker rings (yellow, pink, blue and green, 2 each)

Product Identification

Product Type:Test Probe

Dimensions & Appearance

Length:51 in.

Features

Attenuation Ratio:10:1, 1:1
Resistance:1M Ohm, 10M Ohm
Bandwidth:200 MHz
Capacitance:85-120 pF(1X), 18.5-22.5 pF(10X)
Voltage Rating:300 Vrms
,
