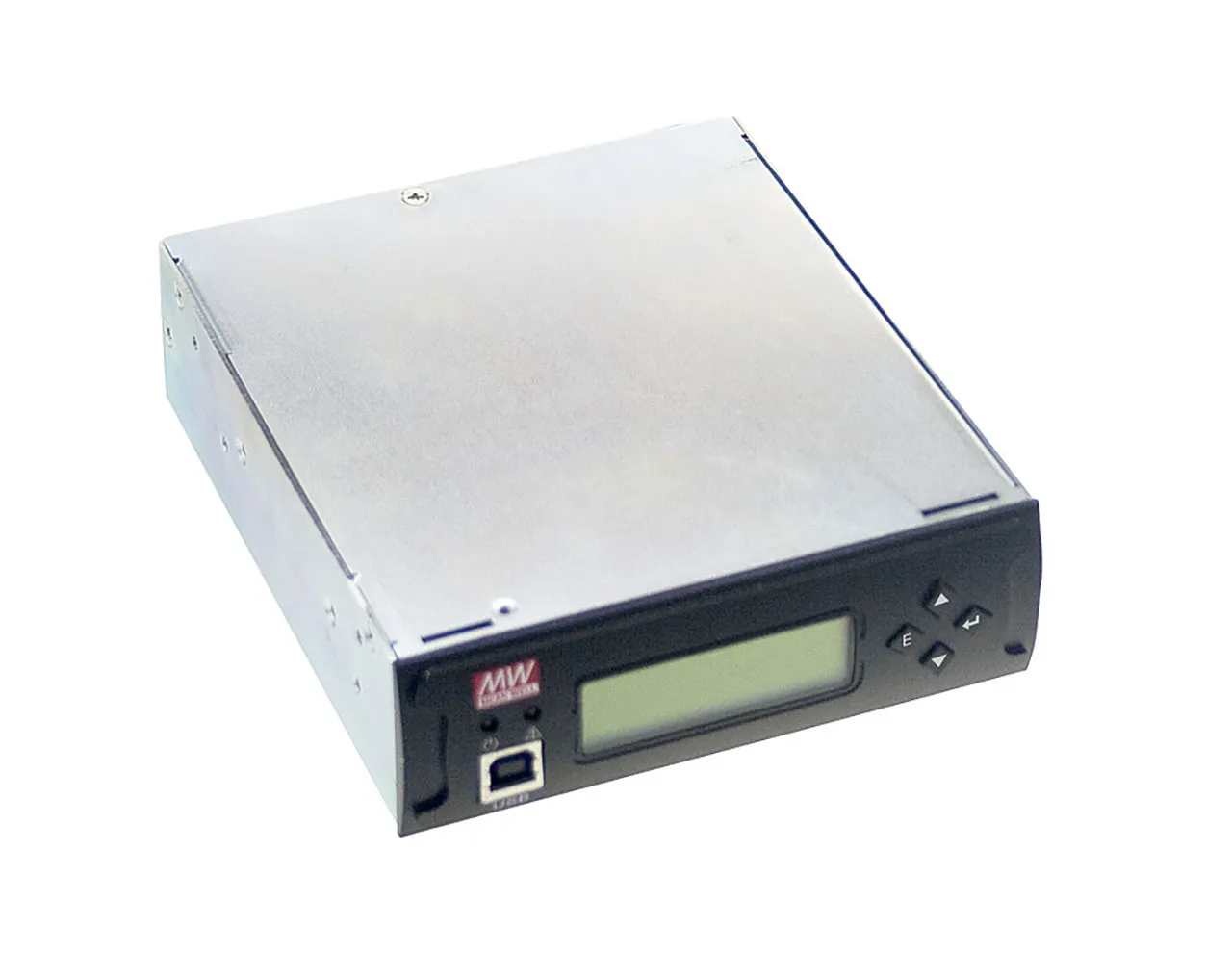

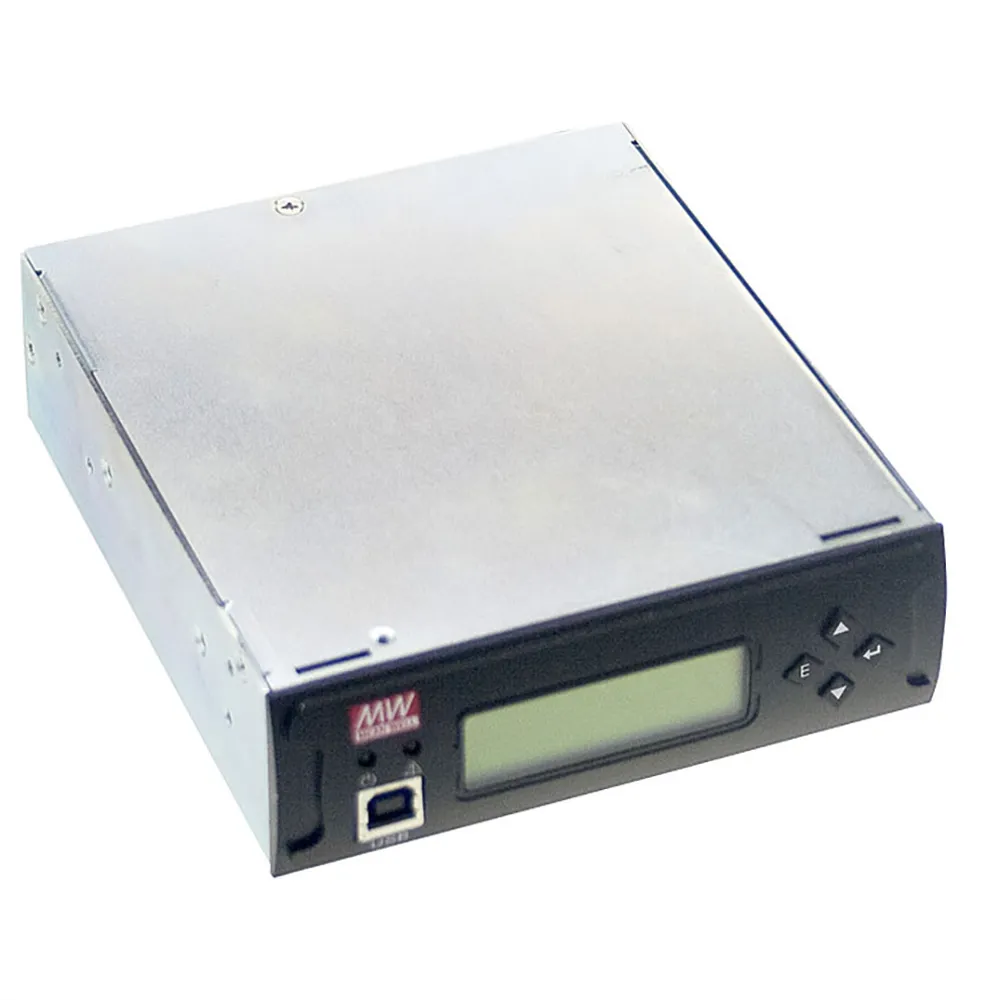

1U Rack Control and Monitoring Unit
The RKP-CMU1 is a fully digitalized control and monitoring unit for the RCP-2000 power system. It is equipped with USB, RS-232, and ethernet interface, it can be connected locally to a PC to execute the control and monitoring tasks. With four built-in configurable relay contacts, users can flexibly monitor specific events or alarms and react suitable action accordingly.Features:
- Terminal block
- Type 2 component assemblies
- Line to Ground & Line to Line protected
- Refer to UL1449 3rd Edition
- Parallel (3 wires) connection style
- LED status indicator
- Suitable for LED driver surge protection
- IP67 design for indoor or outdoor installations
Product Identification
Product Type:Regulated SMPS
Manufacturer Series:RKP
Compliance
Agency Approvals: TUV, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:1.7 in.
Width:13.8 in.
Length:19.2 in.
Operating conditions
Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1 A
Output
Number of Outputs:0
Features
Minimum Isolation Voltage:3000V
