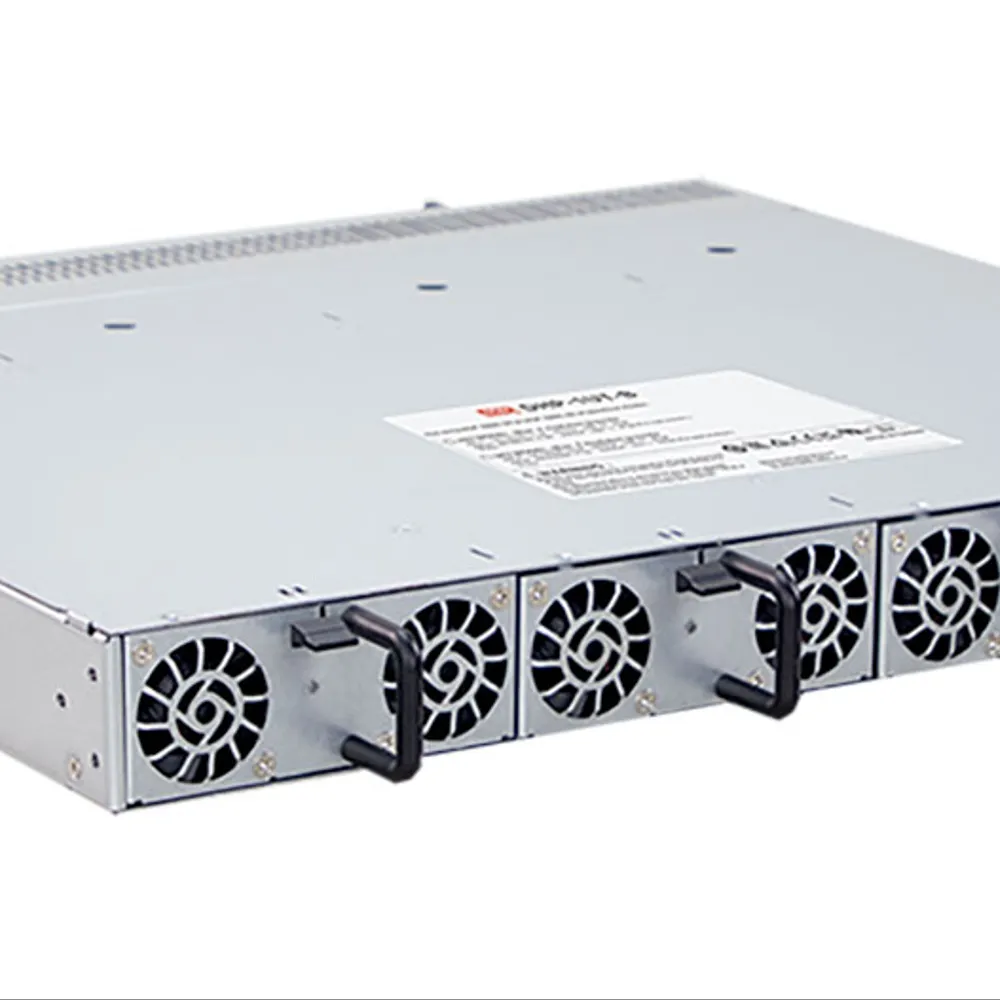

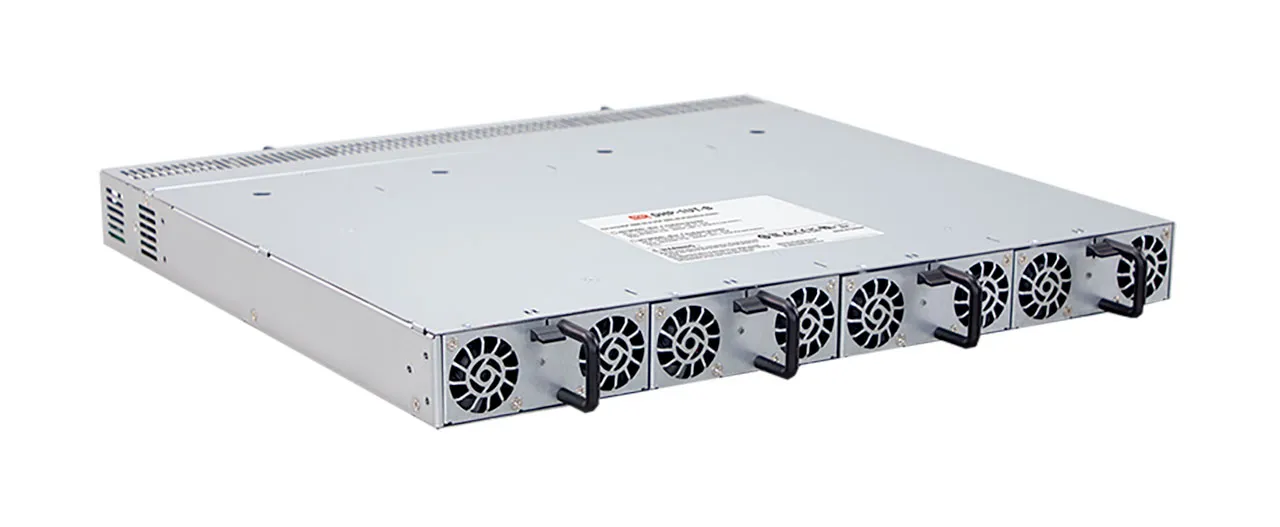

1U Profile 19" Rack Shelf for SELV NCP-3200 Distributed Power or Charging System
Features
- DHP-1UT-B is designed to be used with SELV (Safety Extra Low Voltage) and is only compatible with NCP-3200-24/48
- Fitting four 3200W modules up to 12800W with active current sharing
- Size: 15.75"L x 19"W x 1.73"H (400 x 482.6 x 44 mm)
Overview
DHP-1UT-B rack power system and rack power charger system are the complete solution for the power distribution utilizing the rack configuration with the 1U low profile. Starting with a single unit of 3200W, NCP-3200 is a 2-in-1 rack-mounted switching power supply and battery charger. With active current sharing function, up to 12800W is able to be provided by one stack of the 19" rack mountable shelf DHP-1UT-B, with either rectifier or charger, and maximum 19" rack mountable shelf that can be connected in parallel is ten.
Applications
- Check out MEAN WELL's System Power Solutions
- Distributed power architecture system
- Wireless or telecommunication solutions
- Electric vehicle or marine charger station
- DC UPS or emergency backup
- Wastewater treatment system
- Electrolysis system
