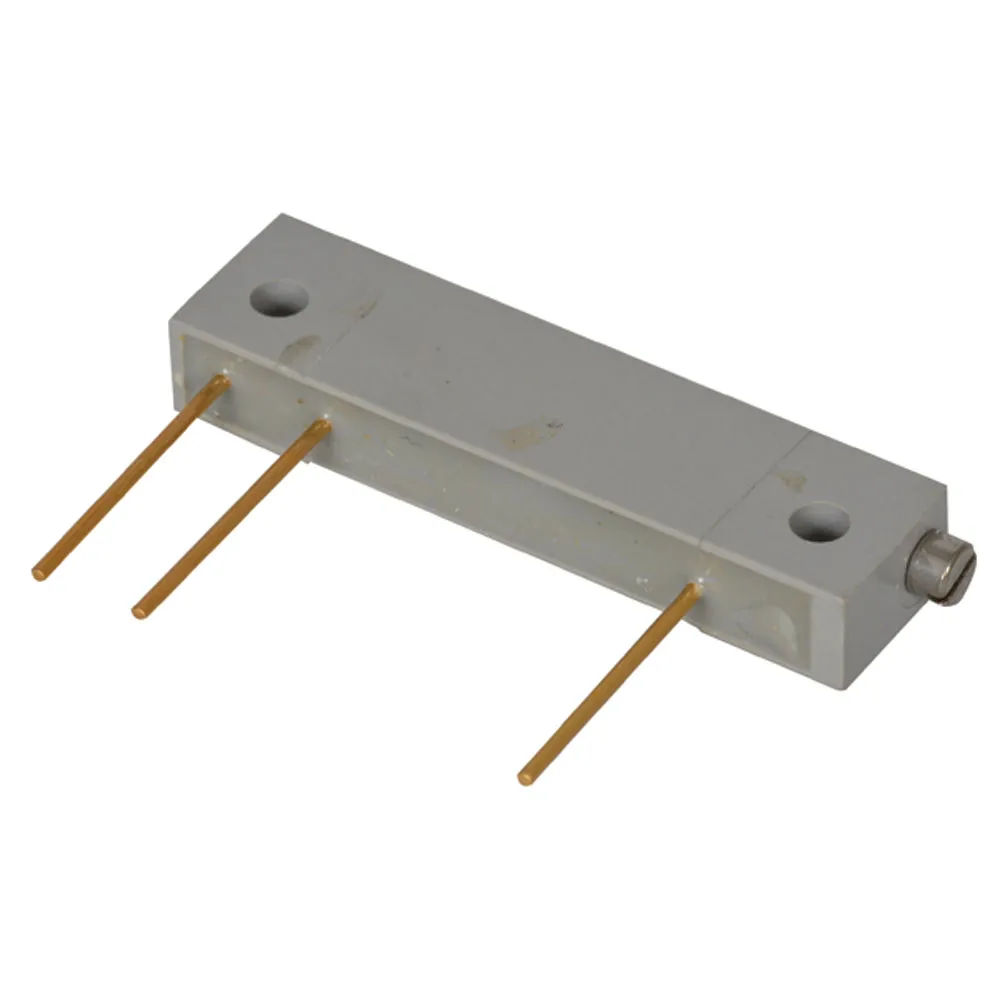

1K Ohms 1W Cermet Trimmer Potentiometer 22-Turn Side Adjust PC Pins Chassis Mount 10%

Jameco Part #:

Manufacturer #:

Product Price:

$1.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$1.950	-	-
10+	$1.750	0.20	10.26%
100+	$1.490	0.46	23.59%
500+	$1.250	0.70	35.9%
1000+	$0.990	0.96	49.23%

1K Ohms 1W Cermet Trimmer Potentiometer 22-Turn Side Adjust PC Pins Chassis Mount

Resistance: 1K Ohms
Power (Watts): 1W
Tolerance: ±10%
Temperature Coefficient: ±100ppm/°C
Number of Turns: 22
Adjustment Type: Side Adjustment
Resistive Material: Cermet
Mounting Type: Chassis Mount
Termination Style: PC Pins
Size / Dimension: Rectangular - 0.315" x 0.190" Face x 1.250" L (8.00mm x 4.83mm x 31.75mm)

Product Type:Trimmer

Manufacturer Series:3059

Family:P

Width:4.95 mm

Height:8.13 mm

Length:31.75 mm

Shaft Diameter:2.79 mm

Mounting:Through Hole

Maximum Operating Temperature:150°C

Minimum Operating Temperature:-65°C

Taper:Linear

Resistive Element Material:Cermet

Actuator Orientation:Side

Resistance:1 KOhm

Number of Turns:22

Resistance (Ohm):1000

Tolerance:10%

Temperature Coefficient:100 ppm/°C

Technology:Sealed

Power Rating:1 W

Termination Style:Pins

Actuator Type:Side Slot
