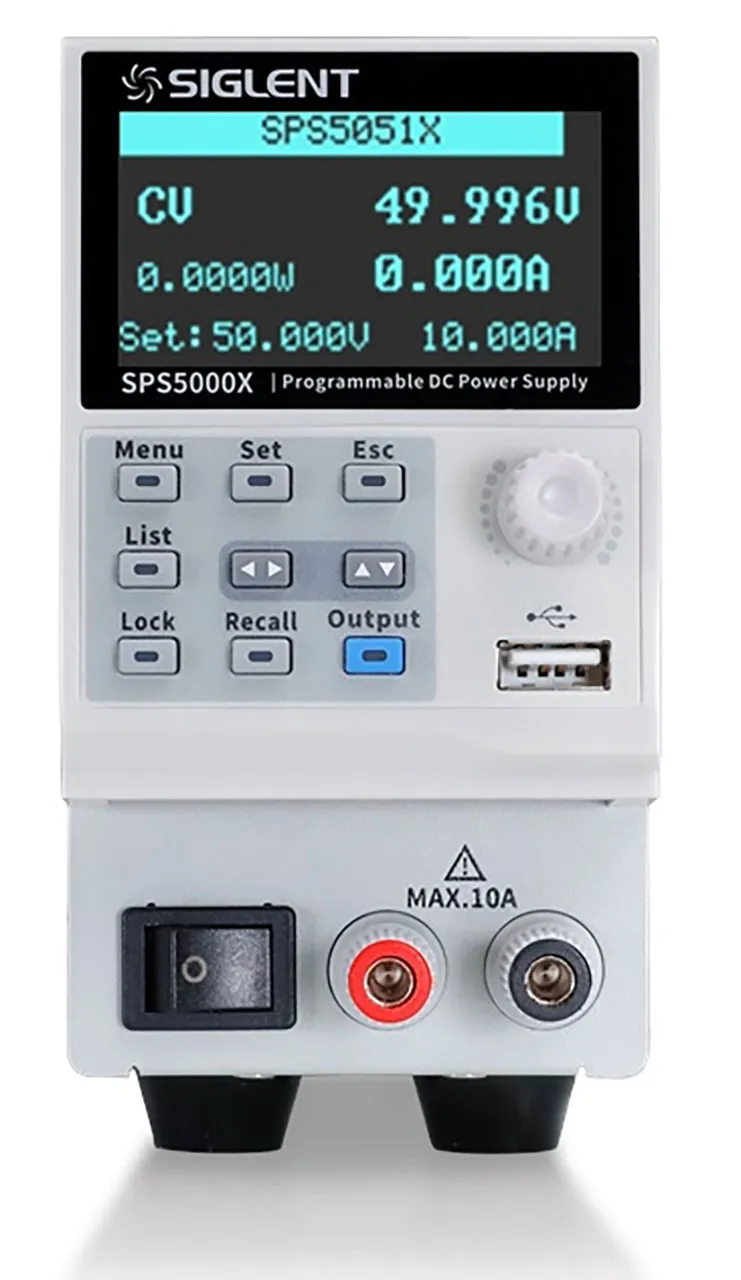

1CH Programmable Switching DC Benchtop Power Supply 50V 10A 180W

Features

• Rated Output Voltage: 50 VDC
• Rated Output Power: 180 W
• Wide range of output voltage and current, high efficiency power supply
• CV, CC priority mode selection for better protection of equipment under test
• Configurable three-channel timing output
• 170° wide viewing angle 2.4" OLED screen, and remote web control

Specifications

• Output: 1 channel, 50V / 10A / 180W
• Resolution: 1 mV/1 mA
• Setting Accuracy: voltage:0.1% ±10 mV; current:0.1% ±10 mA
• Readback accuracy: voltage:0.1% ±20 mV; current:0.1% ±20 mA
• Display: 2.4-inch OLED Screen
• C.V. Mode:
  • Line Regulation: 3 mV
  • Load Regulation: 10 mV
  • Ripple & Noise: 45 mVp-p; 5 mV rms
• C.C. Mode:
  • Line Regulation: 8 mA
  • Load Regulation: 10 mA
  • Ripple & Noise: 10 mA rms
• Max. units in series: 2
• Max. units in parallel: 3
• List Function: Up to 50 steps, edit locally or import from USB memory
