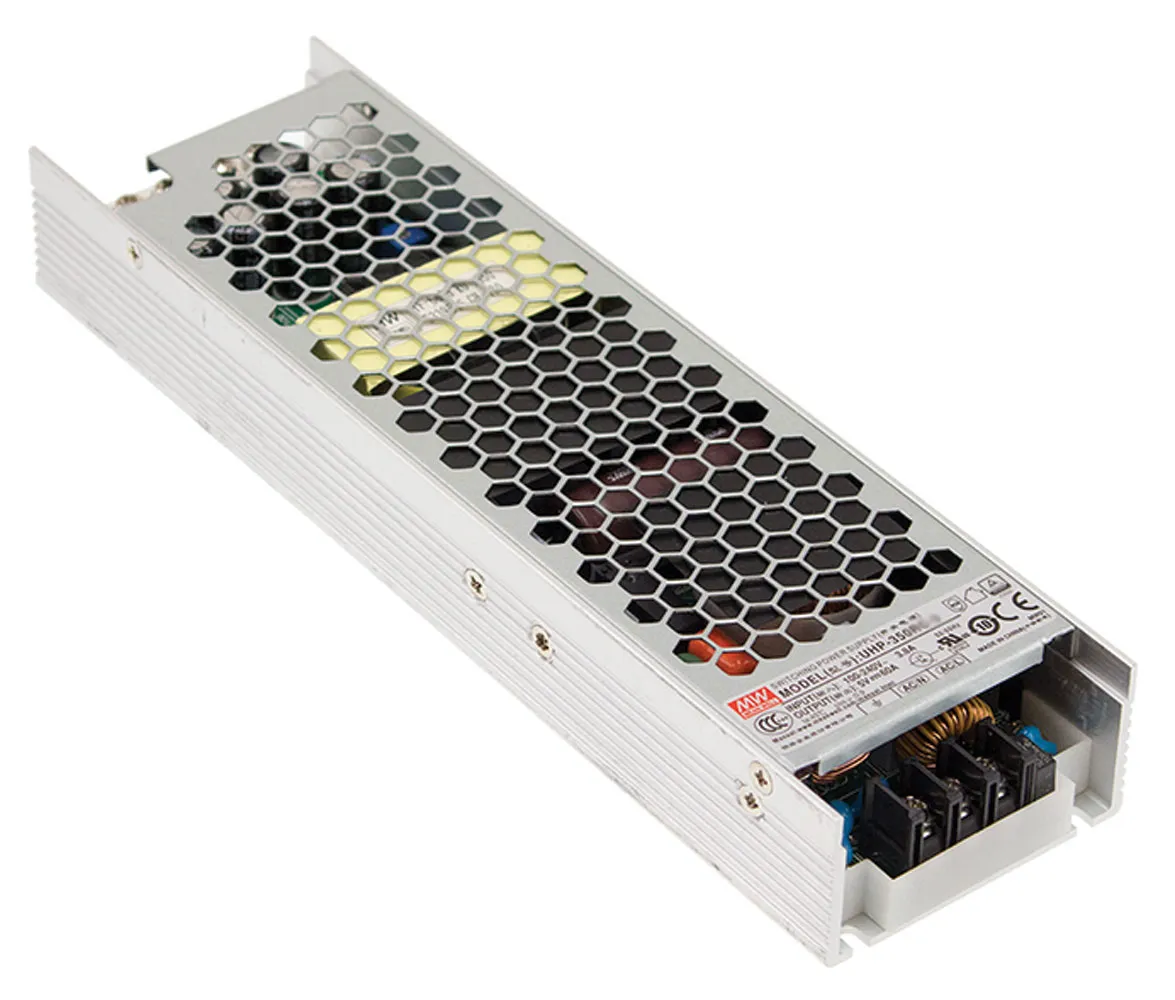

198W 3.3V 60A Slim Type Switching Power Supply with PFC, DC OK Signal & Redundant Function

3.3 Volts DC @ 60 AmpsFind out more about MEAN WELL Mini/Micro LED display power solutions and the low-profile, miniaturized conduction cooling power supply family.

Features

  • DC OK active signal and redundant function
  • Slim Low profile (31mm)
  • Fanless design, 198W convection
  • Withstand 300VAC surge input for 5 seconds
  • Built-in active PFC function
  • 150% peak load capability (100ms)
  • -30 to +70°C working temperature
  • Protections: Short circuit, Overload, Over voltage, Over temperature
  • Operating altitude up to 5000 meter (Note.5 on datasheet)
  • LED indicator for power on
  • 3 years warranty

Specifications

  • Size:
  • Ripple & Noise: 150 mVp-p
  • Load Regulation: ±1.0%
  • Line Regulation: ±0.5%
  • Efficiency: 88.5%
  • Agency approvals: UL, cUL, TUV, CB, CE, CCC

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipment or apparatus
  • Household appliances
  • LED display applications

Overview

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:UHP-350

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, TUV, UL, IEC/EN 61558-1

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.22 in.
Width:2.44 in.
Length:8.66 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:4 A

Output

Number of Outputs:1
Output Voltage (Channel 1):3.3 VDC
Output Voltage:3.3 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):60 A
Output Current:60 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
Efficiency:88.5%
Power Rating:198 W
,
