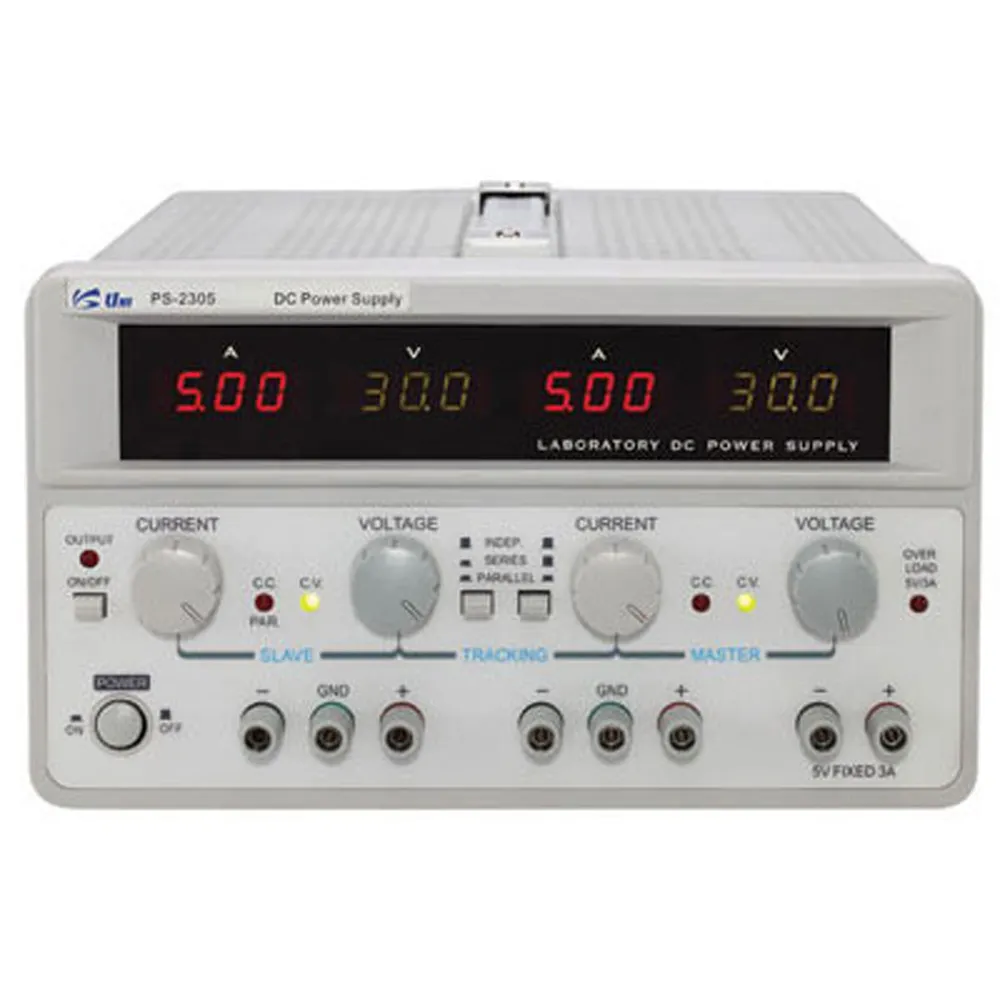

195W Triple Output AC/DC Switching Benchtop Power Supply

Channel 1: 0-30 Volts @ 0-3 Amps
Channel 2: 0-30 Volts @ 0-3 Amps
Channel 3: 5 Volts @ 3 Amps

Features

  • Two independent adjustable outputs; One fixed output
  • 4 digital panel meters
  • Preset current limit point
  • Constant voltage, constant current, low ripple and noise, low temperature drift
  • Over-current and overload protection
  • Output standby function
  • Multi-tune potentiometer, easy to set up voltage
  • In tracking mode, two outputs are automatically connected in series or parallel without extra cables
  • In series mode, the instrument can be connected as positive and negative supplies
  • Input: 110/220VAC @ 50/60Hz
  • Size: 9.6"W x 13.6"D x 5.5"H (245mm(W) x 345mm(D) x 140mm (H))
  • Weight: 17.6 lbs. (8kg)

Product Identification

Product Type:Benchtop Power Supply

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Weight:17.6 lbs.
Depth:13.6 in.
Height:5.5 in.
Width:9.6 in.

Input

Input Frequency:50Hz, 60Hz
Input Voltage:115 VAC, 220 VAC

Output

Number of Outputs:3
Output Current:0 A to 3 A
Output Voltage:0 VDC to 30 VDC
Output Connector Type:Banana Jacks

Features

Type of Displays:Digital LCD
Power Rating:195 W
,
