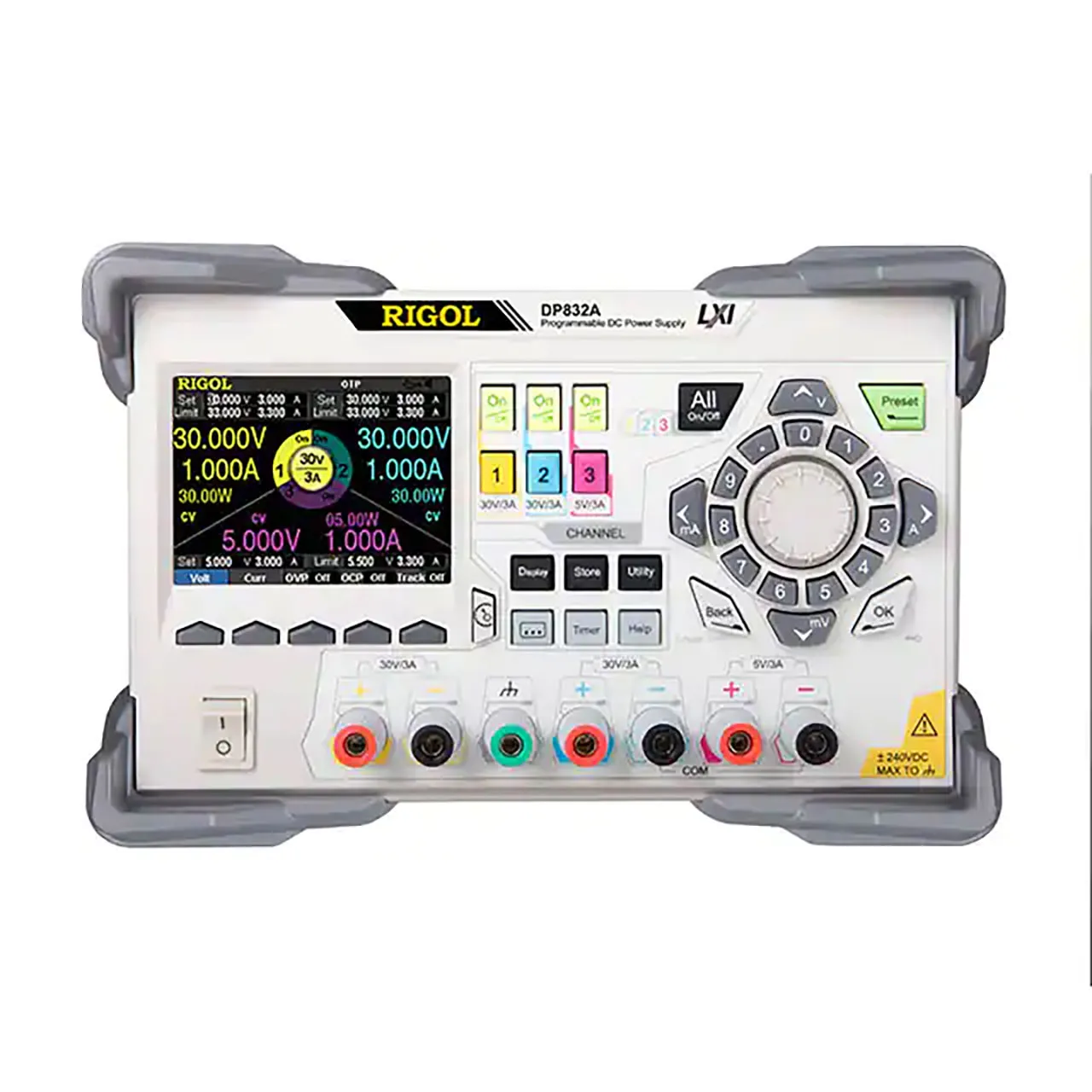

195W High Performance 3 Channel Benchtop Linear DC Power Supply 0-30V 3A and 0-5V 3A with Enhanced Accuracy
Specifications
- Series: DP800
- Type: Bench (AC to DC)
- Voltage - Supply: 100/115/230VAC
- Voltage - Output: 0 to 30V (CH1 & CH2), 0 to 5V (CH3)
- Current - Output: 0 to 3A
- Display Type: LCD
- Number of Outputs: 3
- Size / Dimension: 16.457" L x 9.409" W x 6.181" H (418 mm x 239 mm x 157 mm)
- Power (Watts): 195 W
- Accuracy - Voltmeter; Ammeter: 0.05% + 20 mV; 0.2% + 10 mA
- Voltage Regulation - Line: 0.01% + 2mV
- Voltage Regulation - Load: 0.01% + 2 mV
- Current Regulation - Line: 0.01% + 250 µA
- Current Regulation - Load: 0.01% + 250 µA
- Ripple: 0.35 mV rms, 2mV p-p
Product Identification
Product Type:Benchtop Power Supply
Manufacturer Series:ValuePro
Compliance
RoHS Status:ROHS Compliant
Dimensions & Appearance
Weight:23 lbs.
Depth:16.5 in.
Height:6.2 in.
Width:9.4 in.
Input
Input Frequency:50Hz, 60Hz
Input Voltage:120 VAC, 220 VAC
Output
Number of Outputs:3
Output Current:0 A to 3 A
Output Voltage:0 VDC to 30 VDC, 5 VDC
Output Connector Type:Banana Jacks
Features
Type of Displays:Digital LCD
Power Rating:195 W
