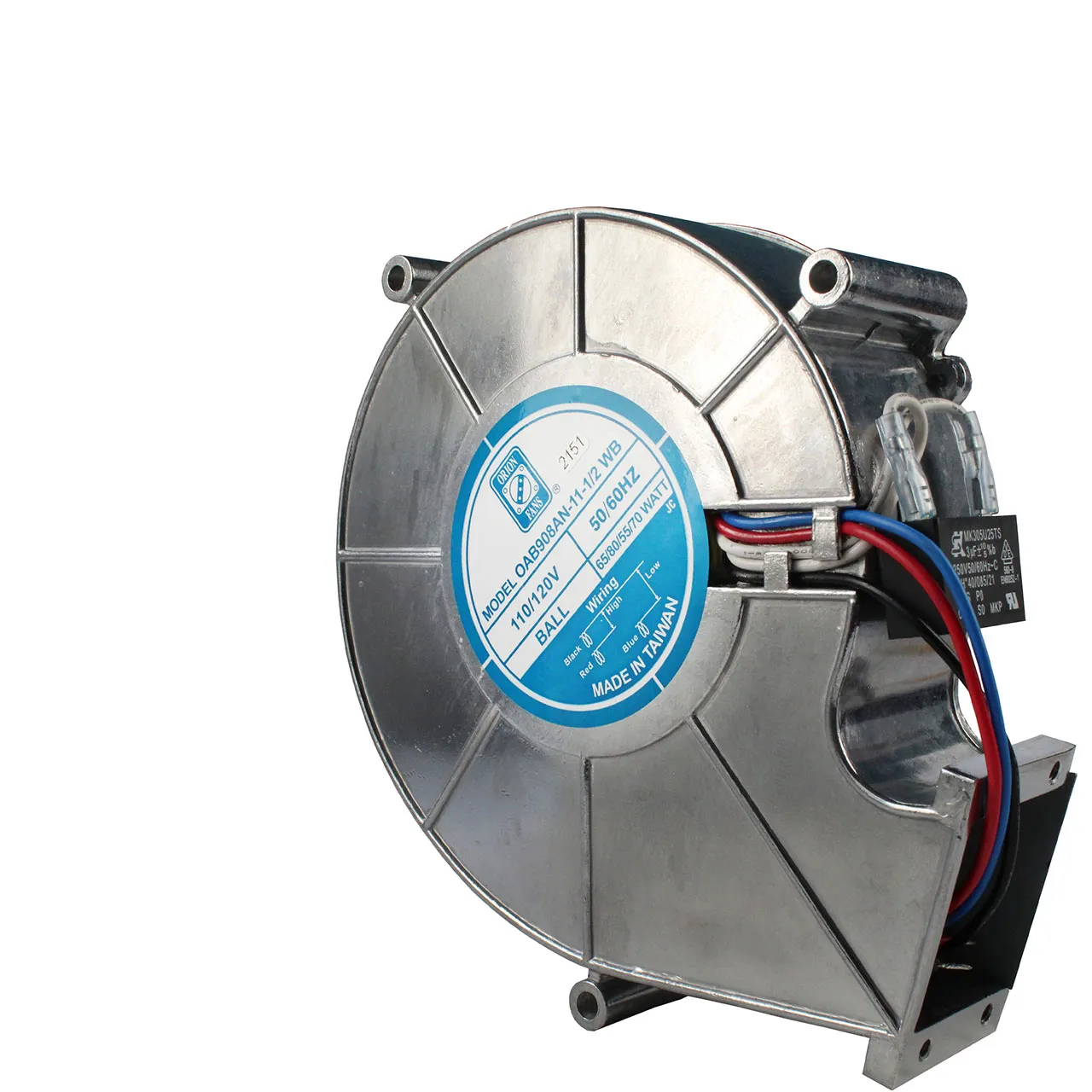

183mm x 190mm x 70mm Blower Fan 115 VAC Dual Ball Bearing 100CFM 68dBA 12" Wires

Orion Fans

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$99.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$99.950	-	-
5+	$91.250	8.70	8.7%
25+	$83.950	16.00	16.01%

Features

Voltage Rating: 115 VAC
Height: 190mm
Width: 183mm
Depth: 70mm
Air Flow (CFM): 100
Bearing: Dual Ball
Current Rating: 696 mA
Power Rating: 80 W
Agency Approvals: UL, CUL
Noise (dBA): 68
Termination: 12" Wires
Product Type: 190mm x 183mm Blower Fan
Speed: 3100 rpm
Maximum Pressure: 1.8 in.
Additional Features: Aluminum Die Cast Shell, UL94V-0 Impeller
Motor Drive Type: Single Phase, Capacitor Induction, 2/4 Pole, Inner Rotor, Thermally Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Dual Ball bearing system of the blower fan is designed to operate up to 3100 rpm.
