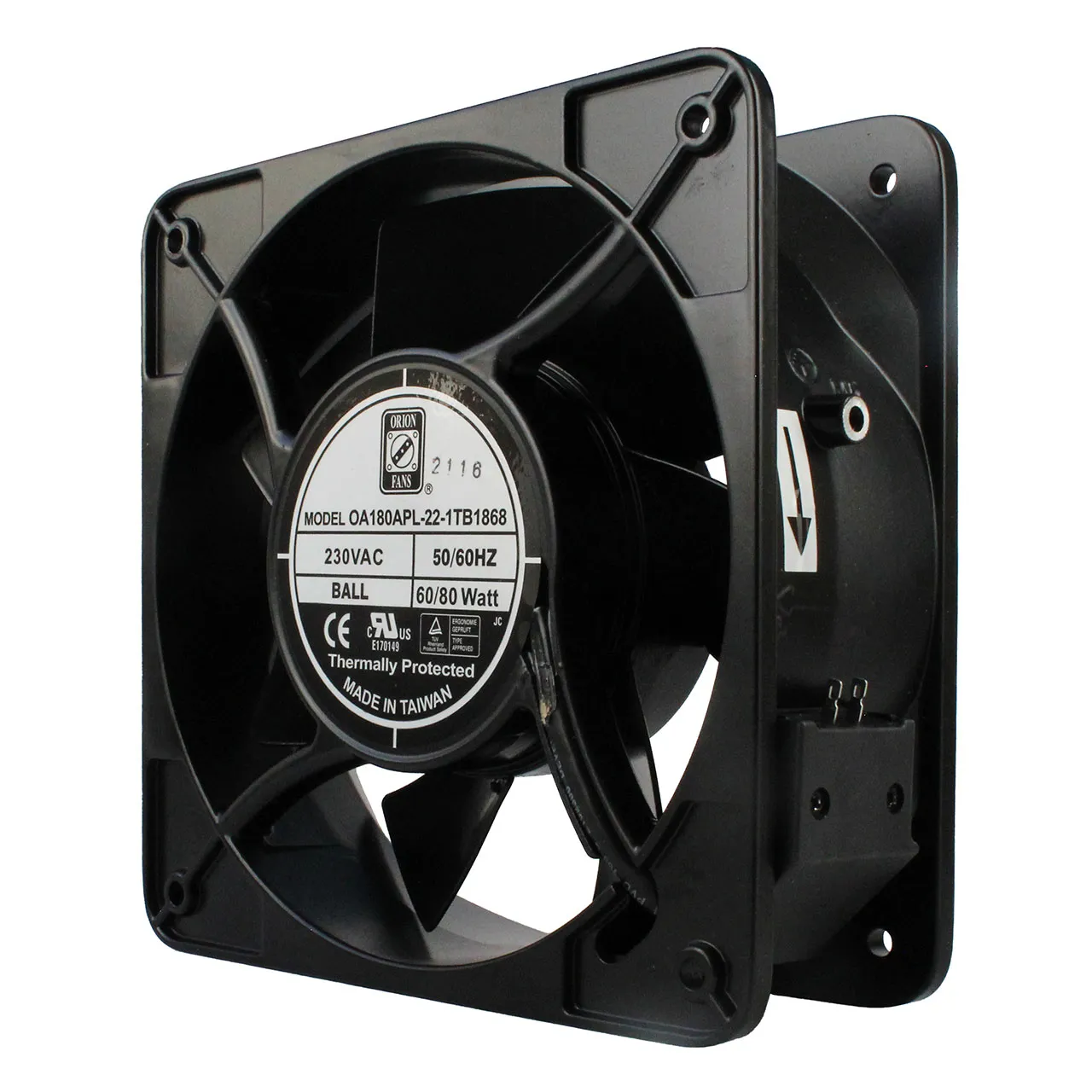

180 mm x 180 mm x 65 mm Tube Axial Fan 230 VAC Ball Bearing 210CFM 40dBA 12" Wires

Features

  • Voltage Rating: 230 VAC
  • Height: 180 mm
  • Width: 180 mm
  • Depth: 65 mm
  • Air Flow (CFM): 210
  • Bearing: Ball
  • Current Rating: 165 mA
  • Power Rating: 38 W
  • Agency Approvals: UL, CUL, TUV, CE
  • Noise (dBA): 40
  • Termination: 12" Wires
  • Product Type: 180mm x 180mm AC Fan
  • Speed: 1650 rpm
  • Maximum Pressure: 0.43 in.
  • Motor Drive Type: AC Capacitor Induction, Inner Rotor, Single-Phase, 2/4 Pole, Thermally Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 1650 rpm.

Product Identification

Product Type:AC Fan

Compliance

RoHS Status:ROHS Compliant
Compliance:Compliance Docs
Agency Approvals: CE, CUL, TUV, UL

Dimensions & Appearance

Depth:65 mm
Height:180 mm
Width:180 mm

Features

Bearing:Ball
Motor Drive Type:AC Capacitor Induction, Inner Rotor, Single-Phase, 2/4 Pole, Thermally Protected
Speed:1650 rpm
Maximum Pressure:0.43 in.
Noise (dBA):40
Air Flow (CFM):210
Termination:12" Wires
Voltage Rating:230 VAC
Power Rating:38 W
Current Rating:165 mA
,
