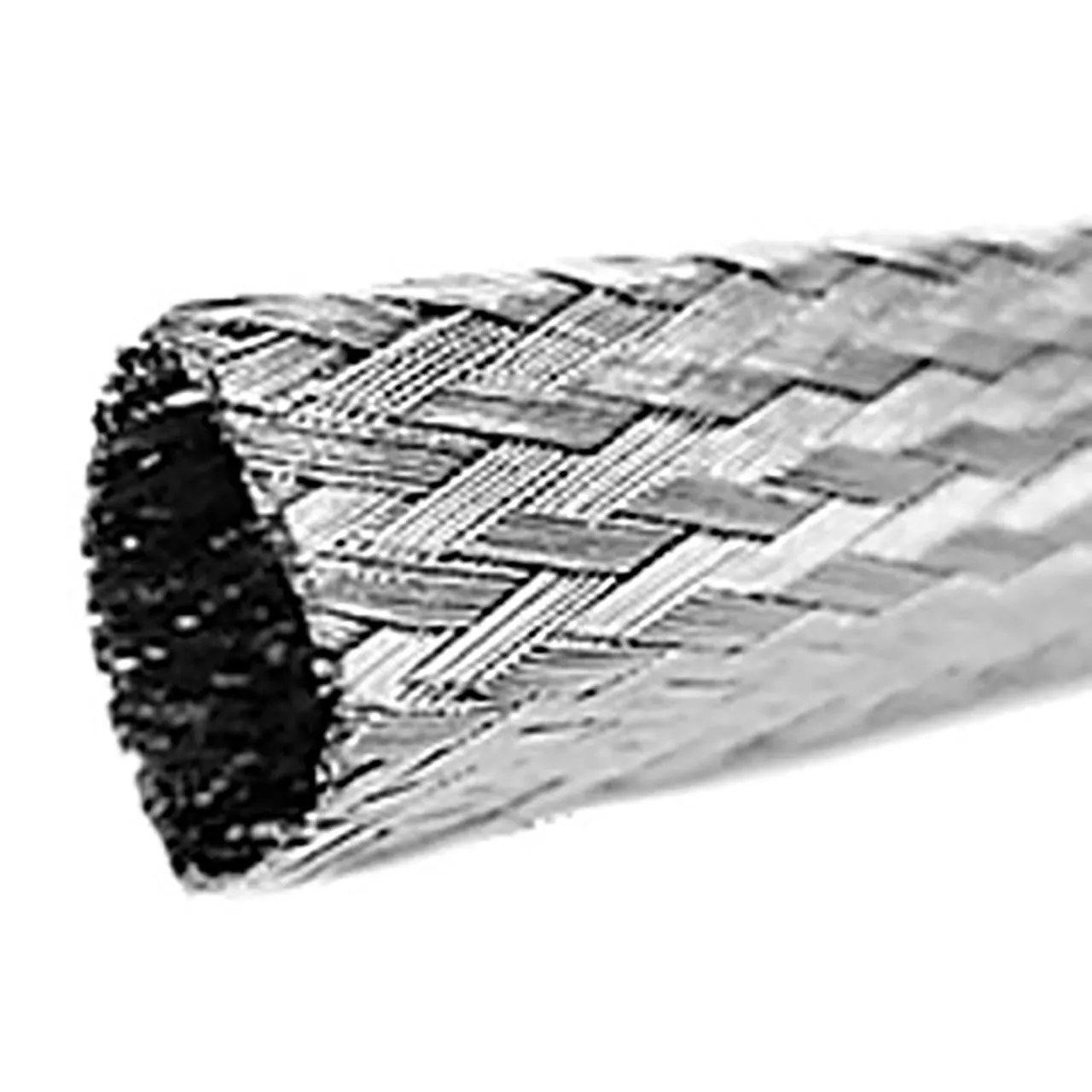

Flat Tinned Copper Braid 100 Foot Reel

Features

• Consolidated Electronic Wire & Cable PN: 1390-100
• Nominal Width: 1/8 in.
• Nominal Thickness: 0.020 in.
• Conductor Size: 36 Tinned Copper Wire AWG
• Number of Ends: 72
• Number of Carriers: 24
• Total Strands: 72 x 36
• Approx. Conductor Size: 18 AWG
• CMA: 2400
• Ampacity: 15 A
• Approvals: ASTM B-33, QQ-W-343 Type S, RoHS

Overview

A tight weave of multi-strand, soft drawn tinned copper wire is an ideal shielding material for short-run cables providing easy radial termination. In retrofit applications, it provides additional shielding efficiency. Tinned copper flat braid can be used as a ground strap because it provides an excellent, low resistance ground path.

Applications

• Shielding
• Flexible Ground Straps
