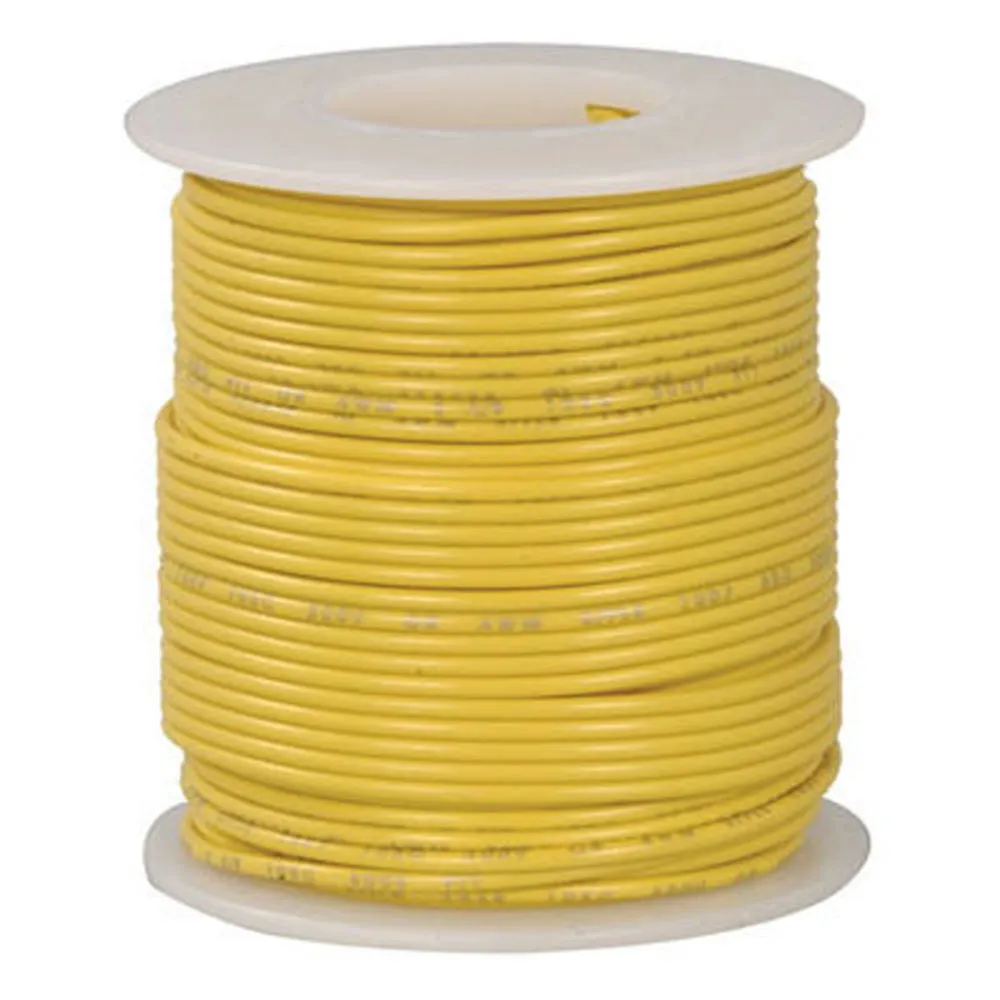

18 AWG Dual Rated Stranded Hook-up Wire 100' Yellow
Features
- Consolidated Electronic Wire & Cable PN: 822-4-100
- NOTICE: The dual rated wire replaced the single rated wire and supports a wider temperature range up to 105°C.
- UL rated: UL1007: -40°C to 80°C, 300V peak, and UL1569: -40 to 105C
- Tin-plated copper
- PVC insulation
- Stranded wire
- Color: Yellow
- 18 AWG wire gauge
- Nominal O.D.: 0.08"
- 16 strands of wire @ 30 AWG each
- Approvals: UL1007, UL1569, VW-1, CSA-TR-64 90°C, OSHA acceptable, RoHS
- Appliance Wiring Material (AWM) is UL recognized covering of insulated wire and cable intended for internal wiring of appliances, meters, panels, electrical and electronic equipment.
Product Identification
Additional Feature:Made in USA
Product Type:Stranded Hook-up Wire
Compliance
Agency Approvals: CSA VW-1 AWM I A/B FT-1, UL 1007, UL 1569
Dimensions & Appearance
Color:Yellow
Length:100 ft.
Packaging
Package:Reel
Features
Number of Conductors:1
Insulation Type:PVC
Conductor Strand:16 x 30
Wire Gauge (AWG):18
Voltage Rating:300 V
